Here you can find schematics for various audio filters typically found in synthesizers or used to process audio.

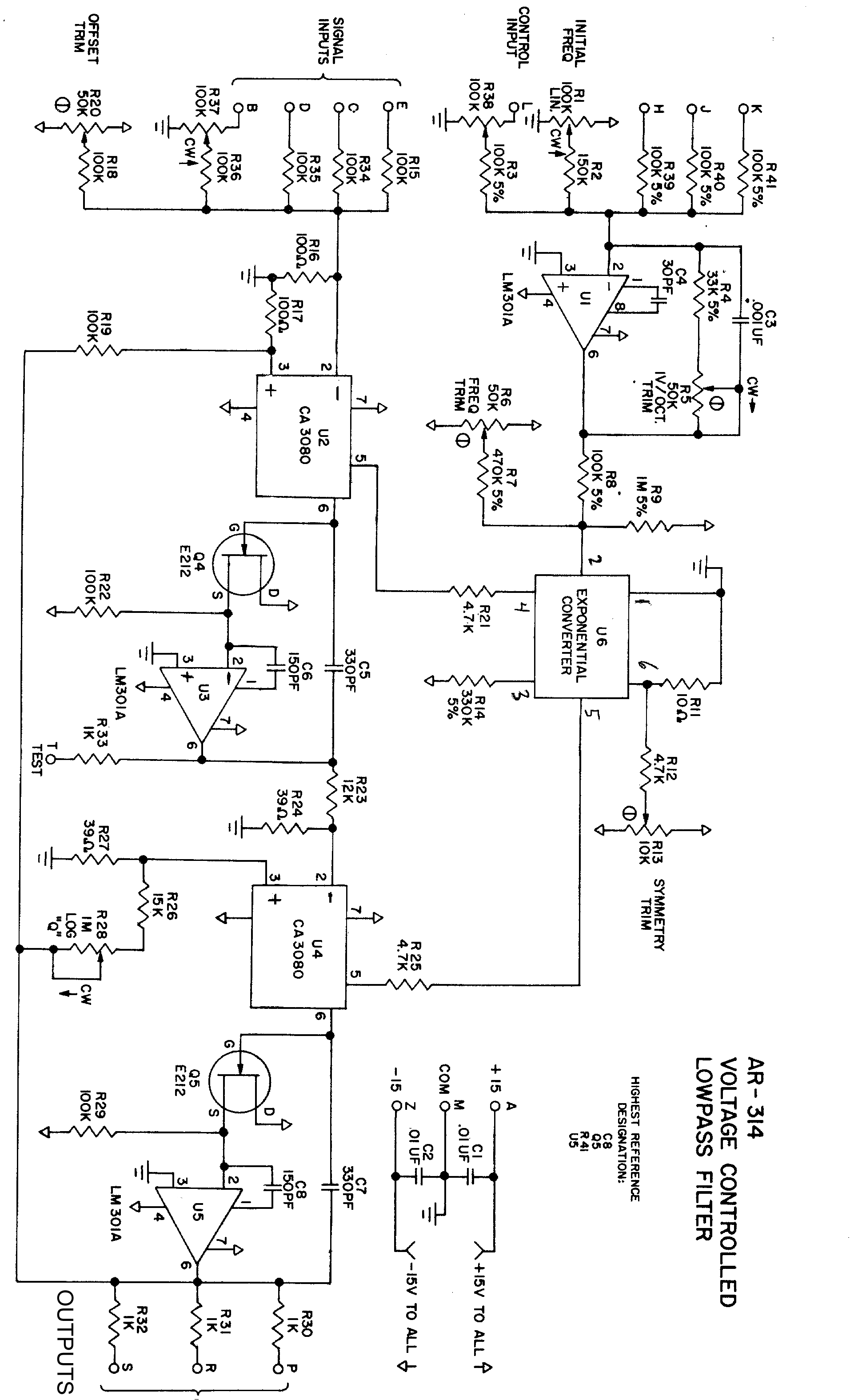

• Aries AR-314 Lowpass Filter

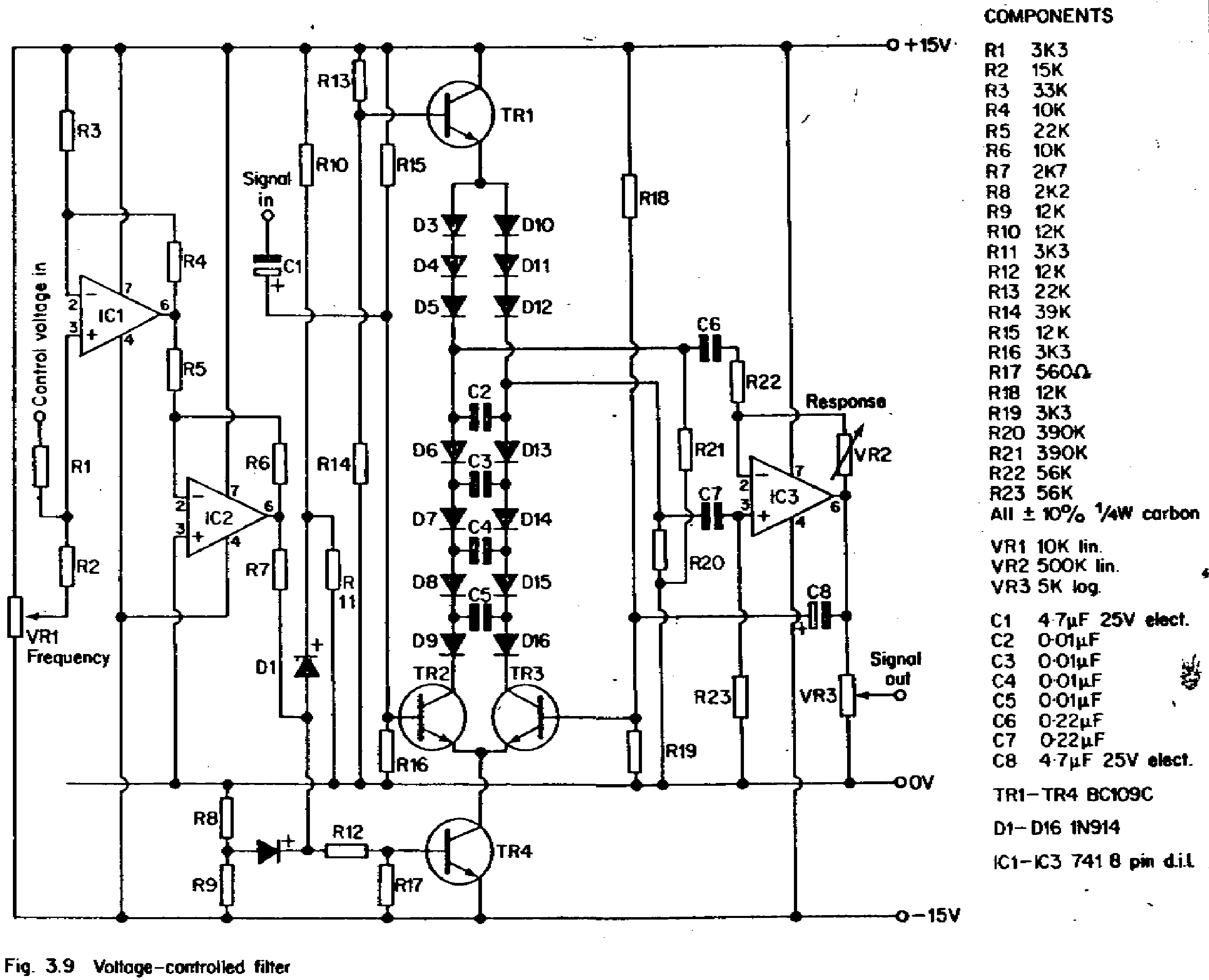

• Diode Ladder Filter - Similar to EMS

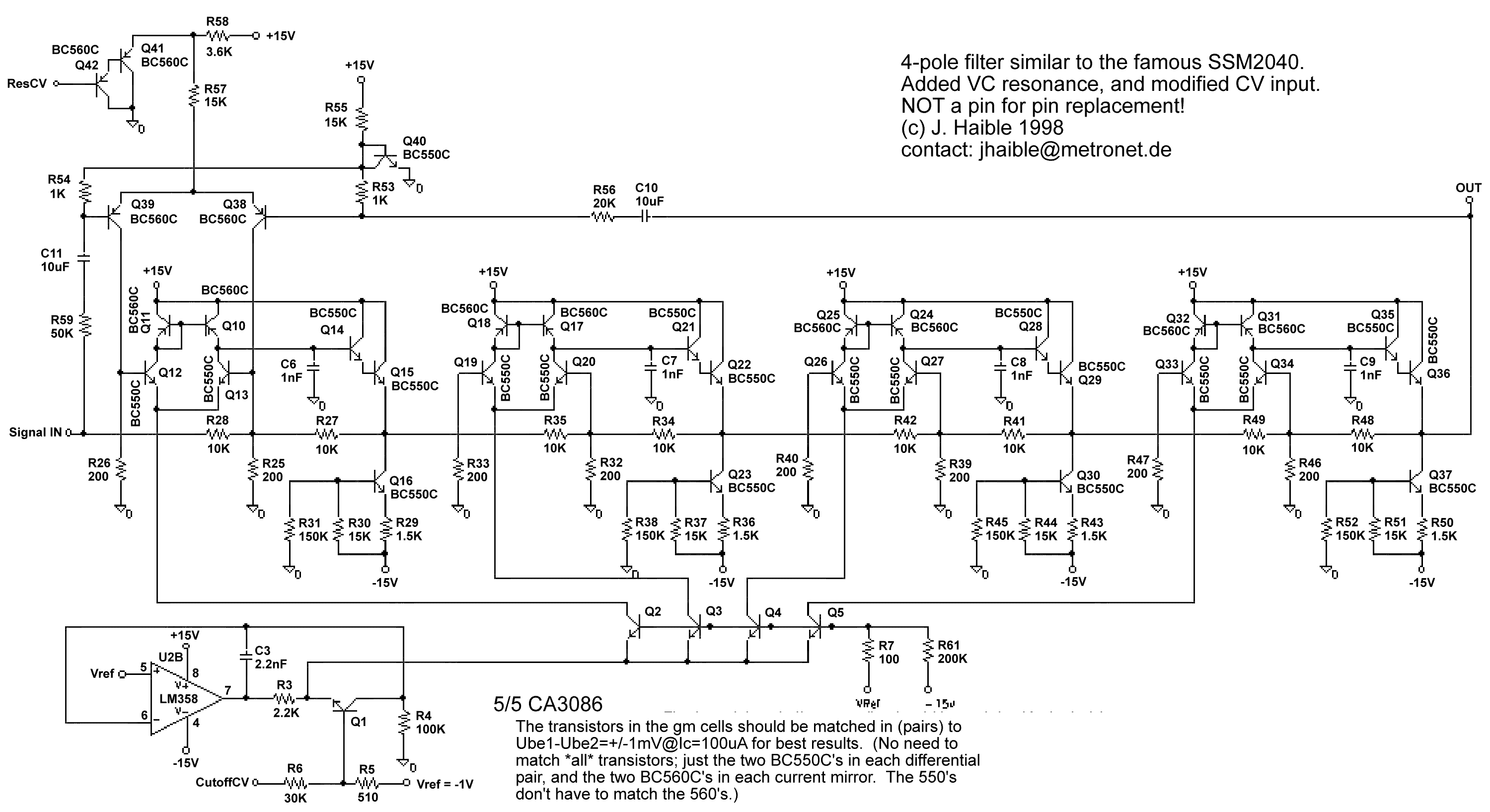

• JH's SSM2040 Filter Clone

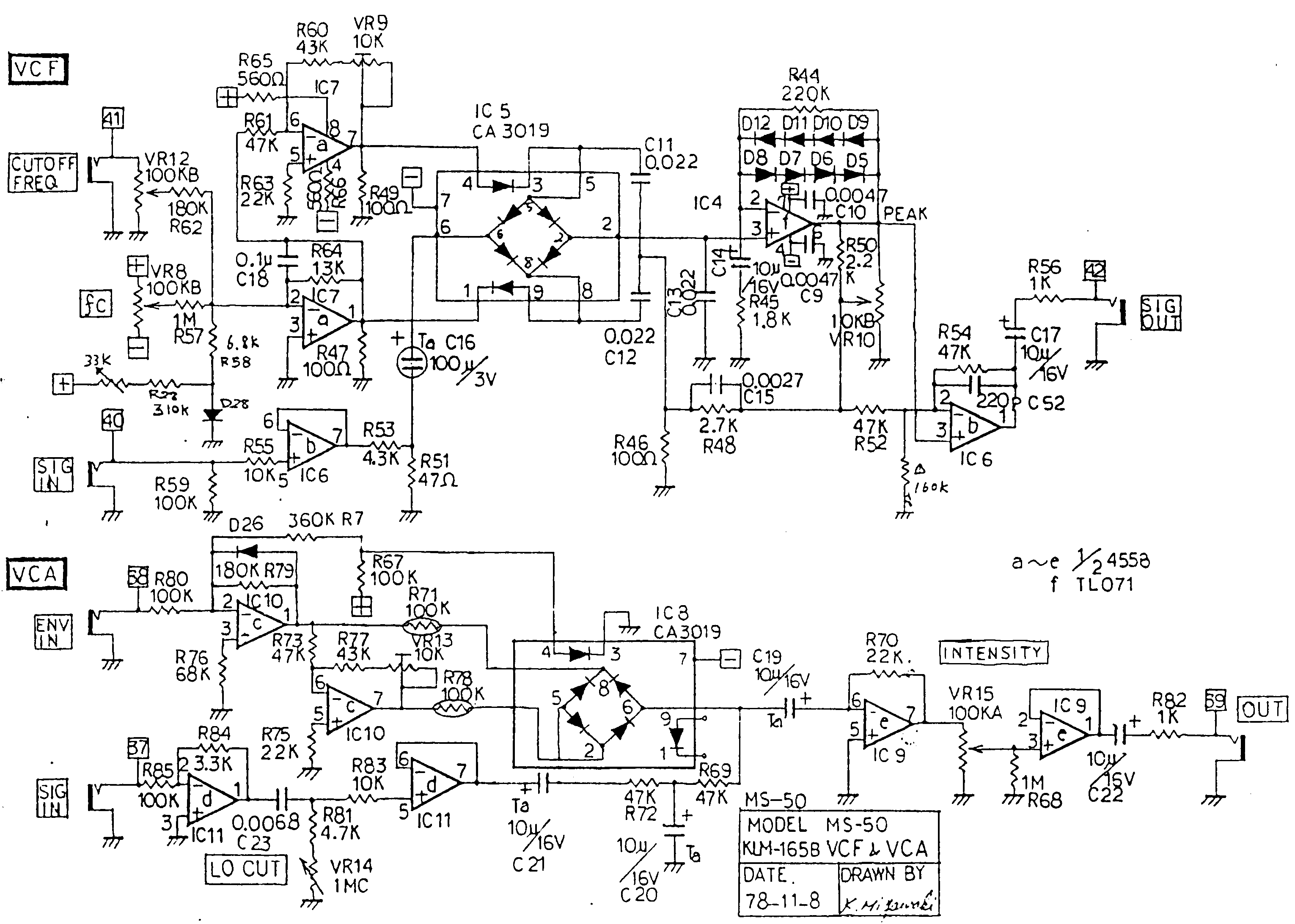

• Korg MS-50 Filter & VCA

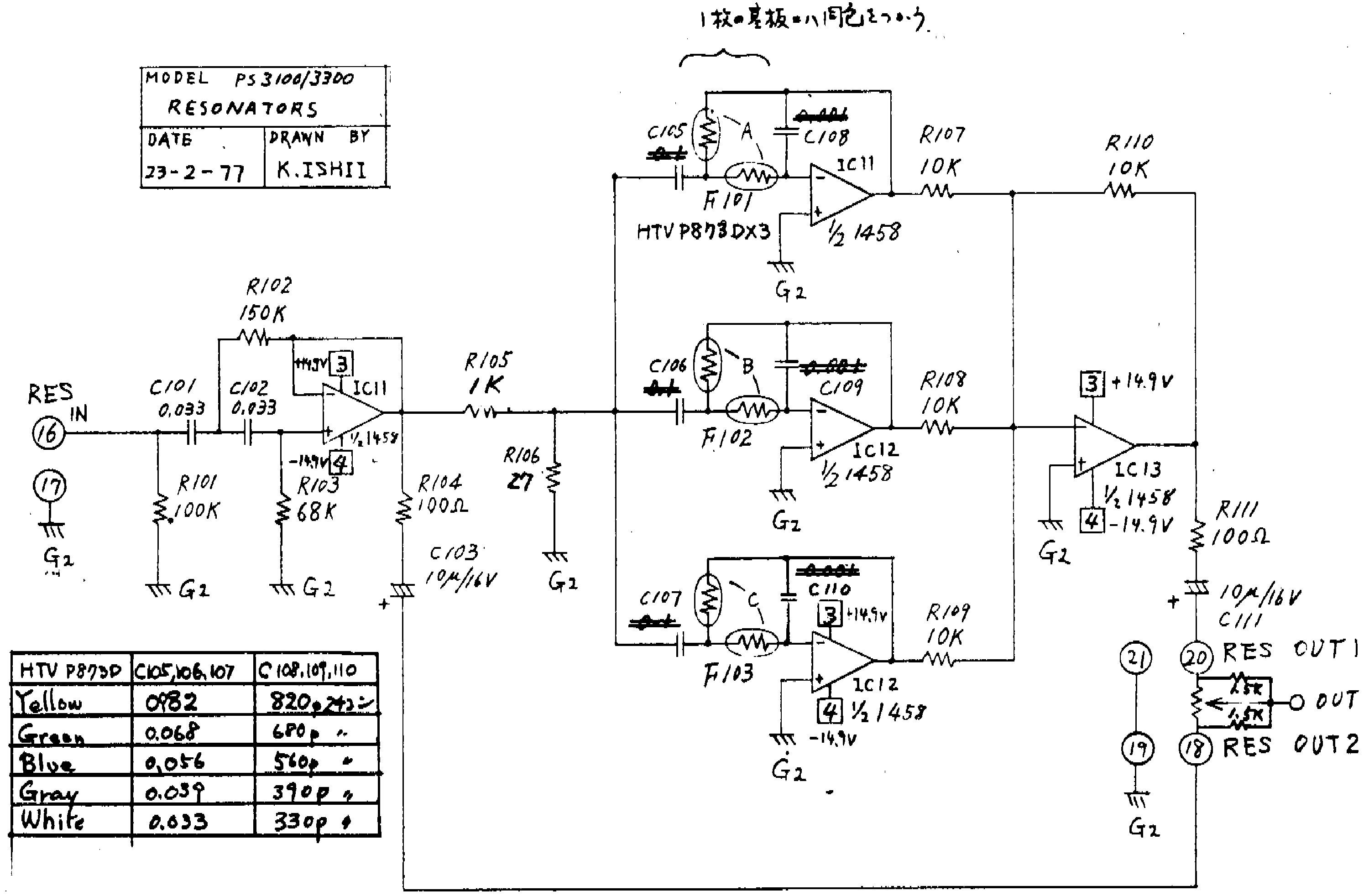

• Korg PS3100/3300 Resonator Part 1

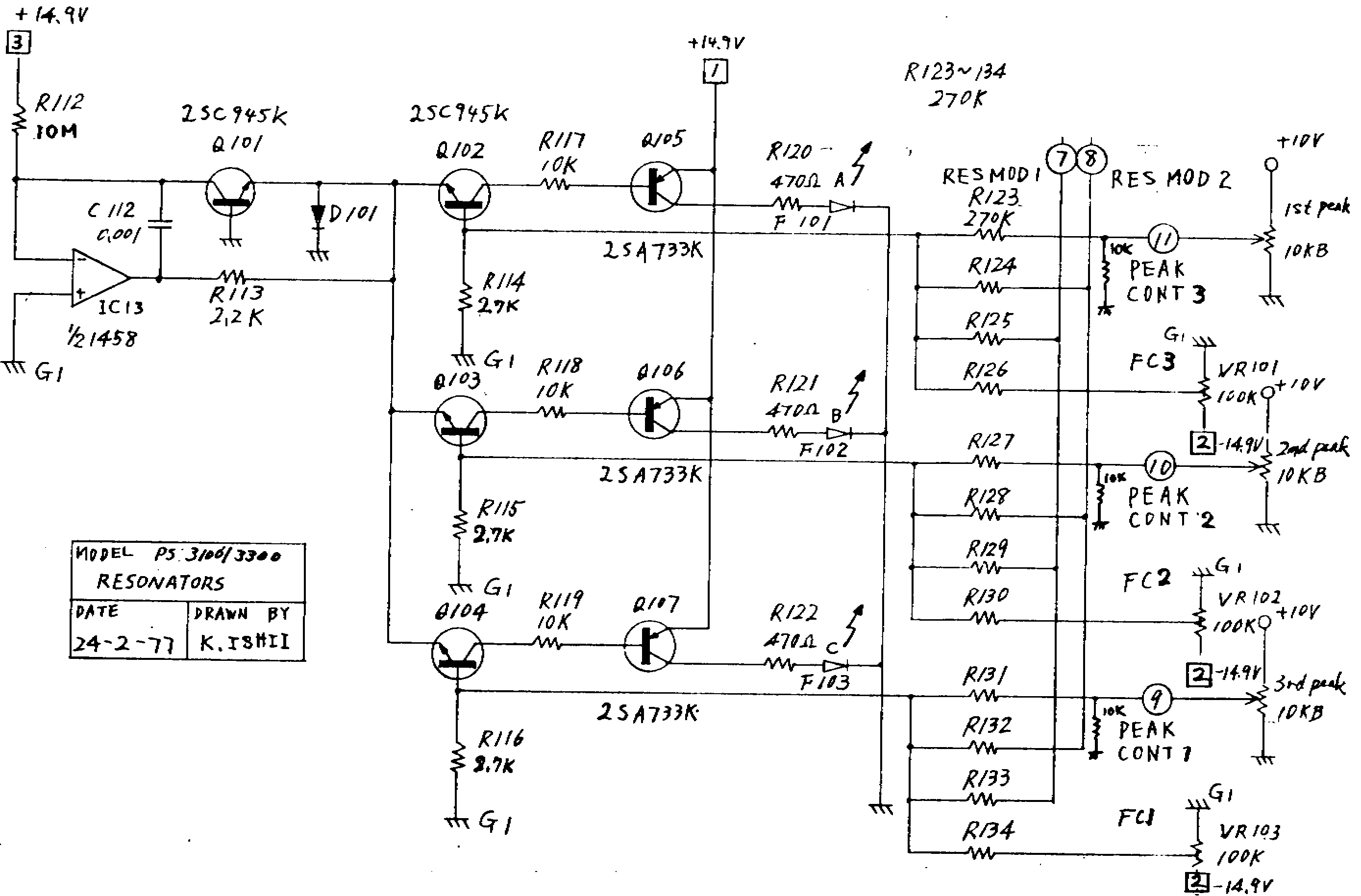

• Korg PS3100/3300 Resonator Part 2

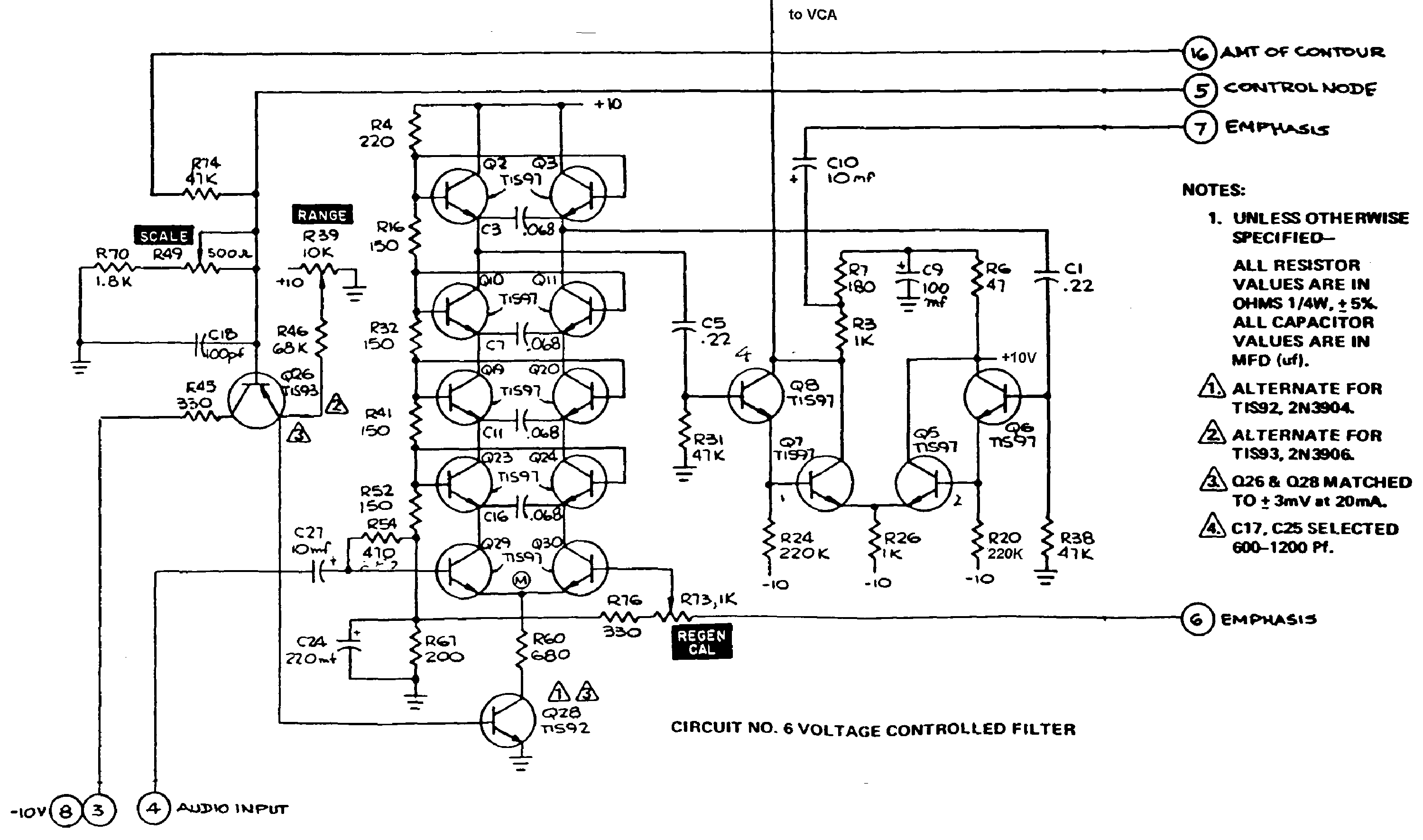

• Moog Minimoog Filter
• Oakley Sound Systems Filter Box
• Tau 1010 Ladder Filter - PDF
