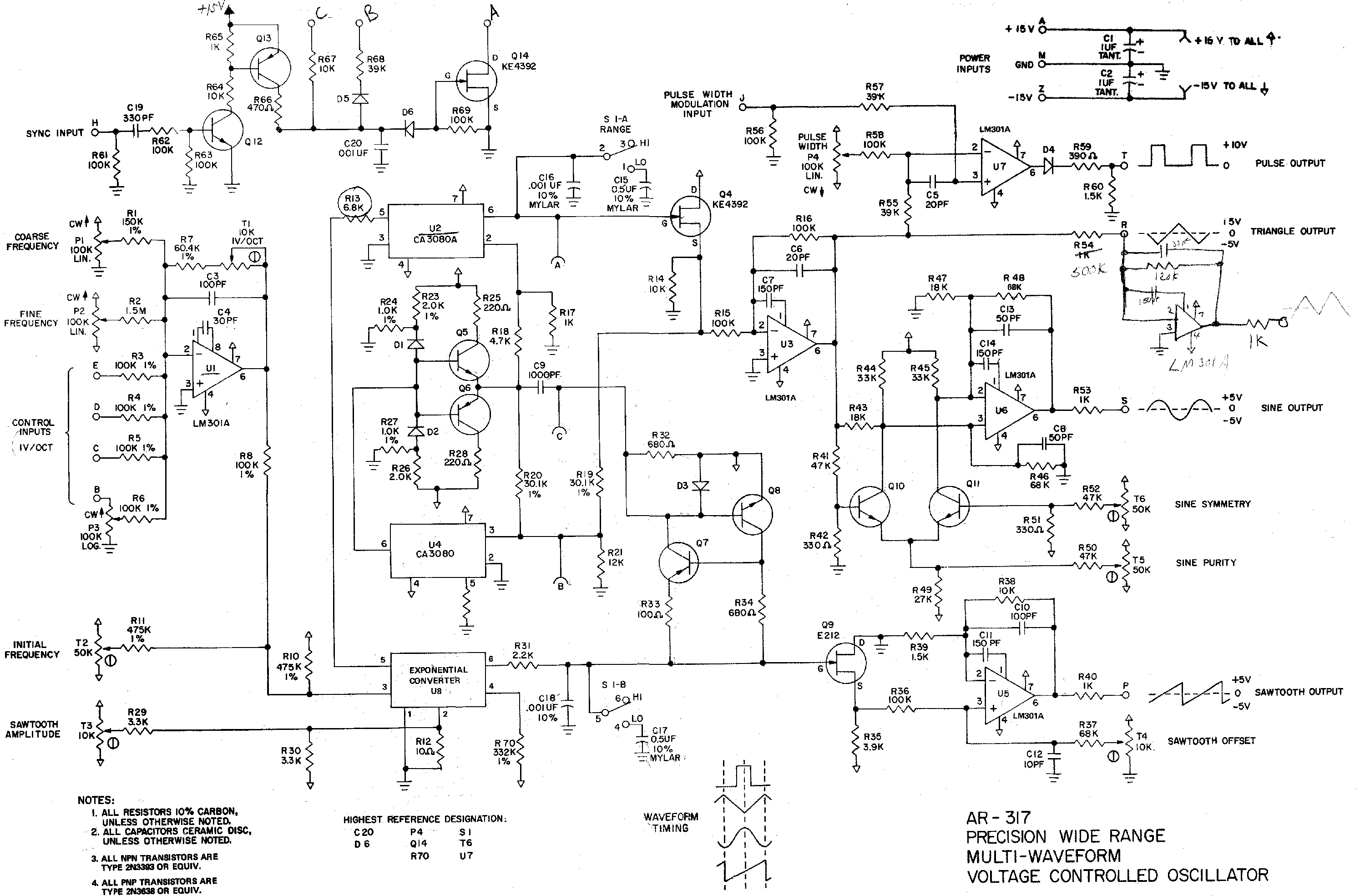

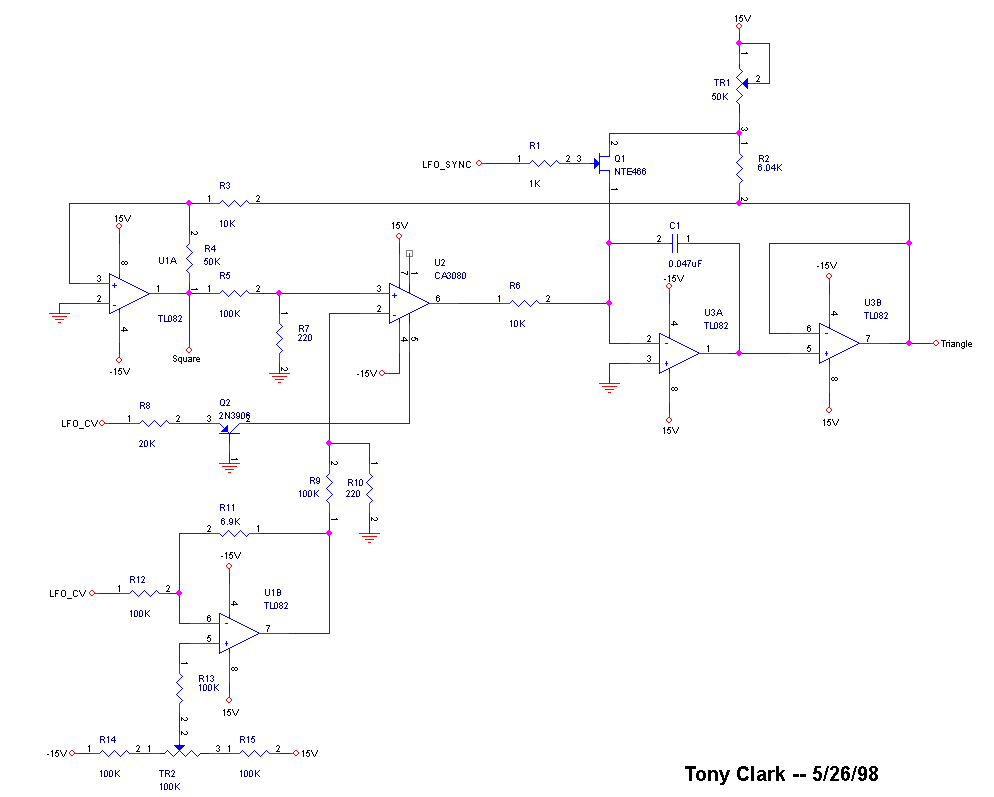

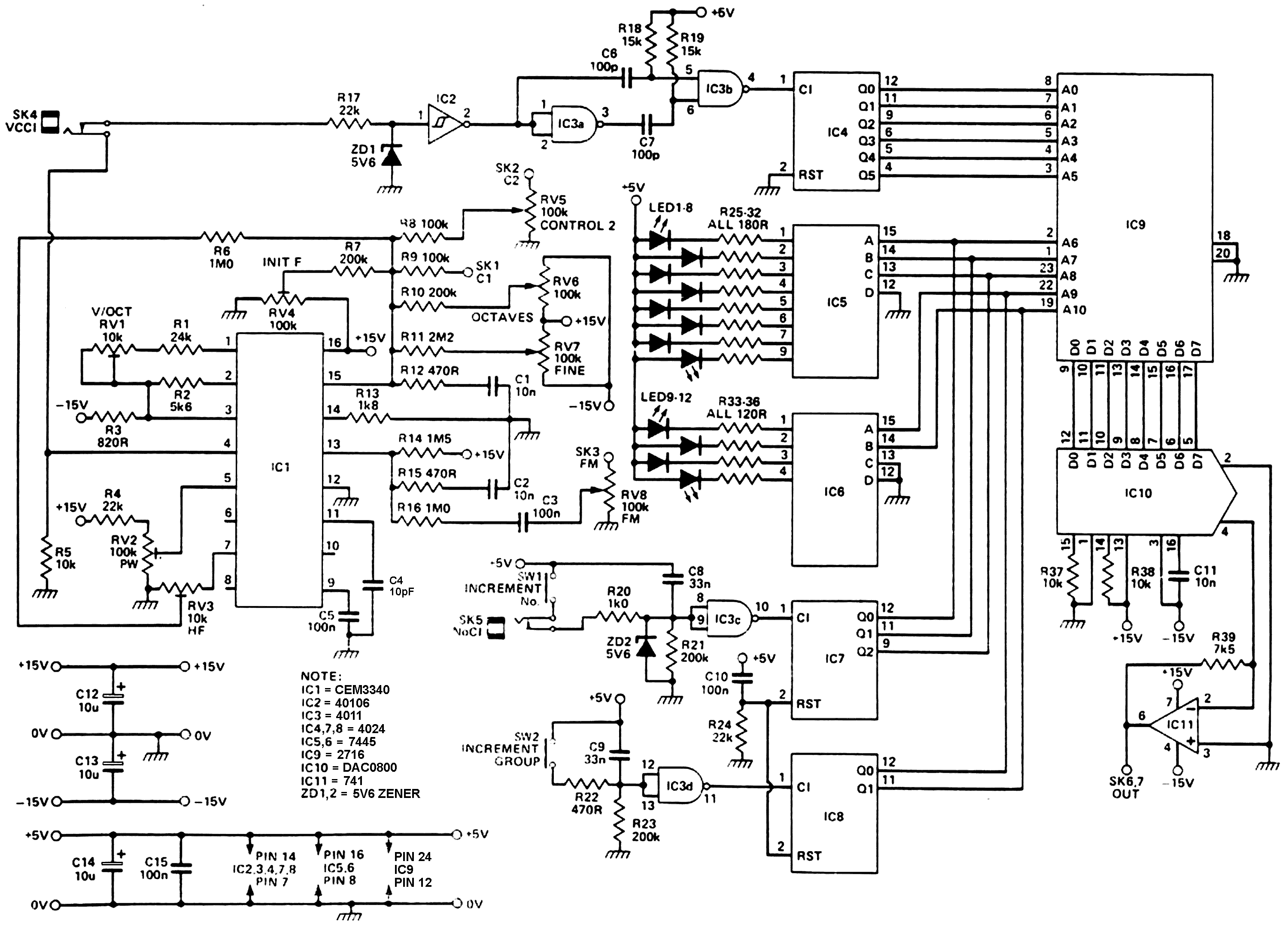

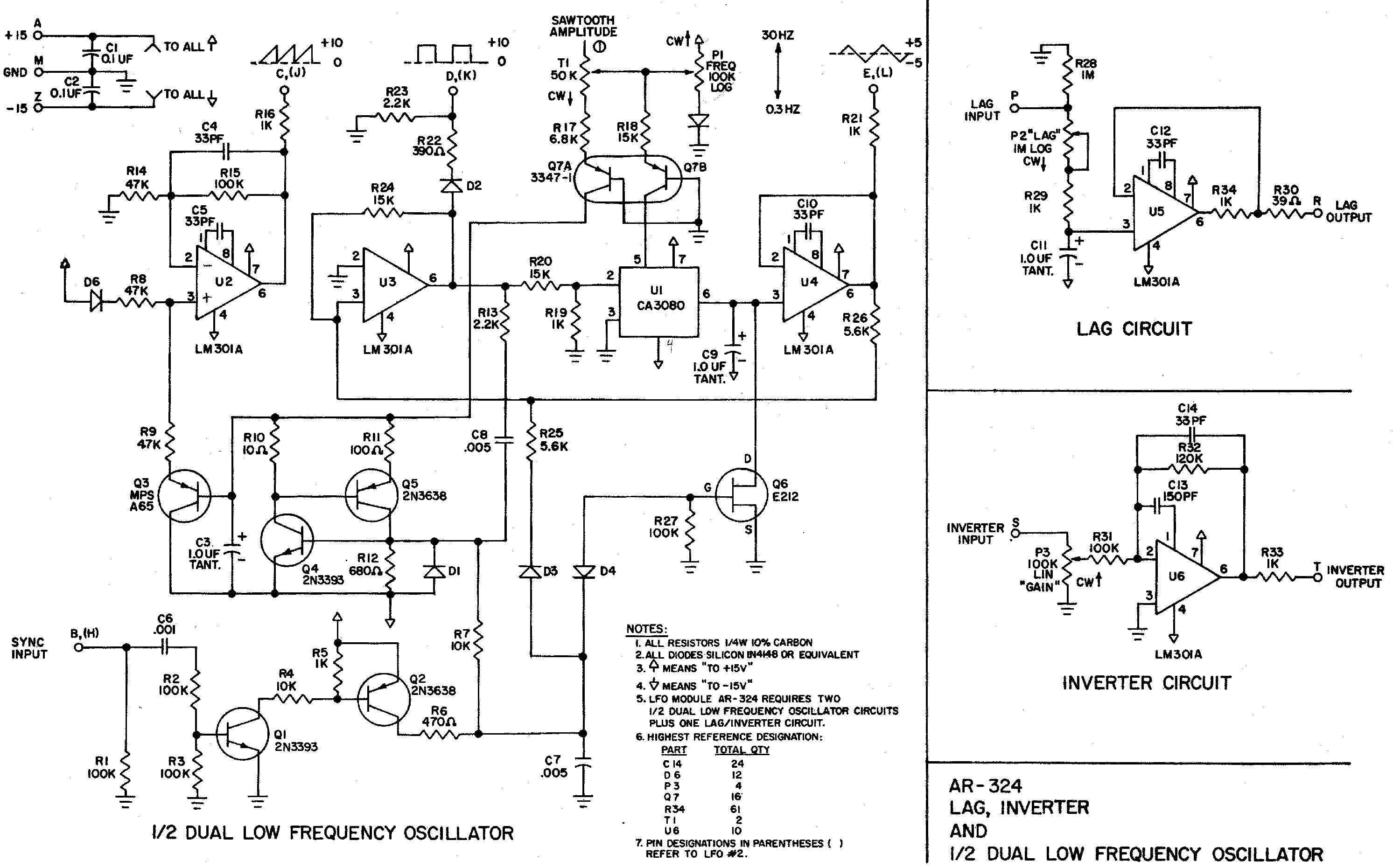

Oscillator Schematics

Here you can find schematics for various oscillators, both audio and otherwise.

Thanks go out to the following people:

  • Tony Clark
  • Kevin Lightner
