moogmanuals

Moog Manuals

This page contains user and service manuals to various Moog products.


MemoryMoog

.


Users Manual - 9.0M PDF

Upgrades

Auto-tune Upgrade - 636K PDF

Sequencer Upgrade - 931K PDF

Noise Source Upgrade - 132K PDF

Contributor – Cary Roberts


Micromoog DIY Modifications

VCF Modification

Contributor – Michael Caloroso

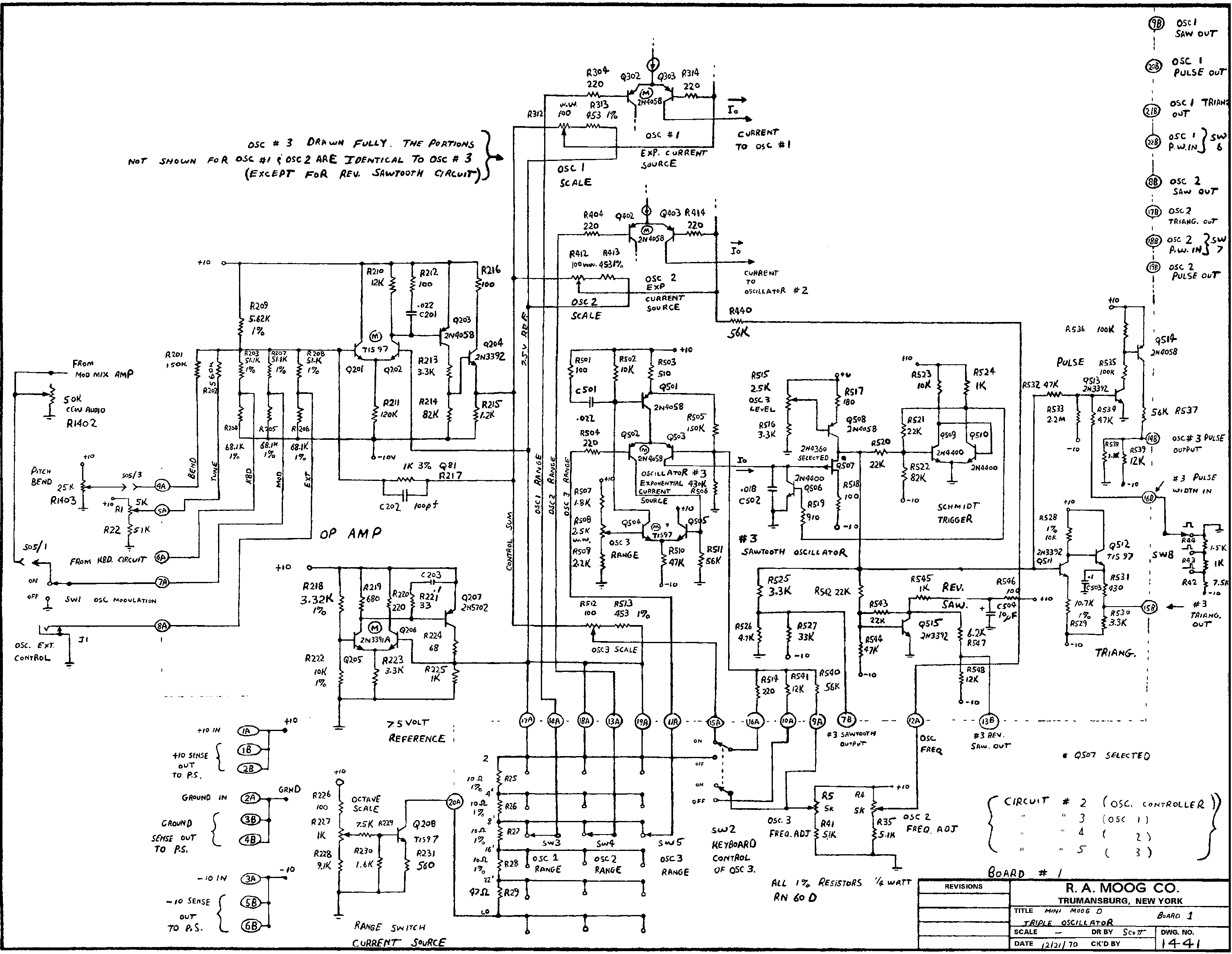

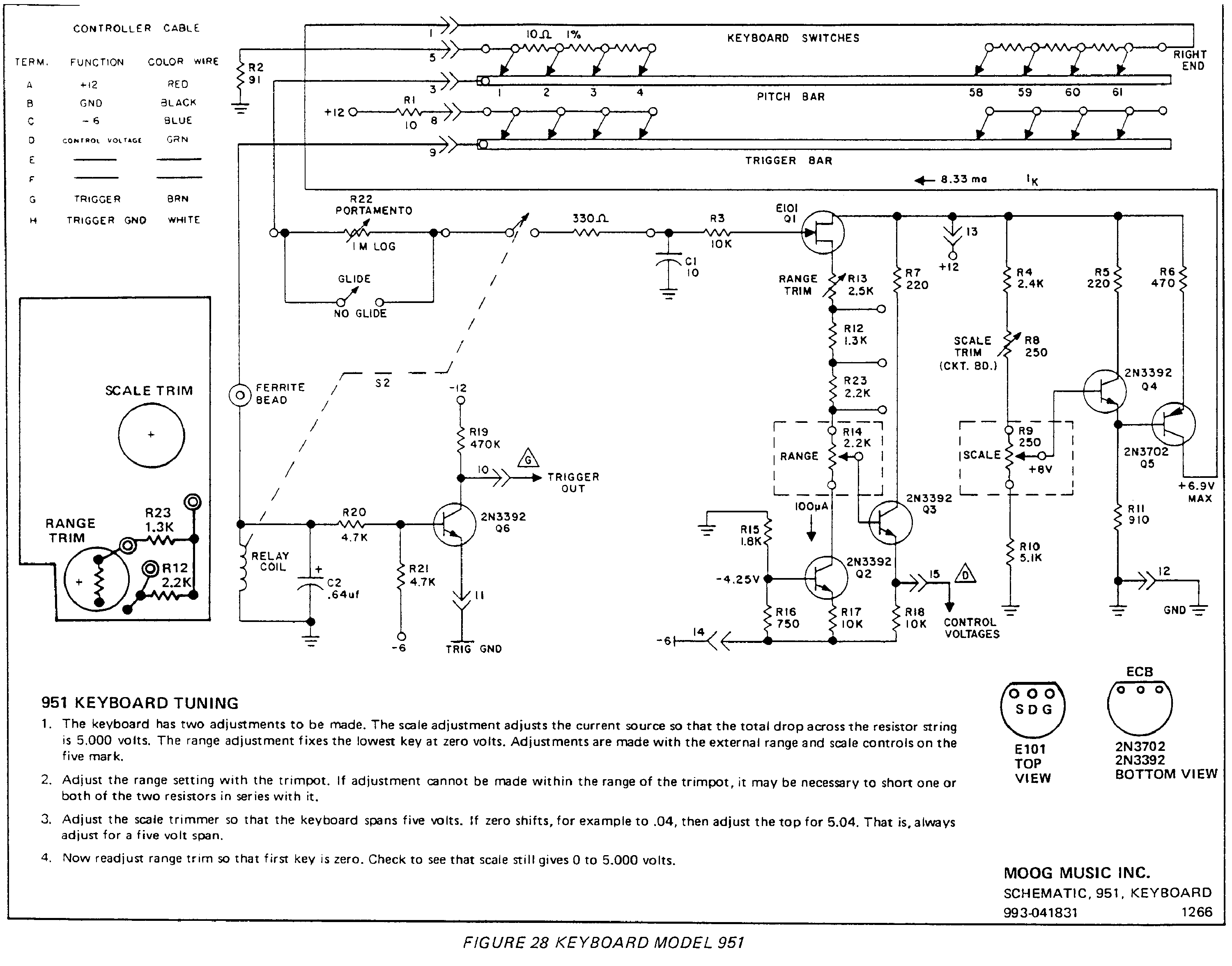

Moog Minimoog Schematics

VCO Board - 151K - Early revision

Contributor – Terry Michaels

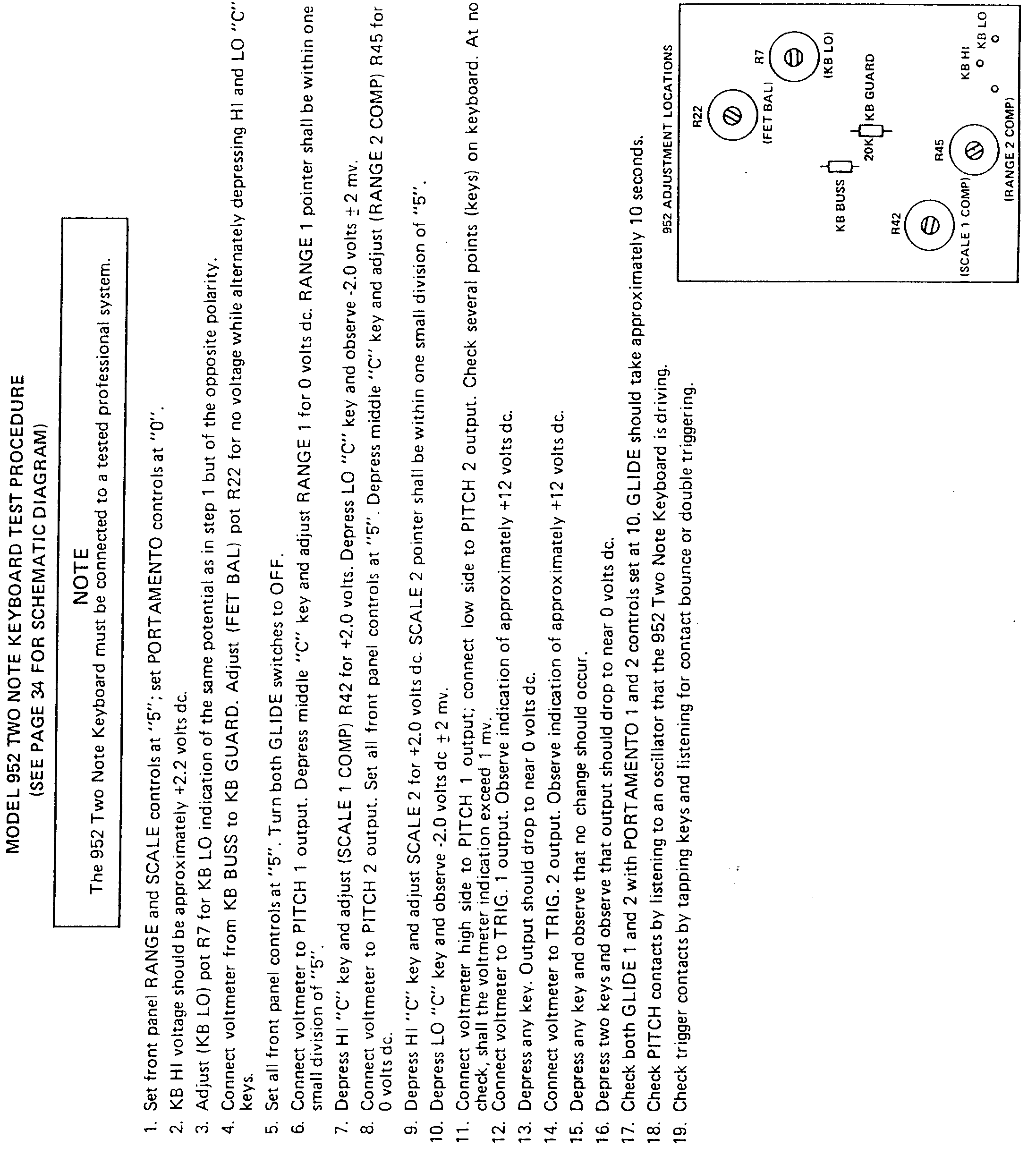

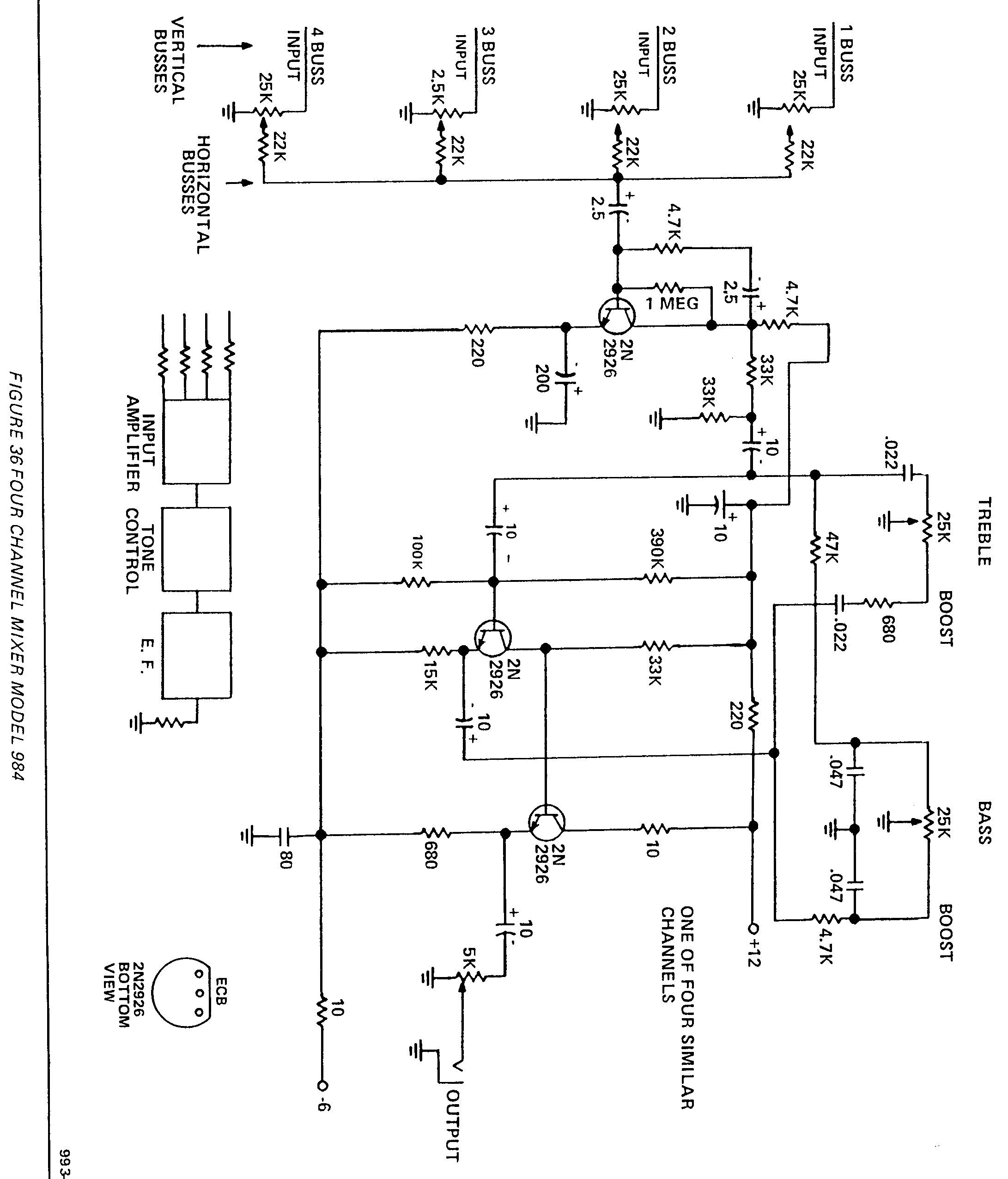

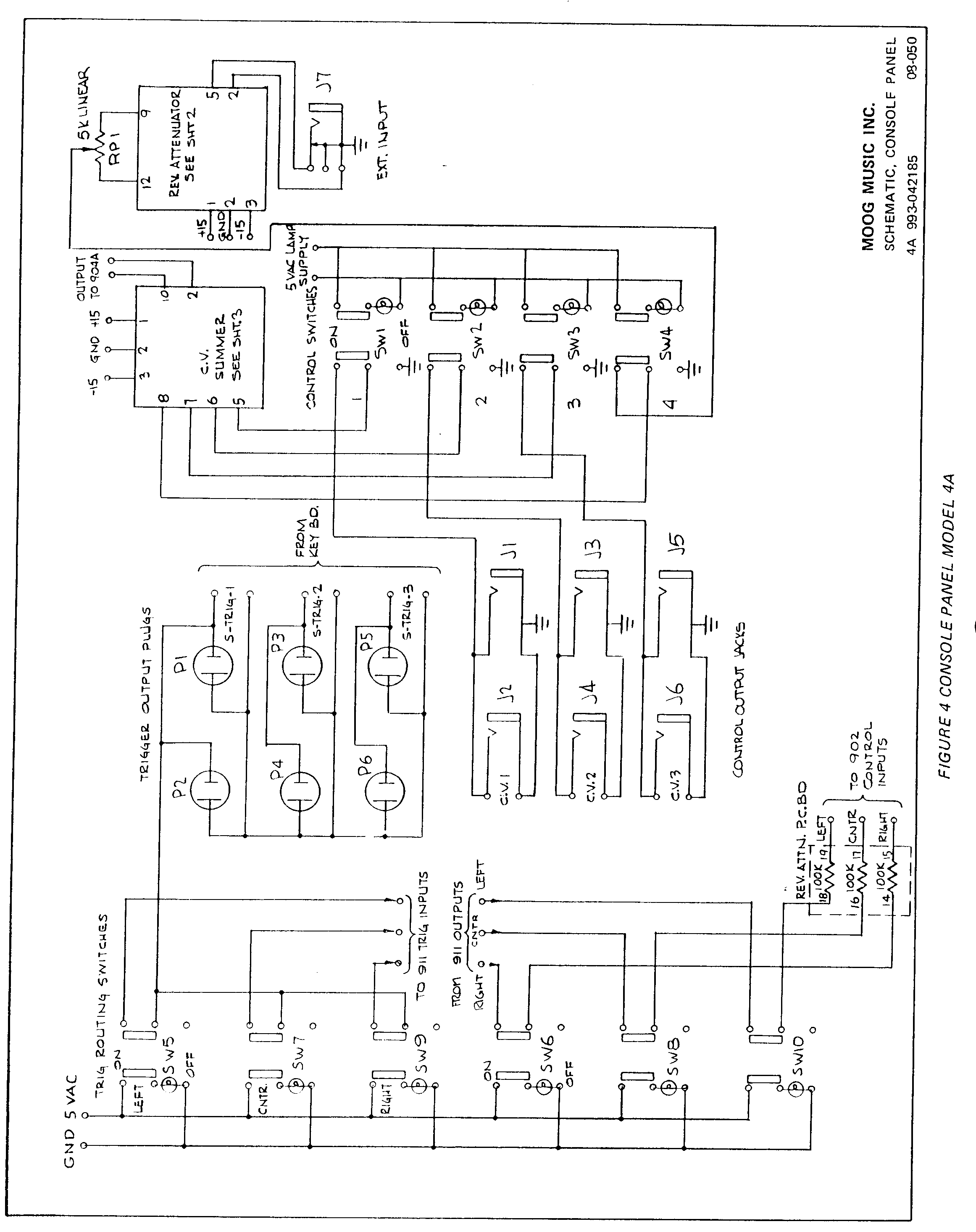

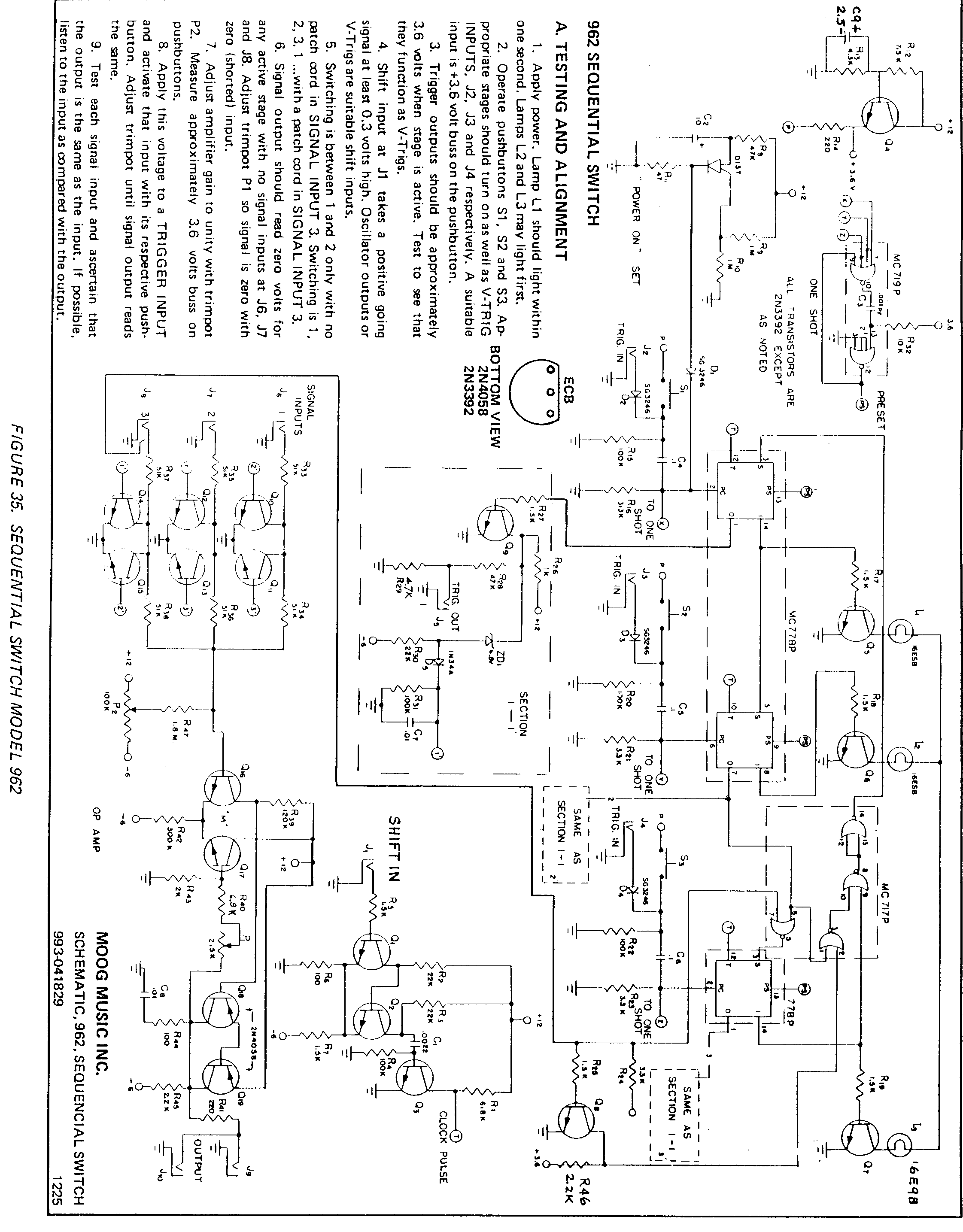

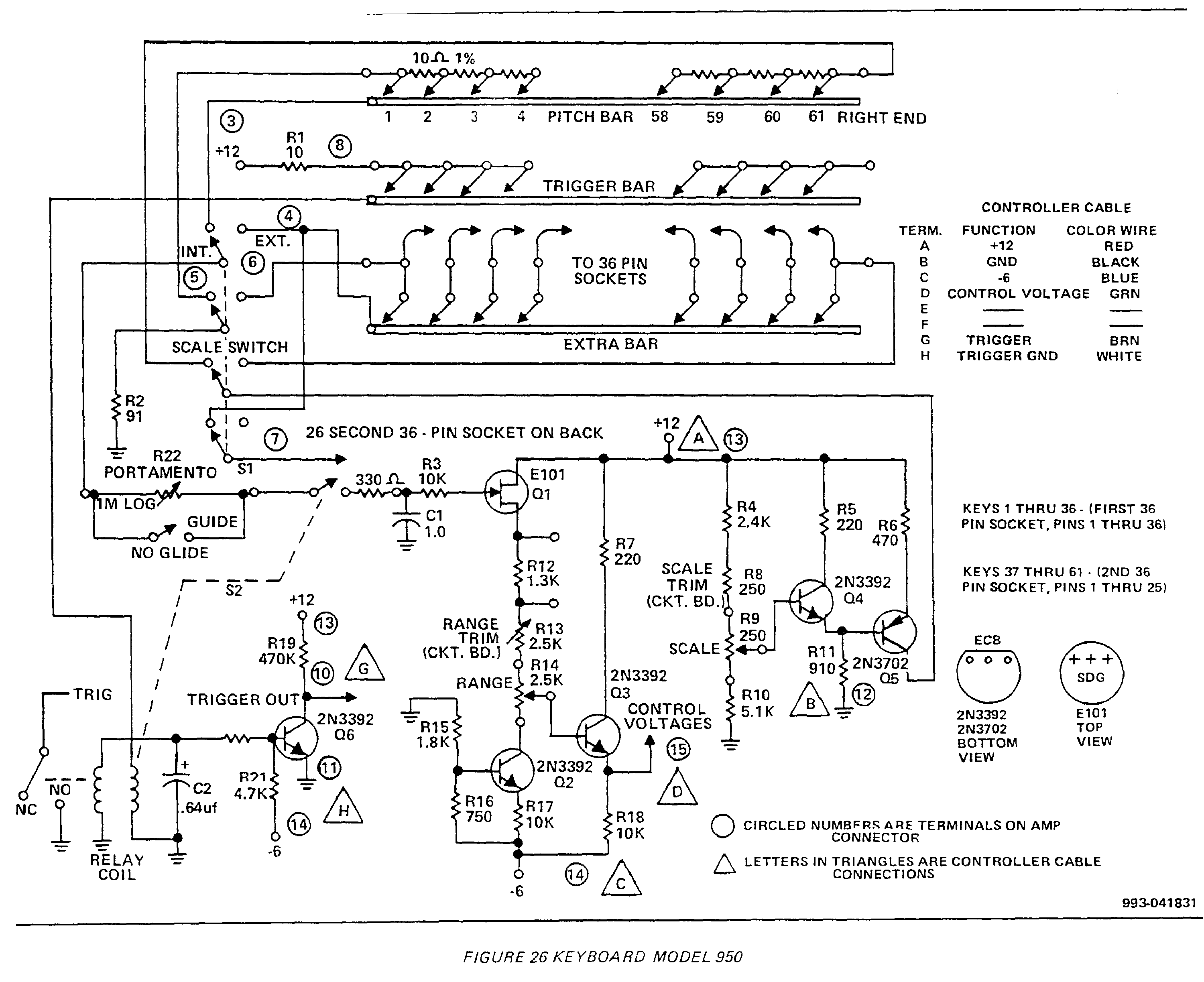

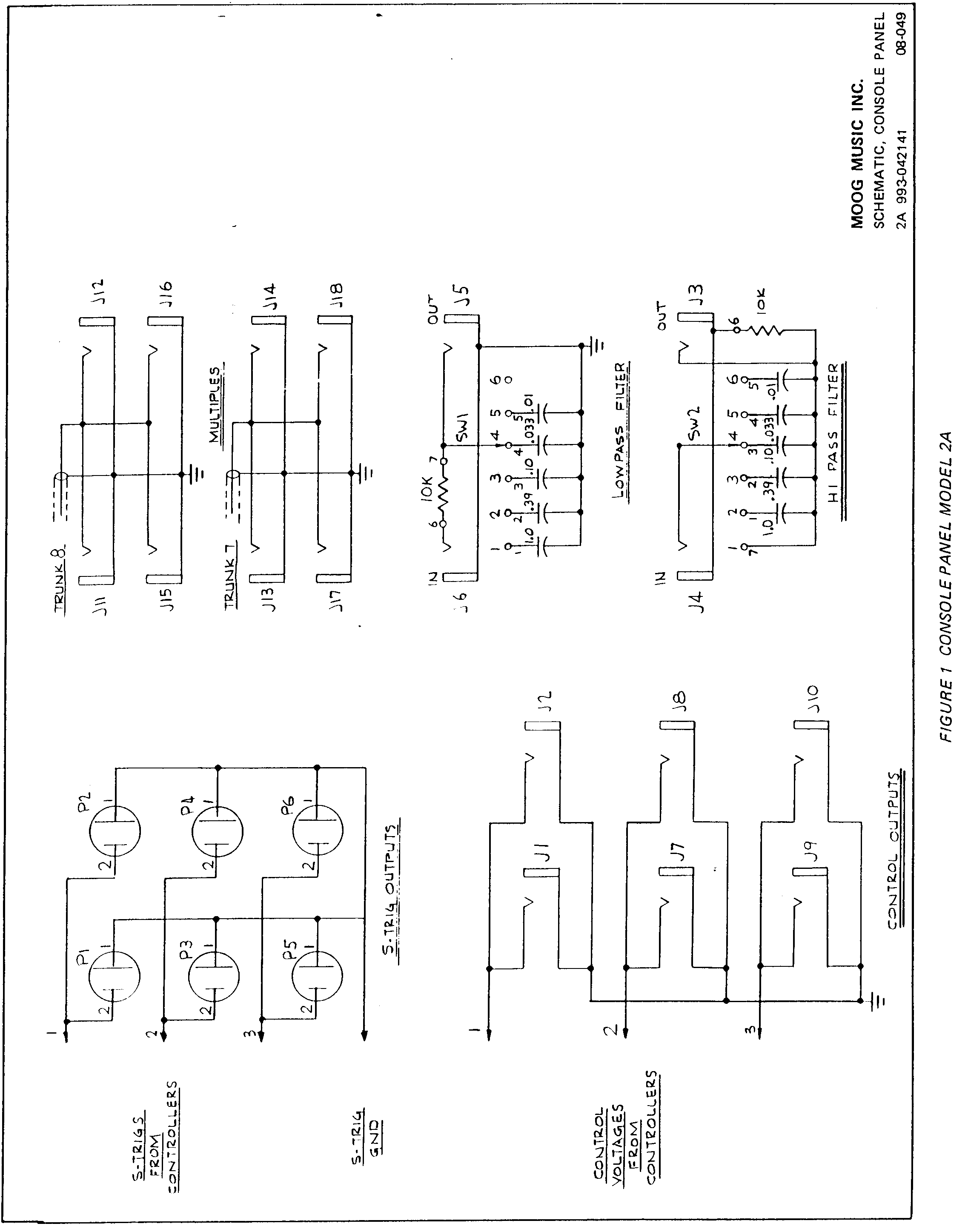

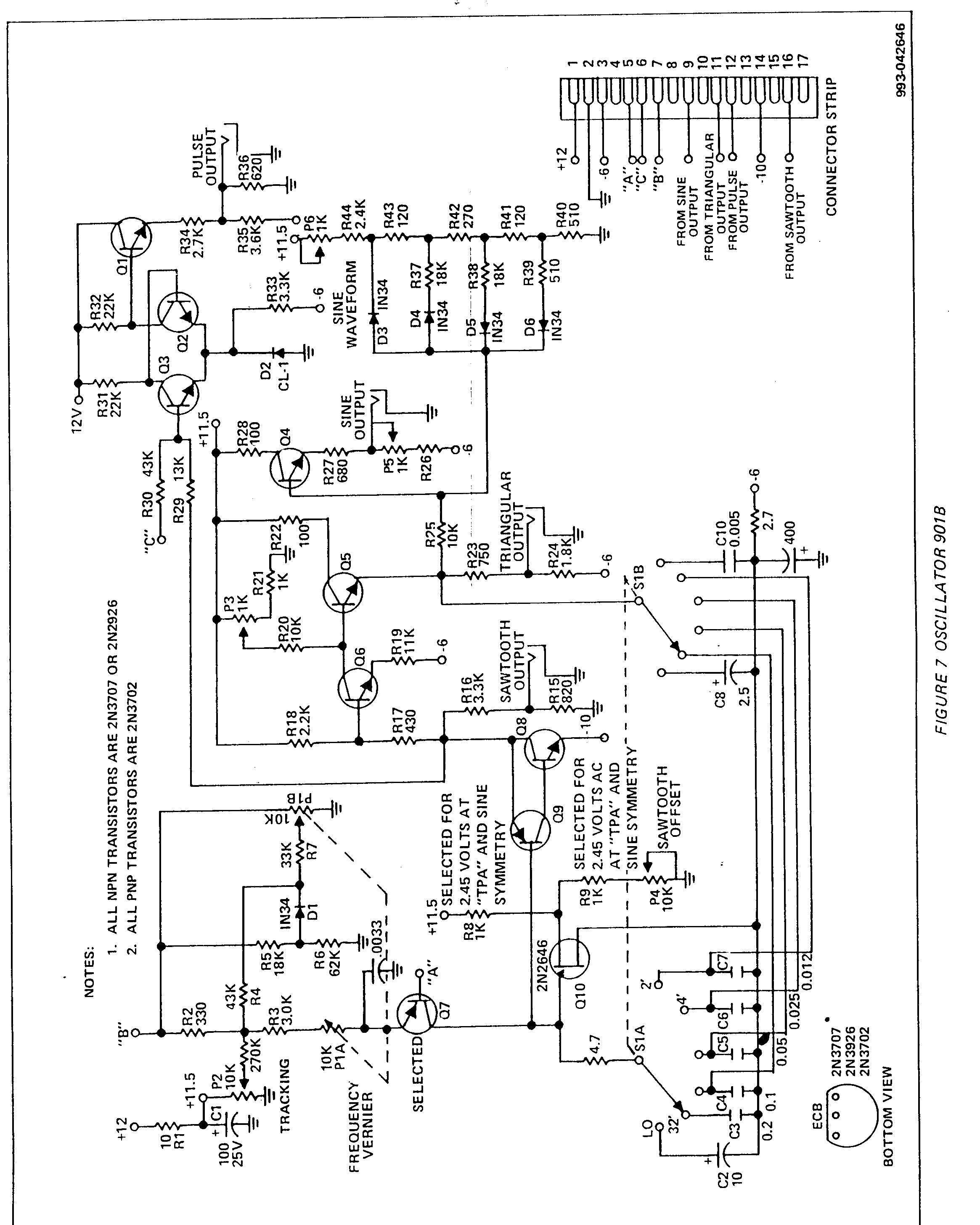

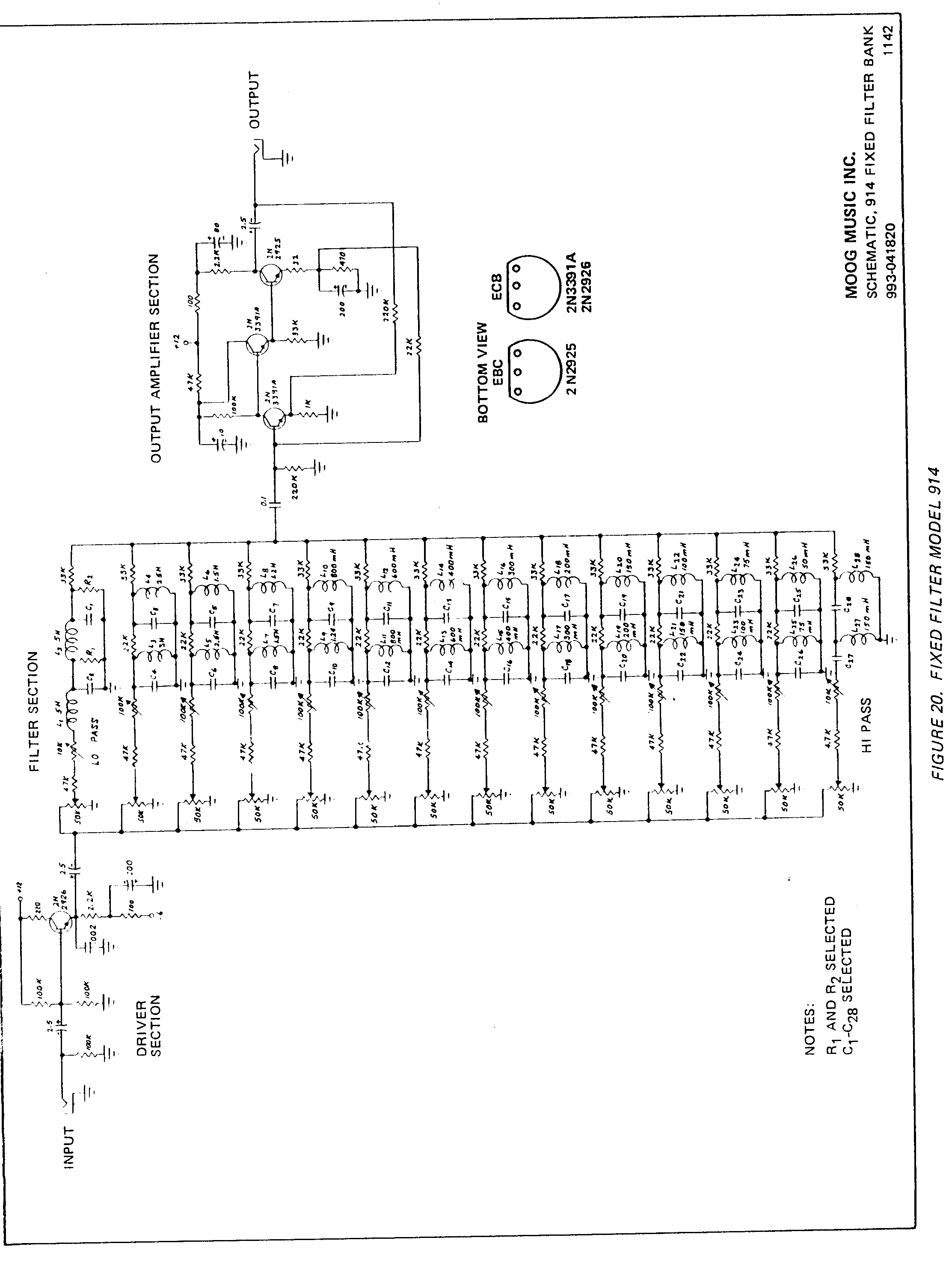

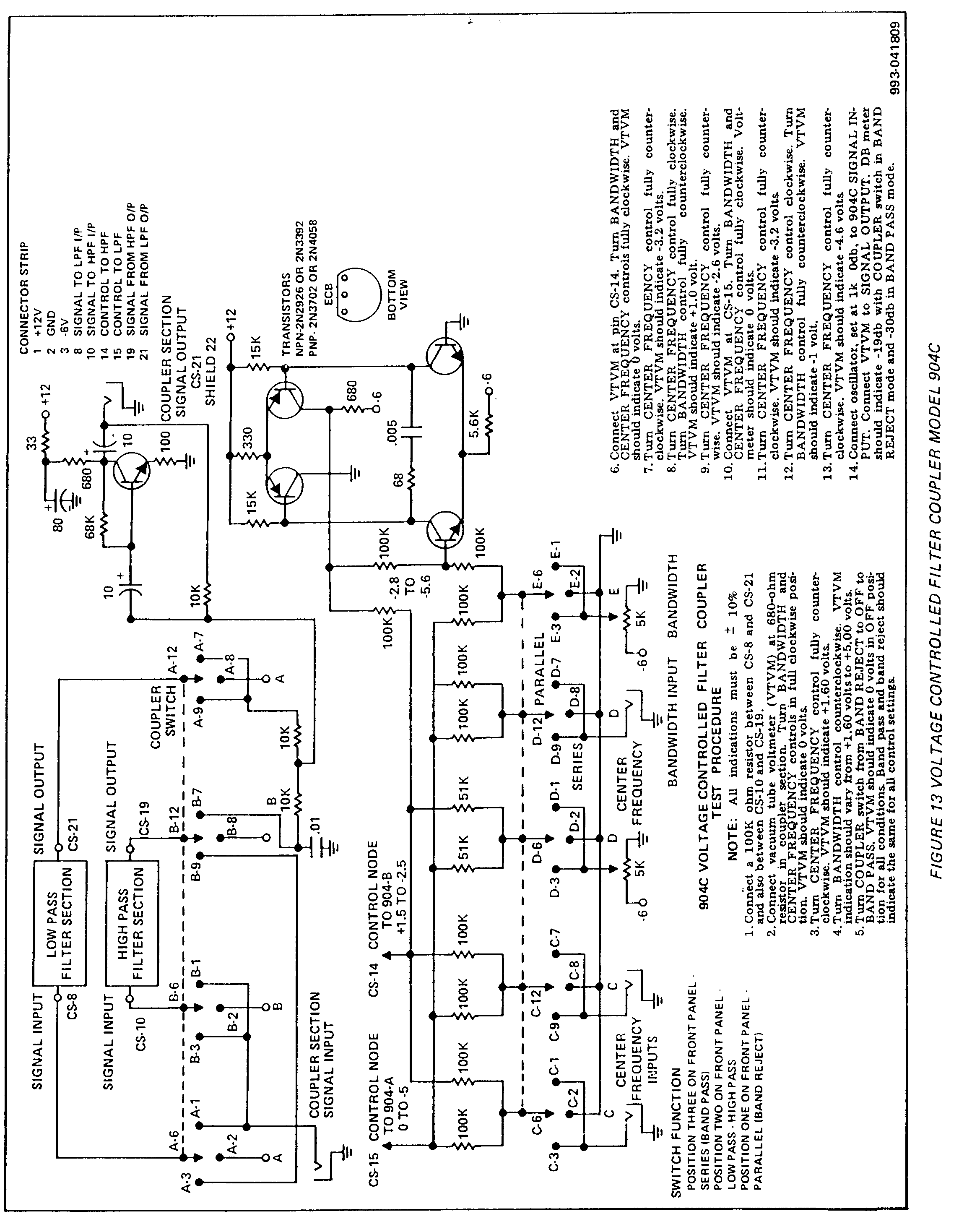

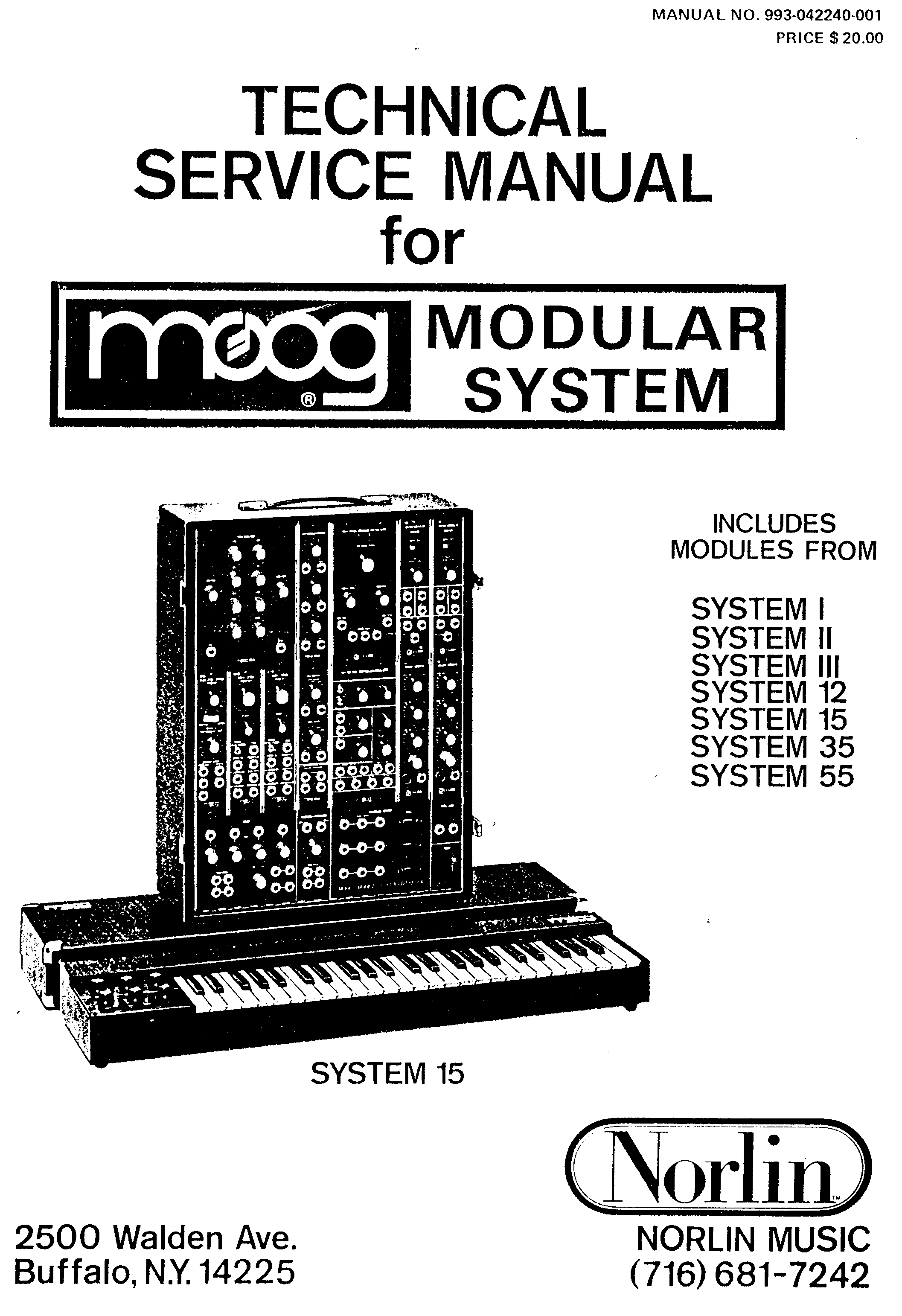

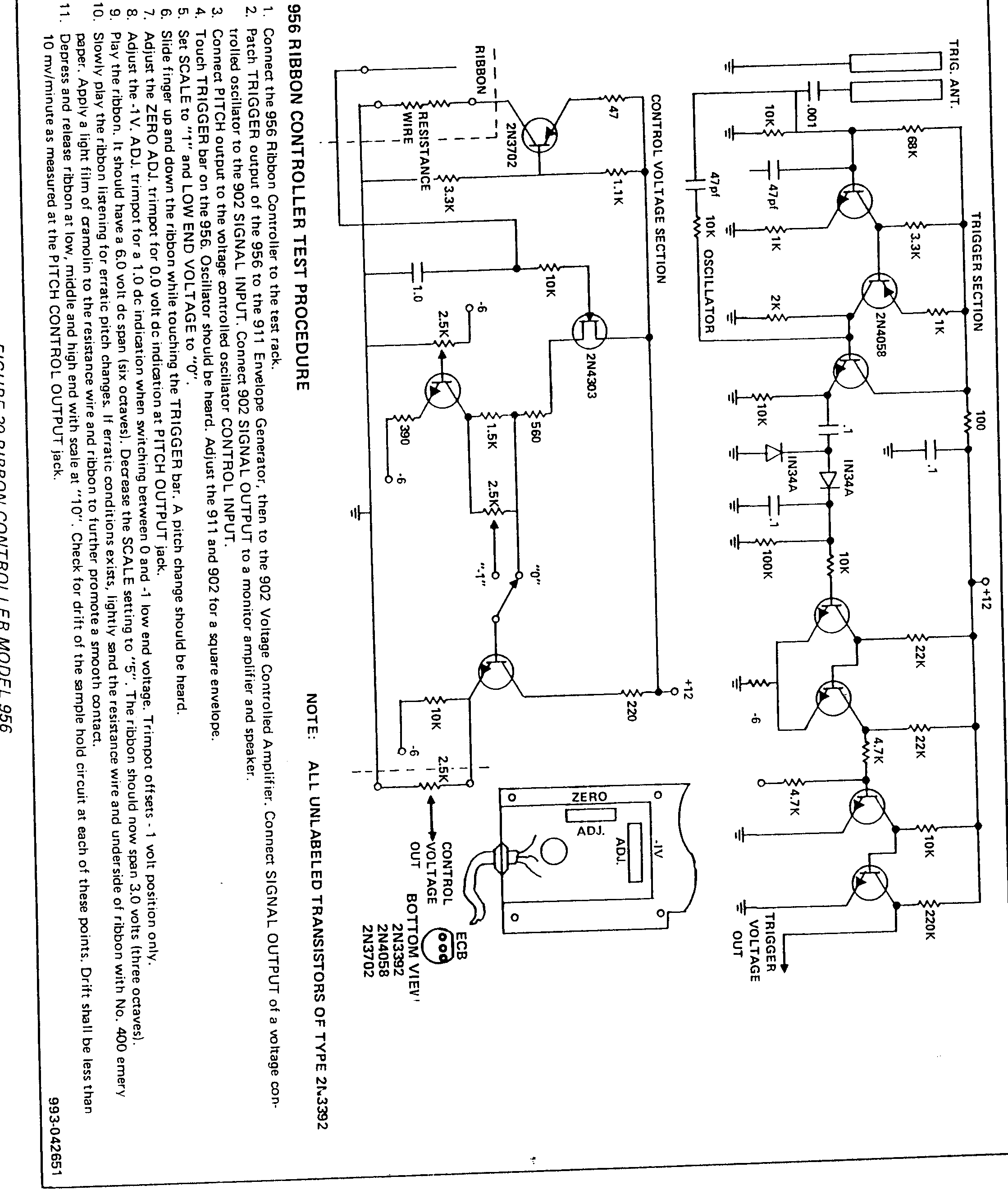

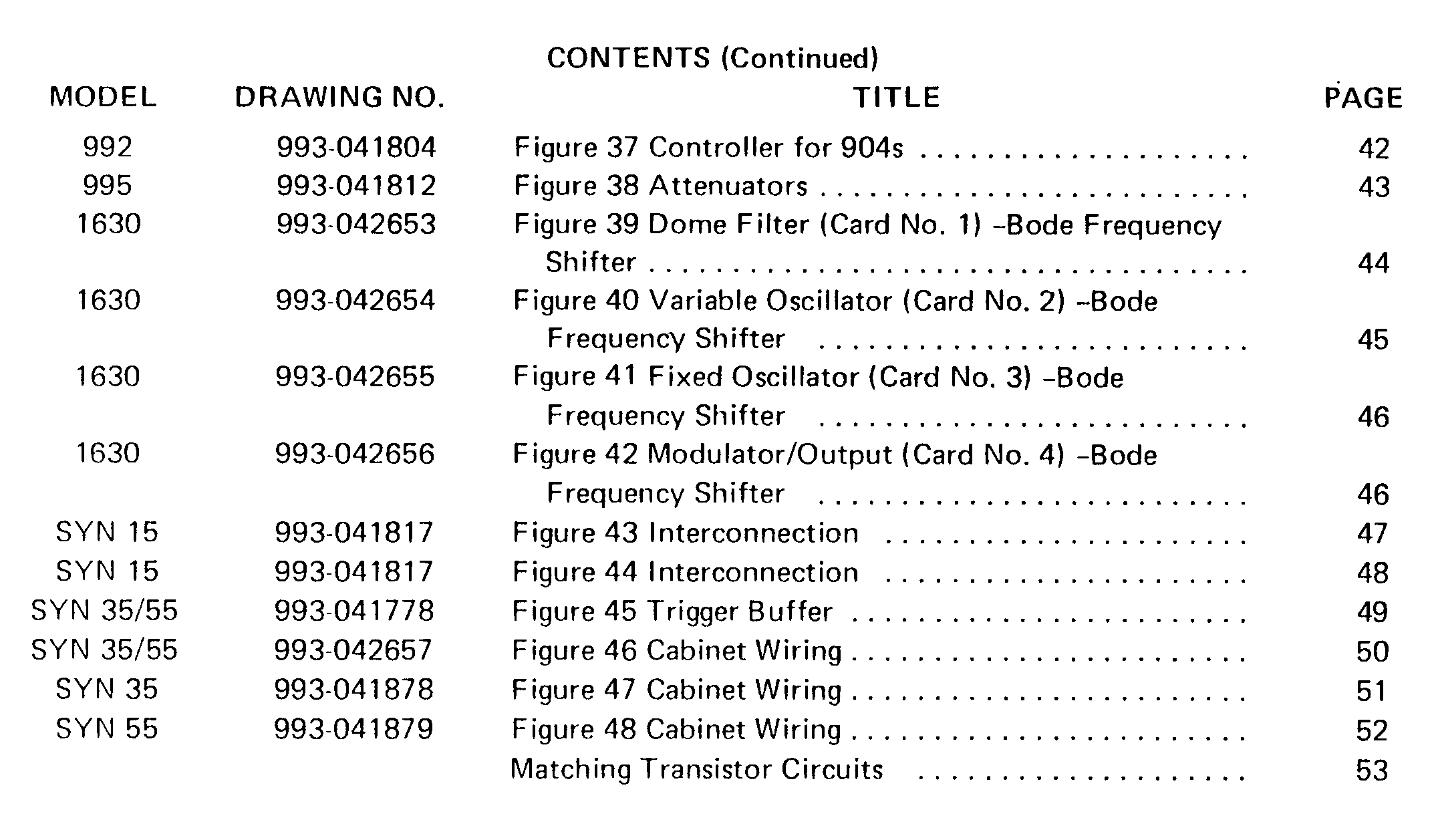

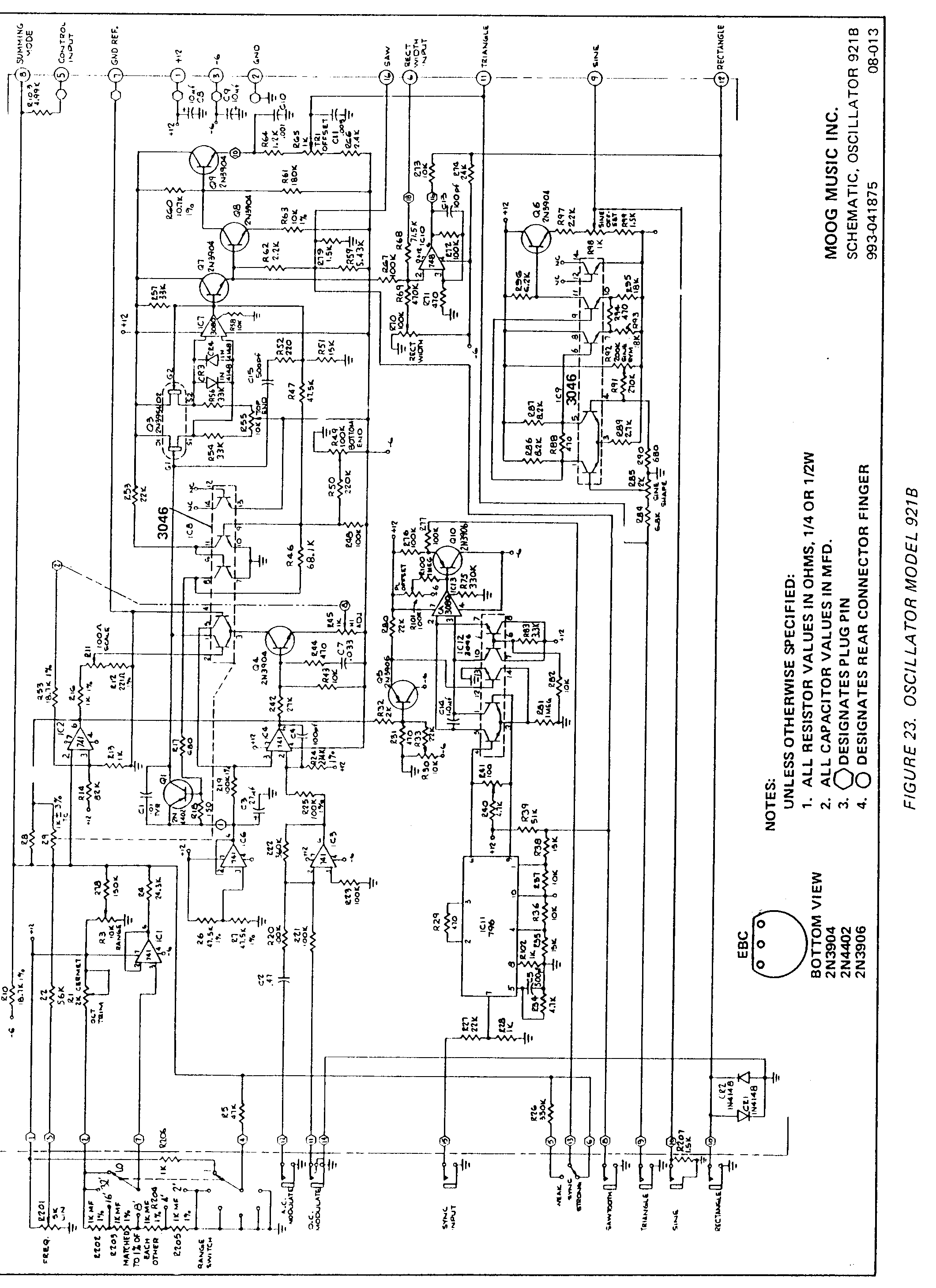

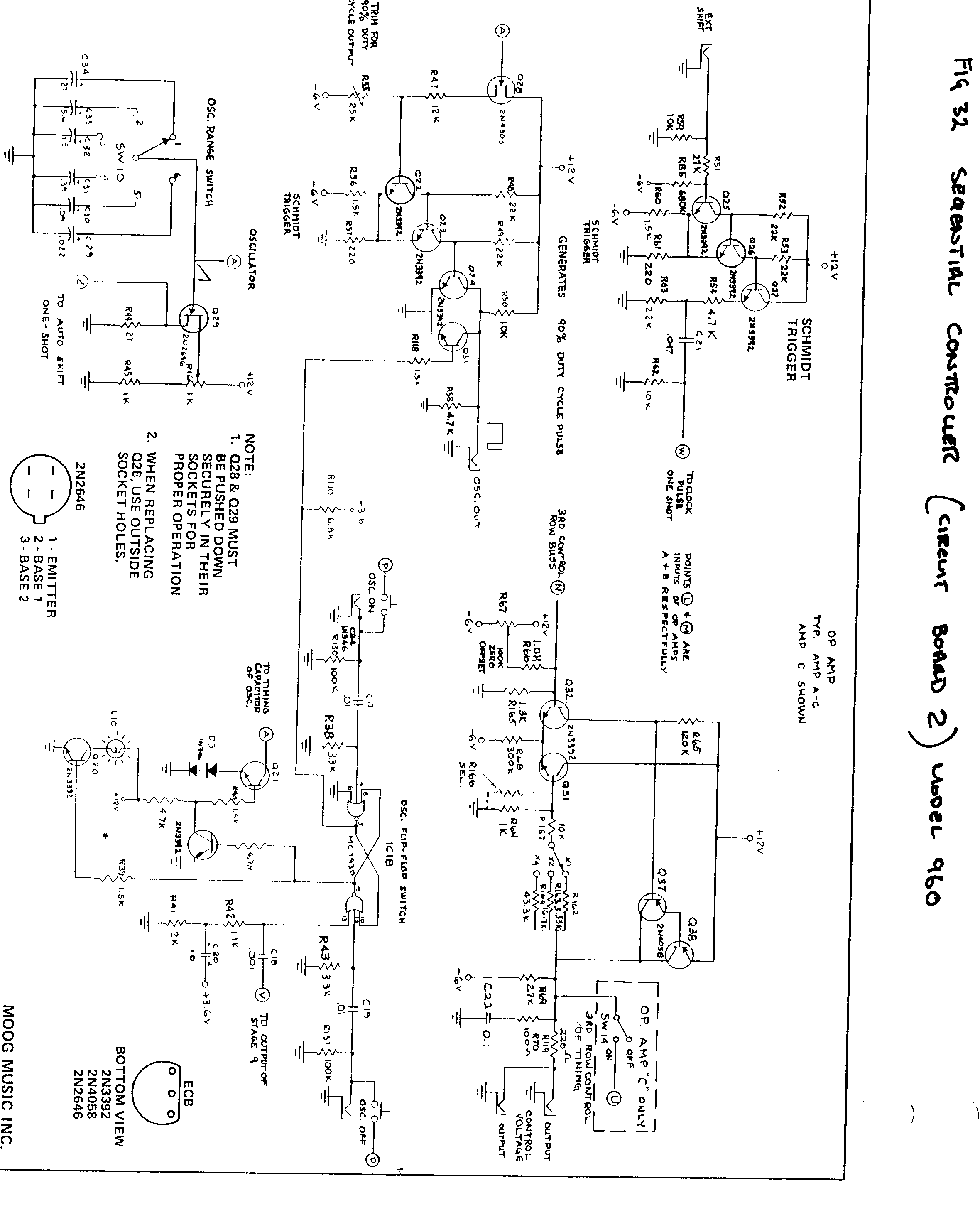

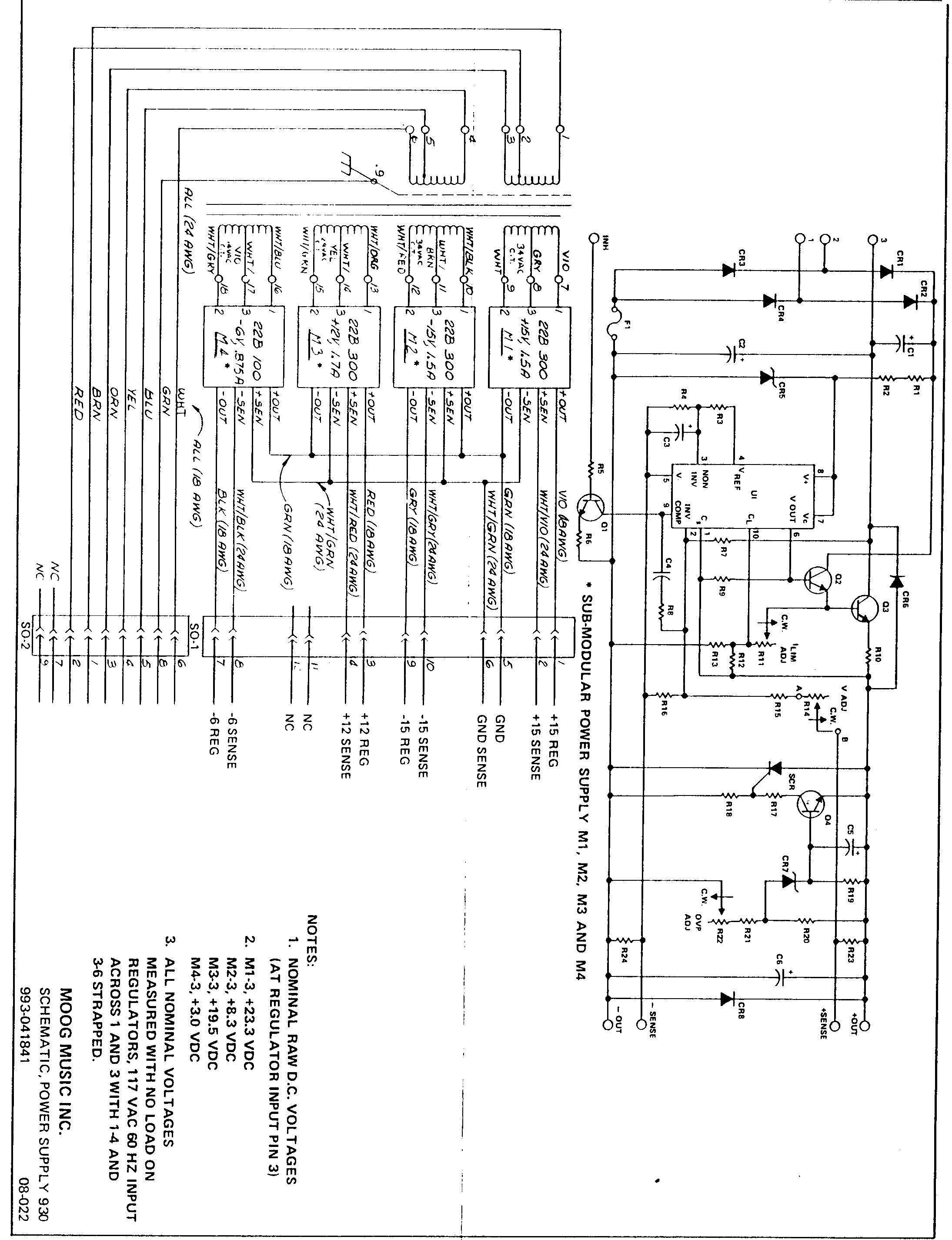

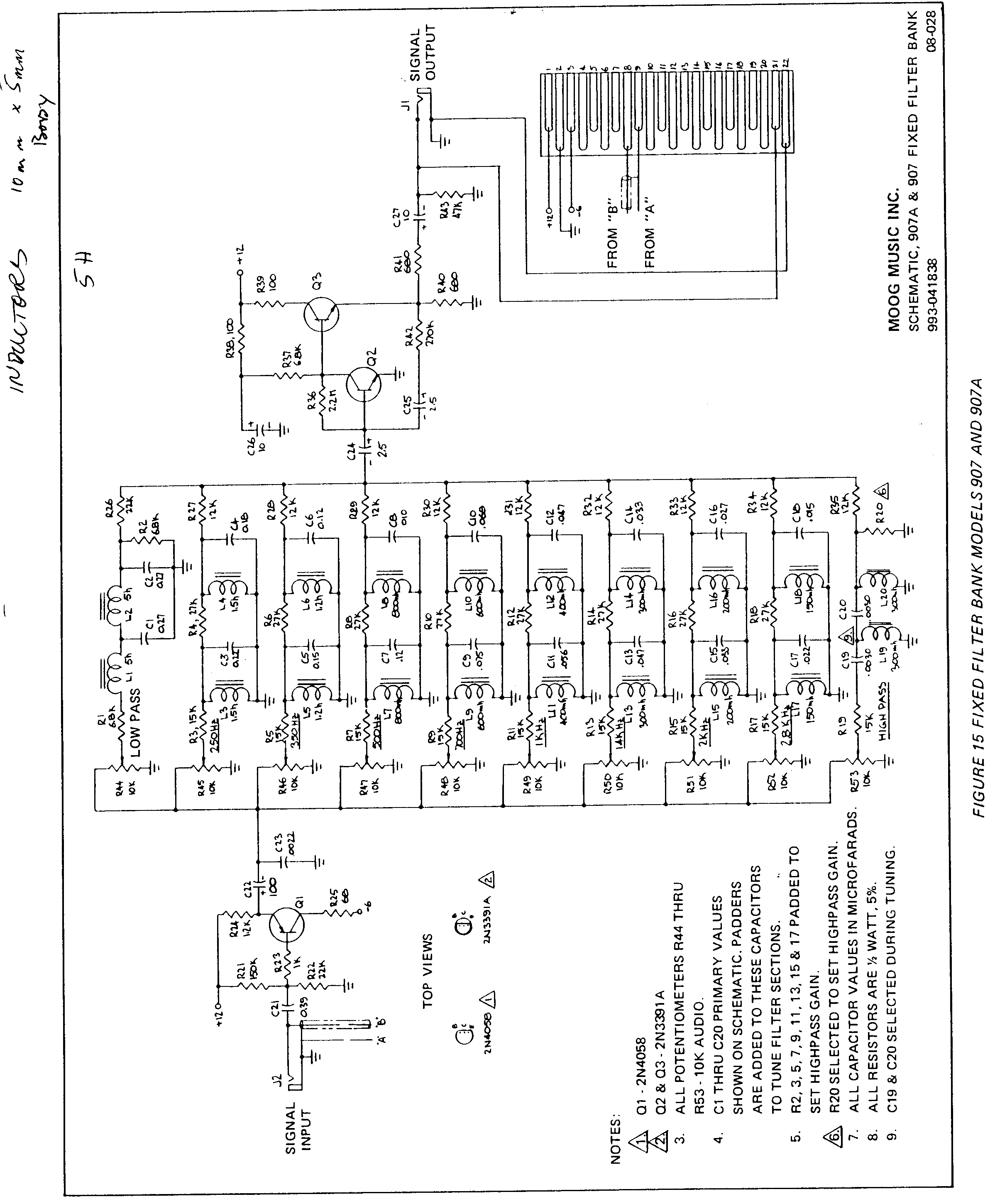

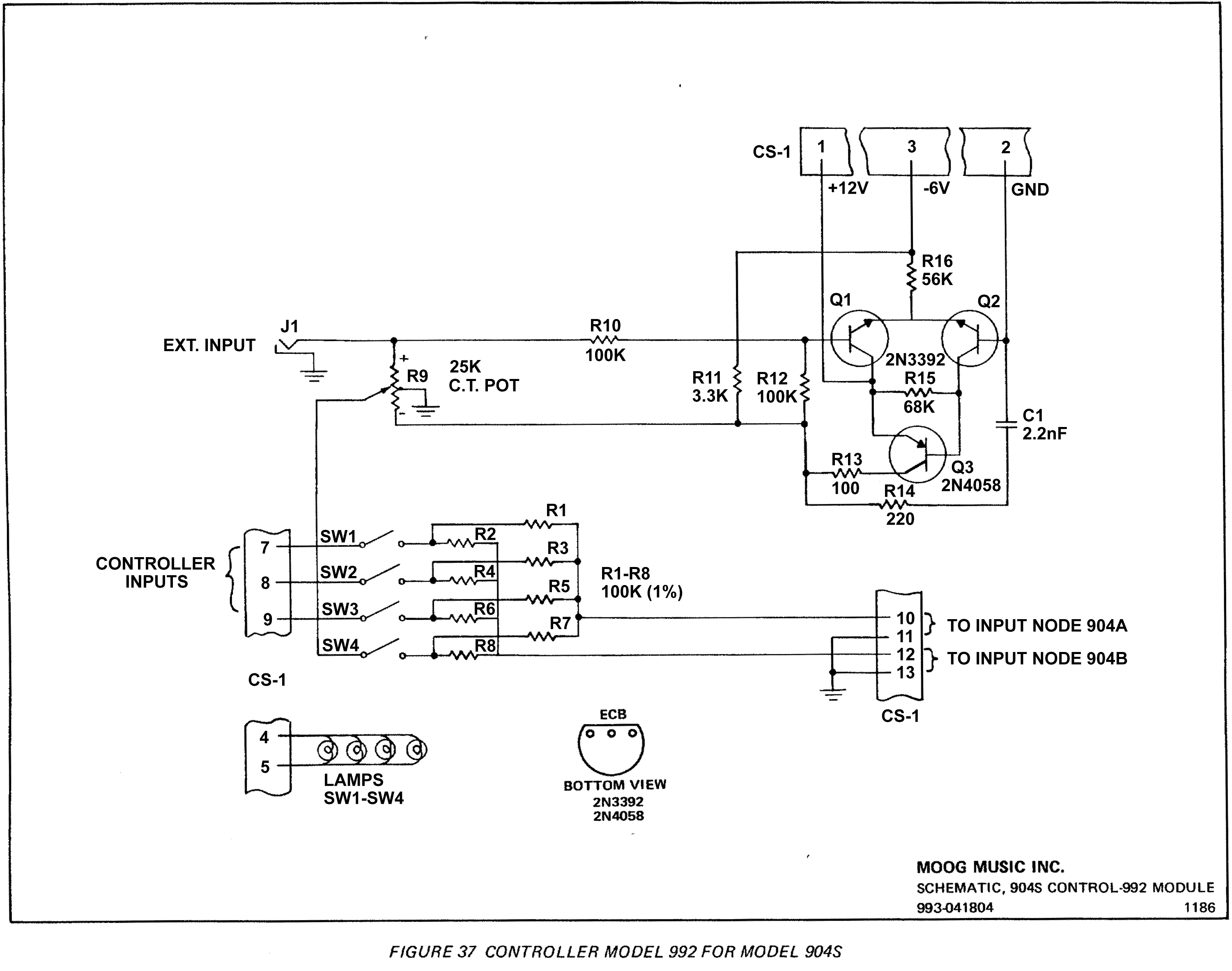

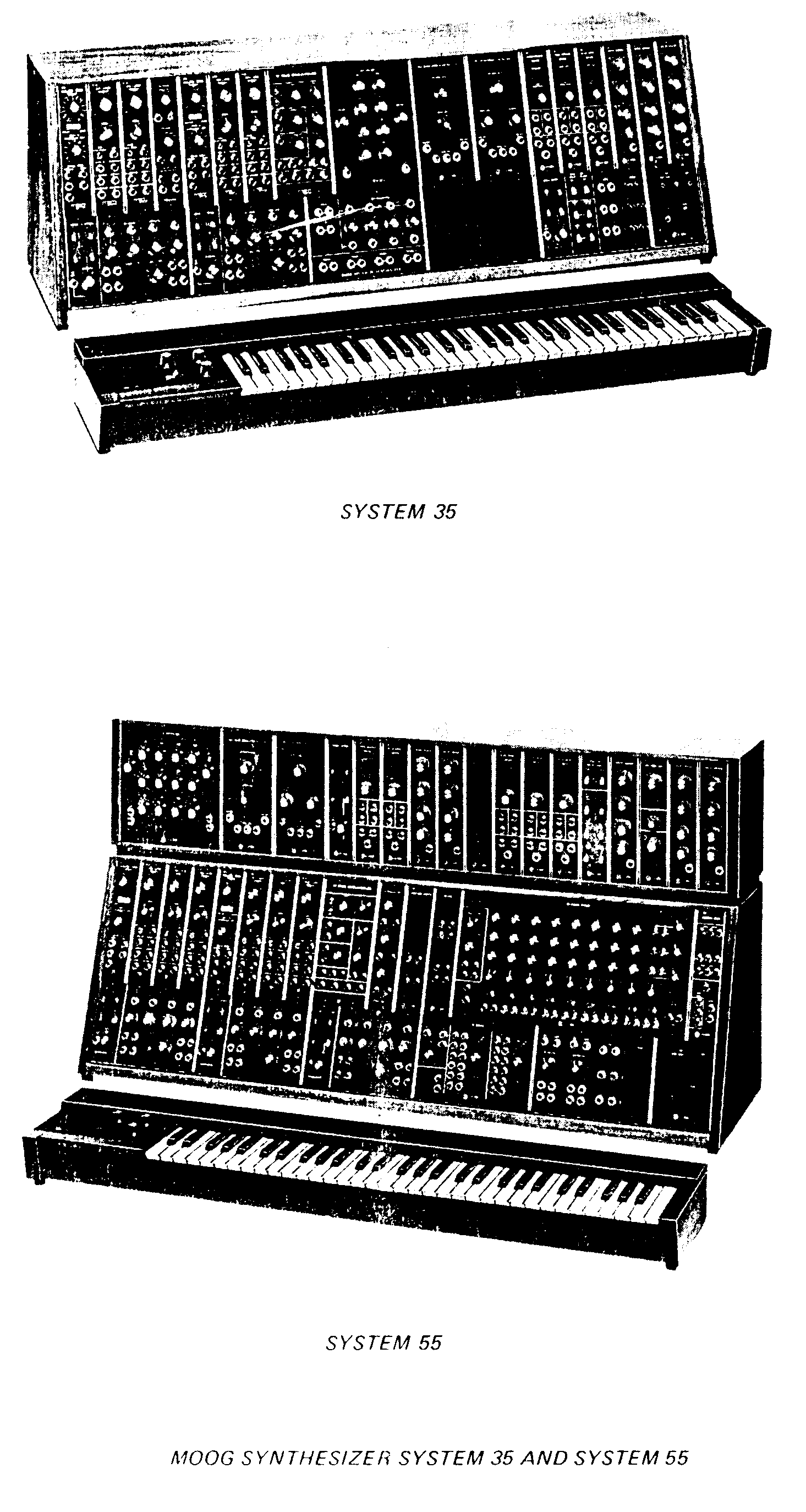

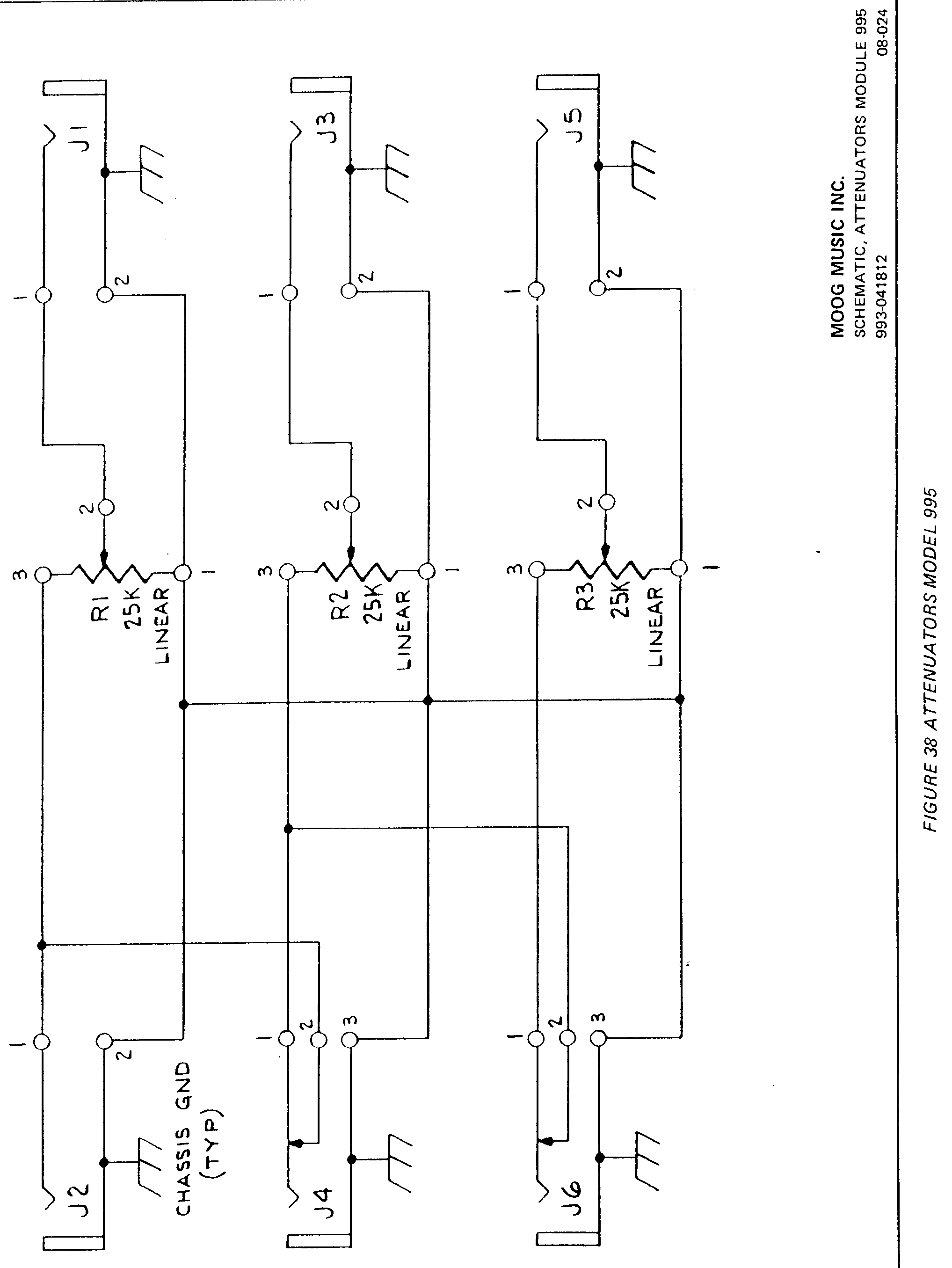

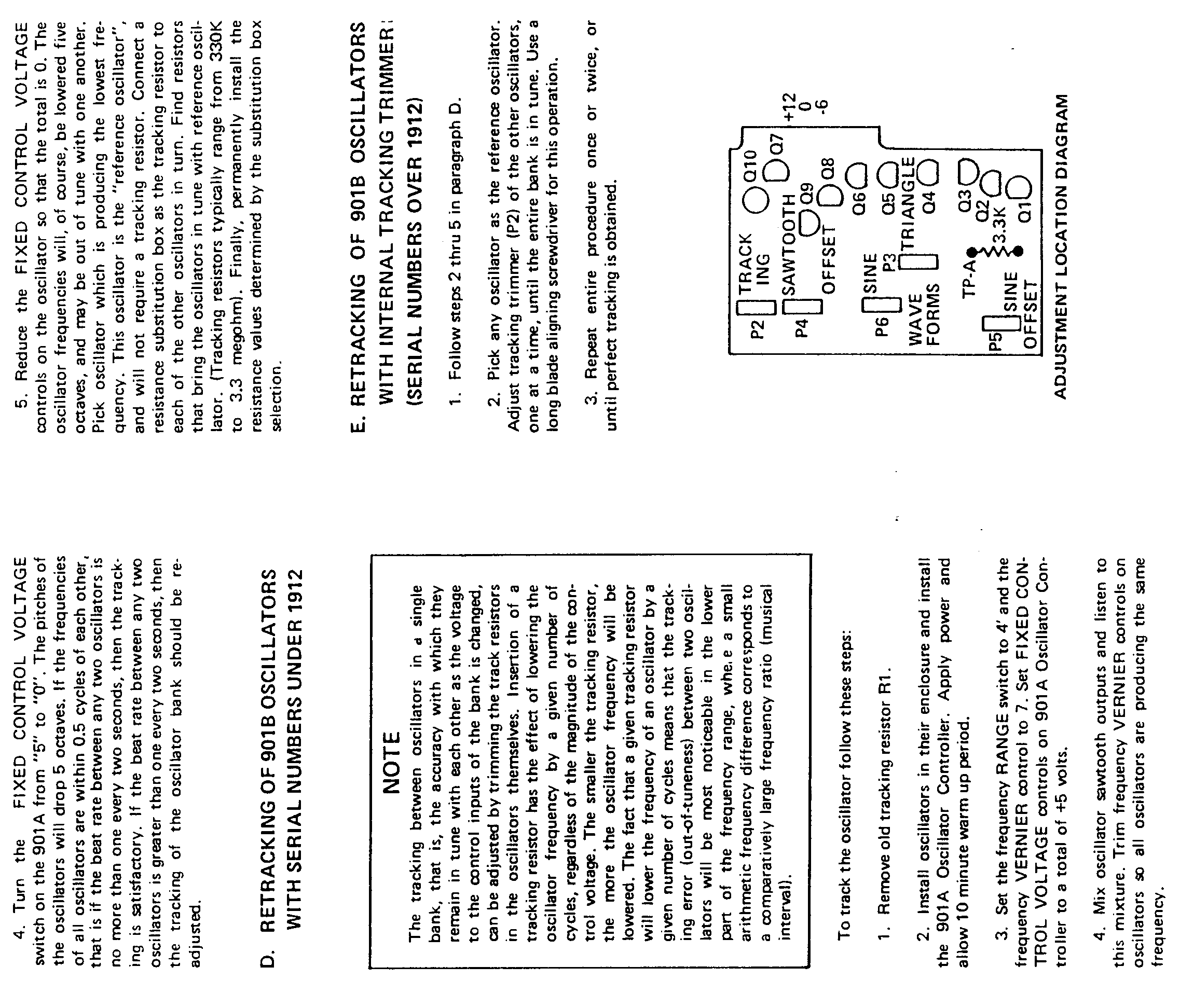

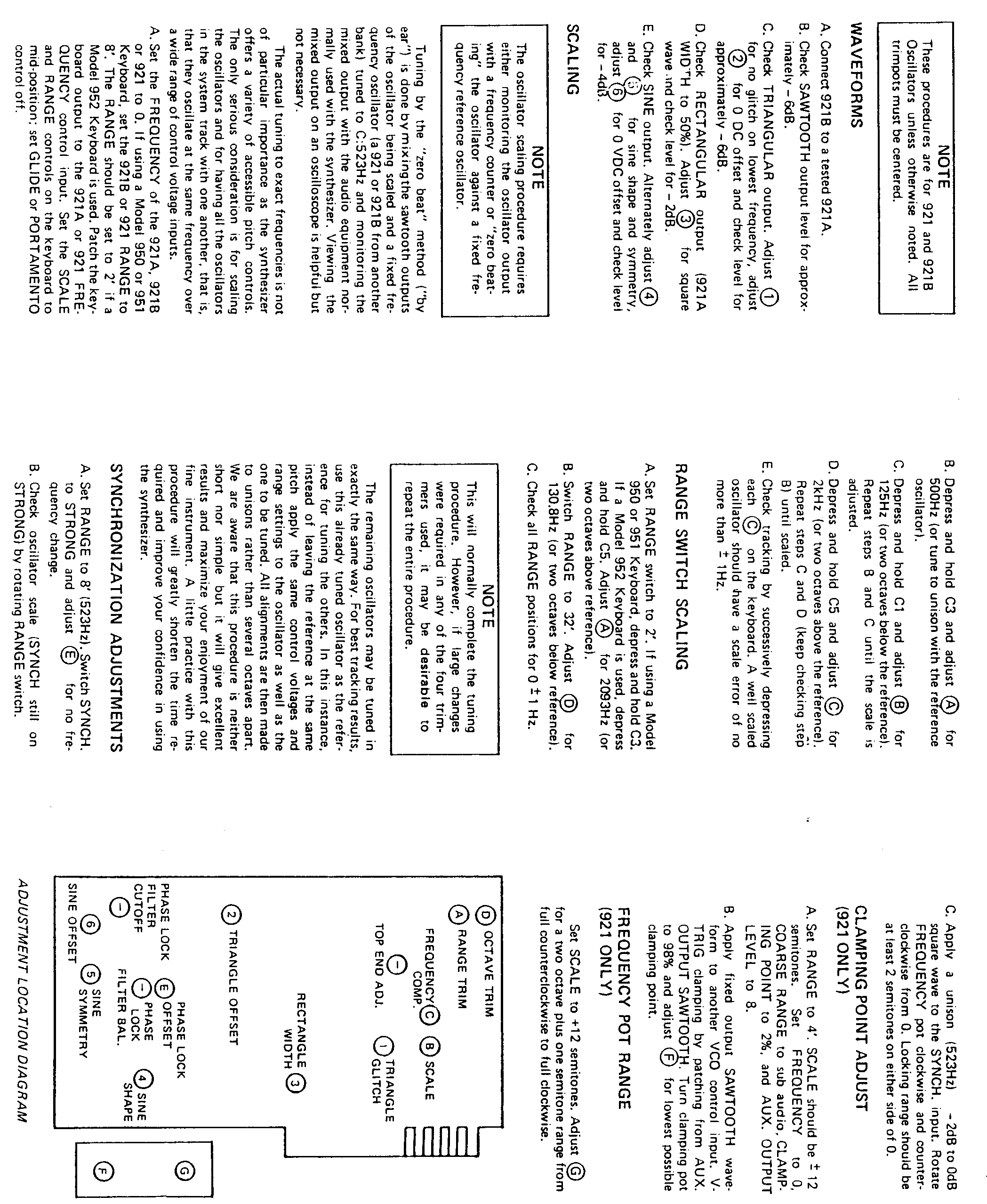

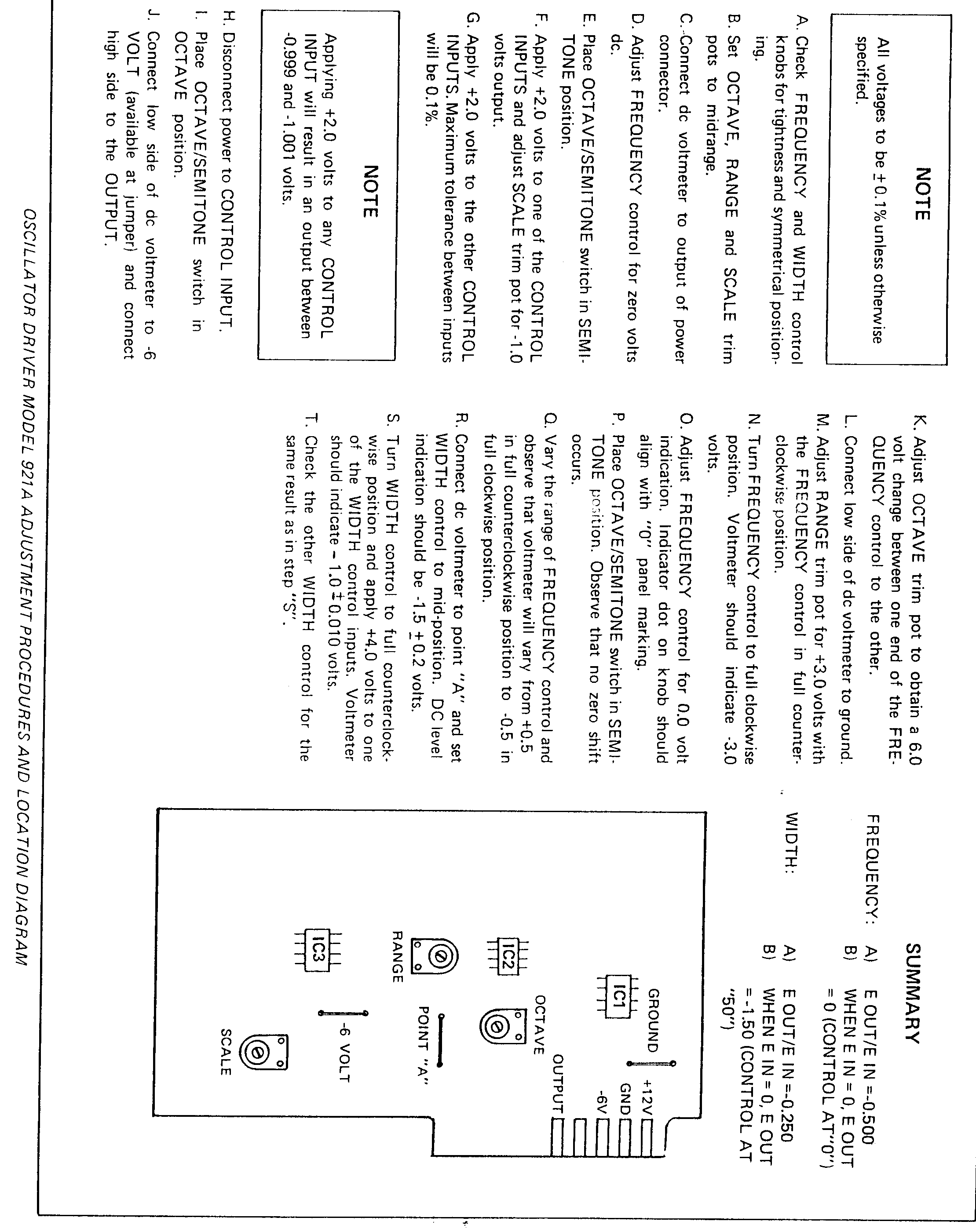

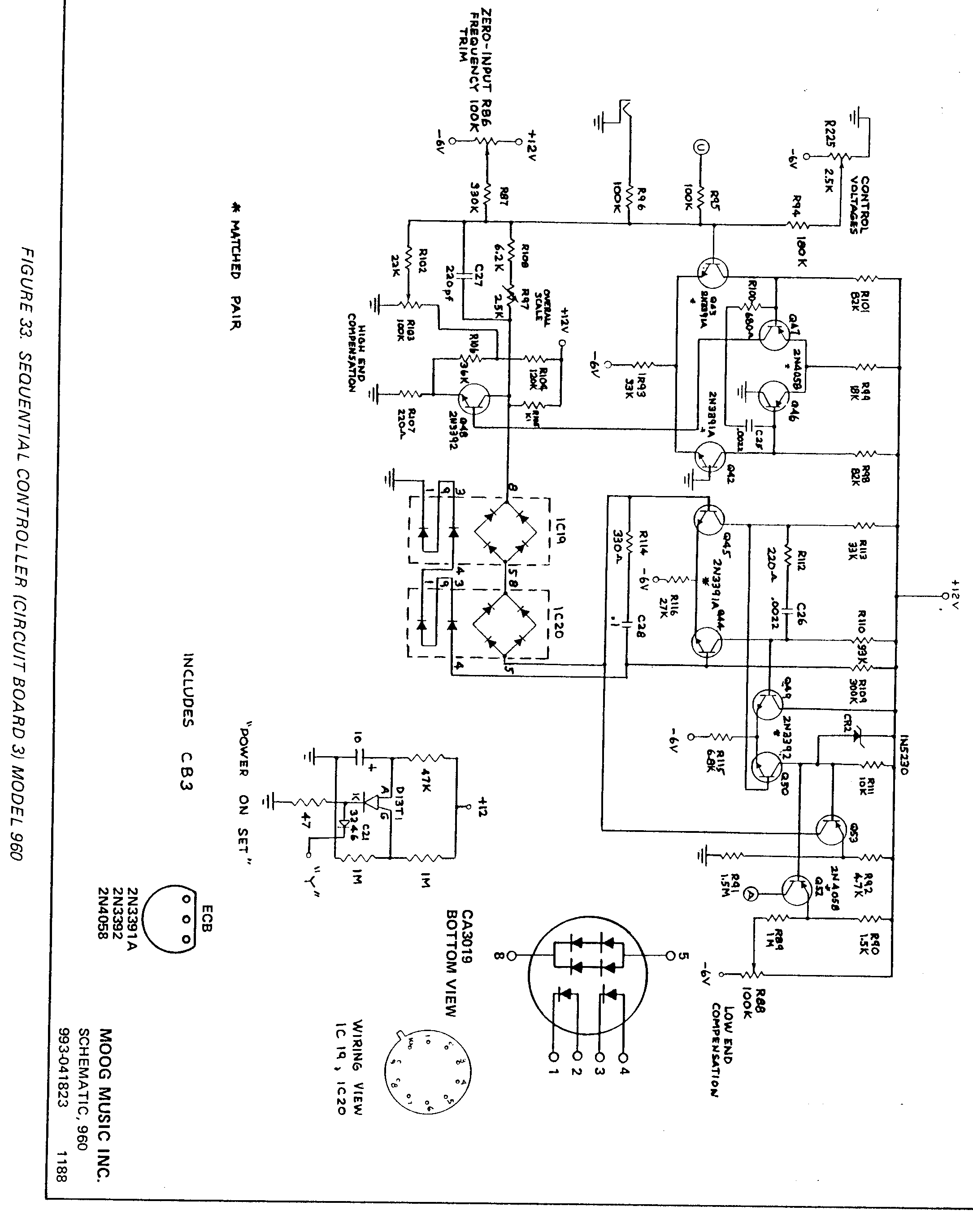

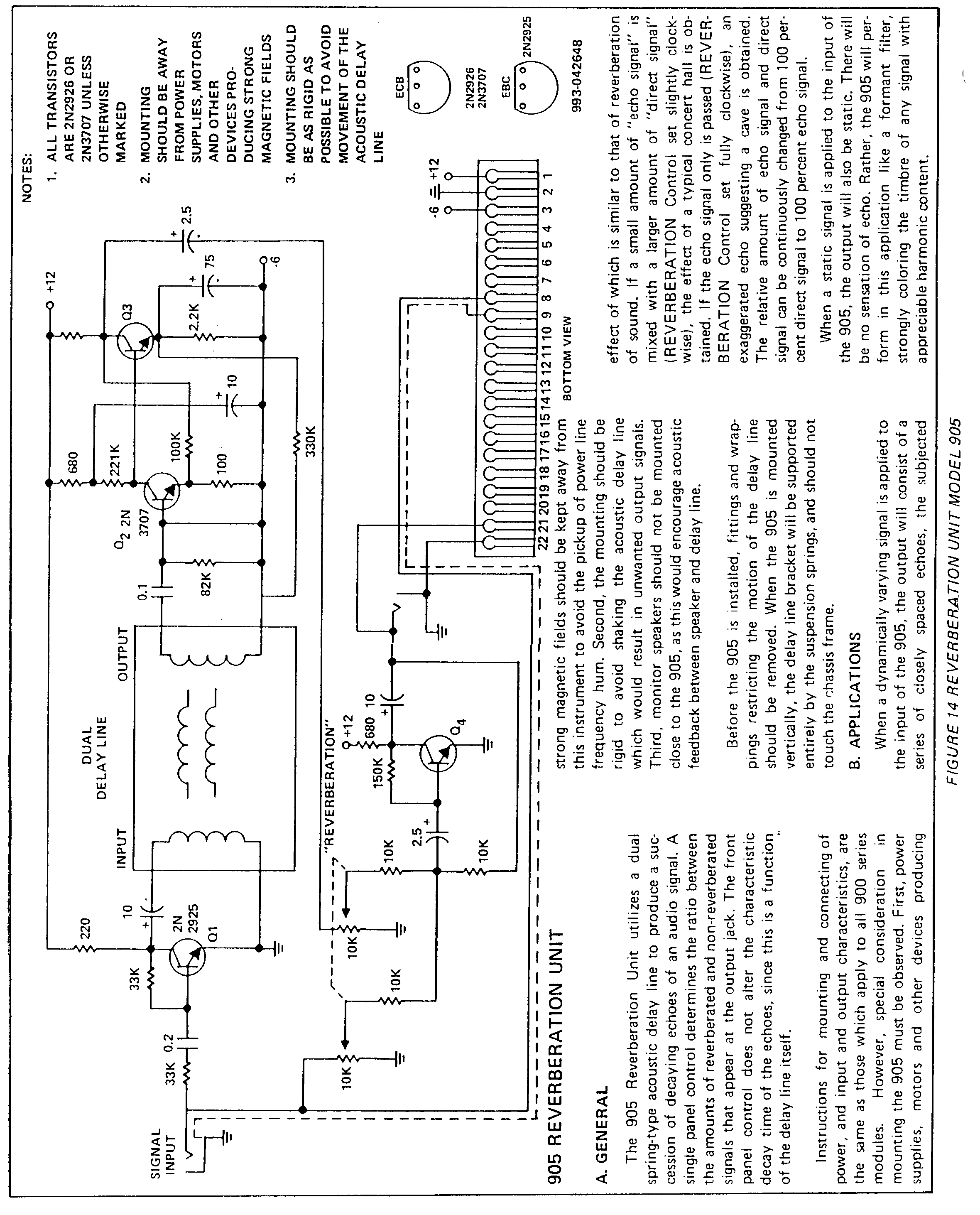

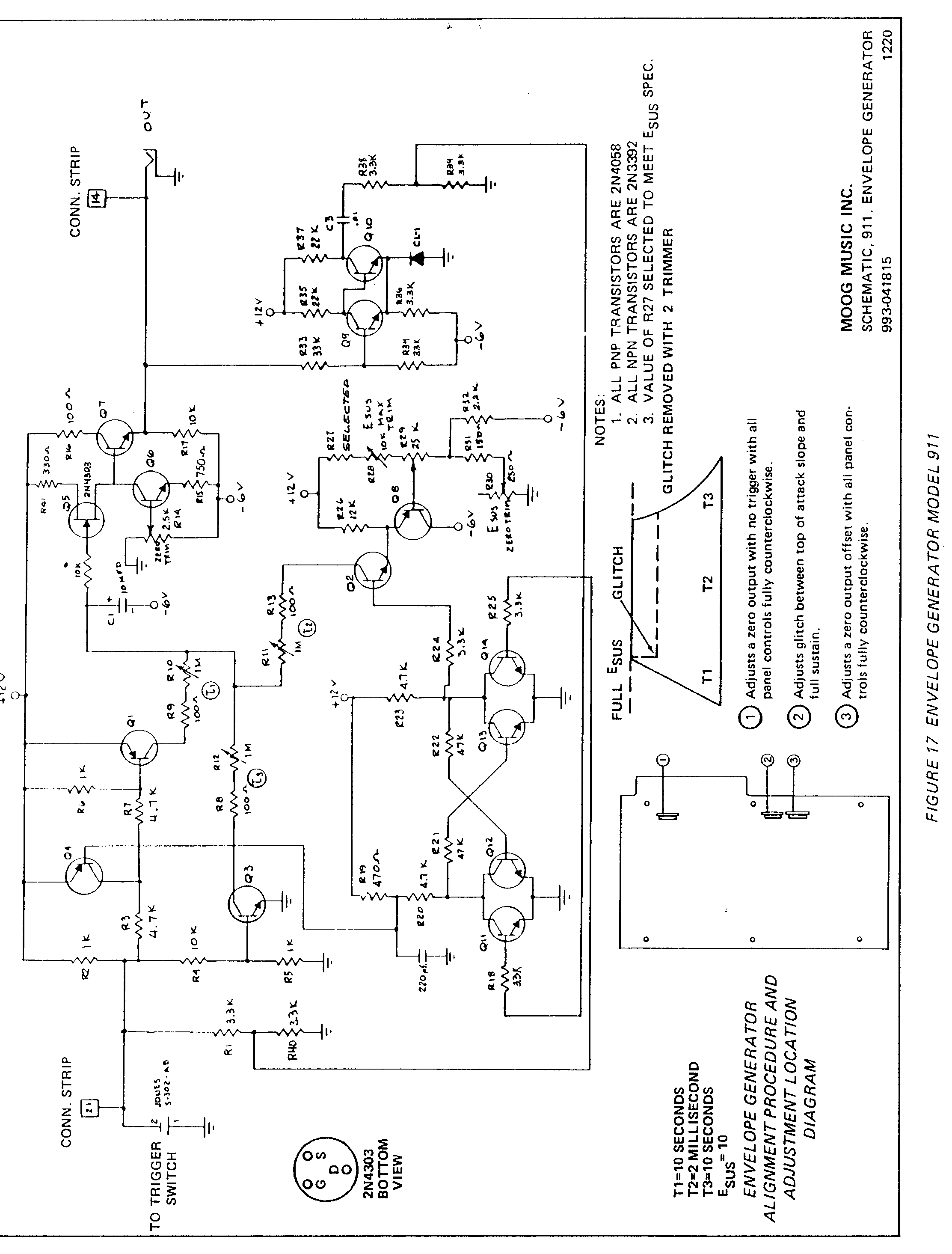

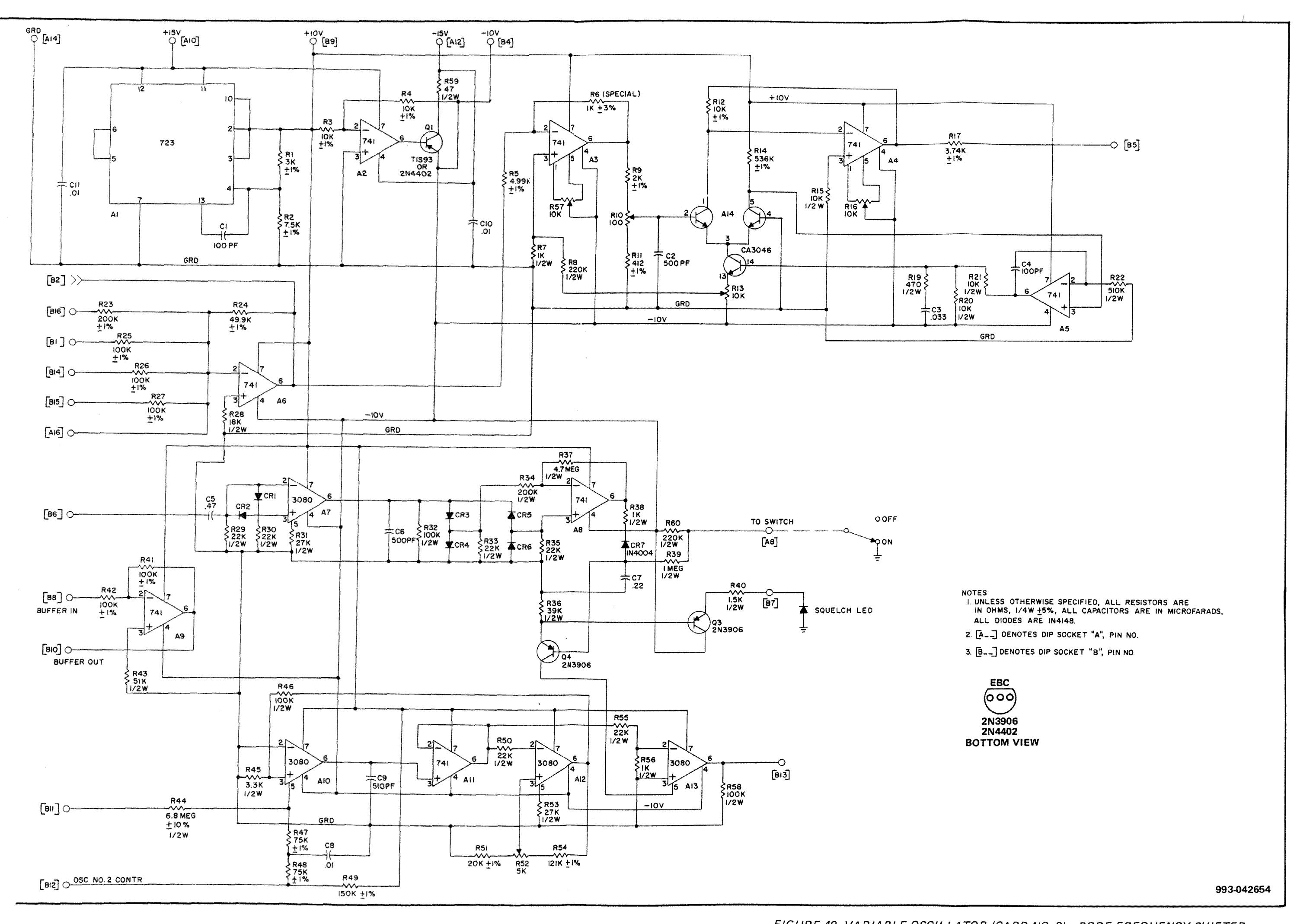

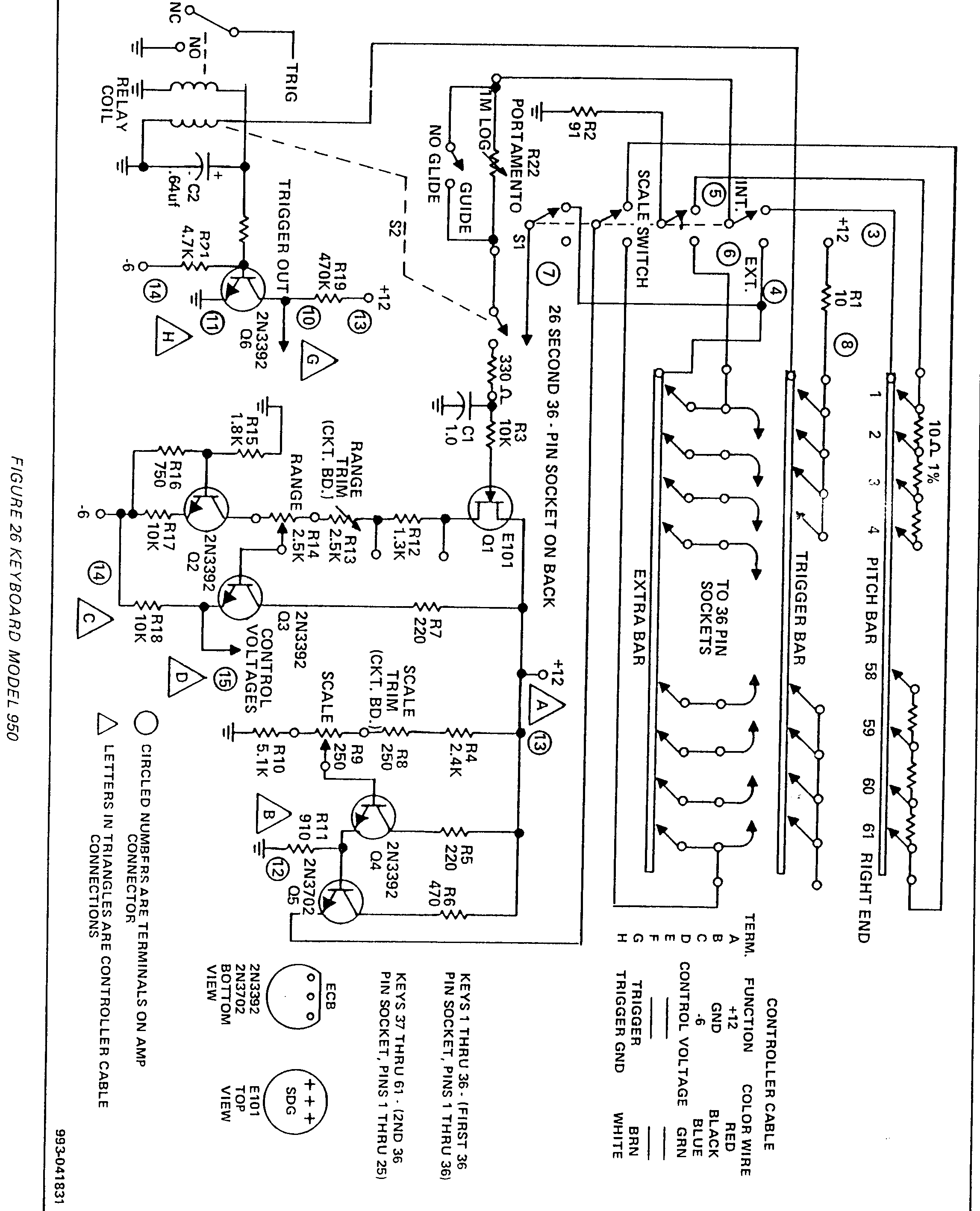

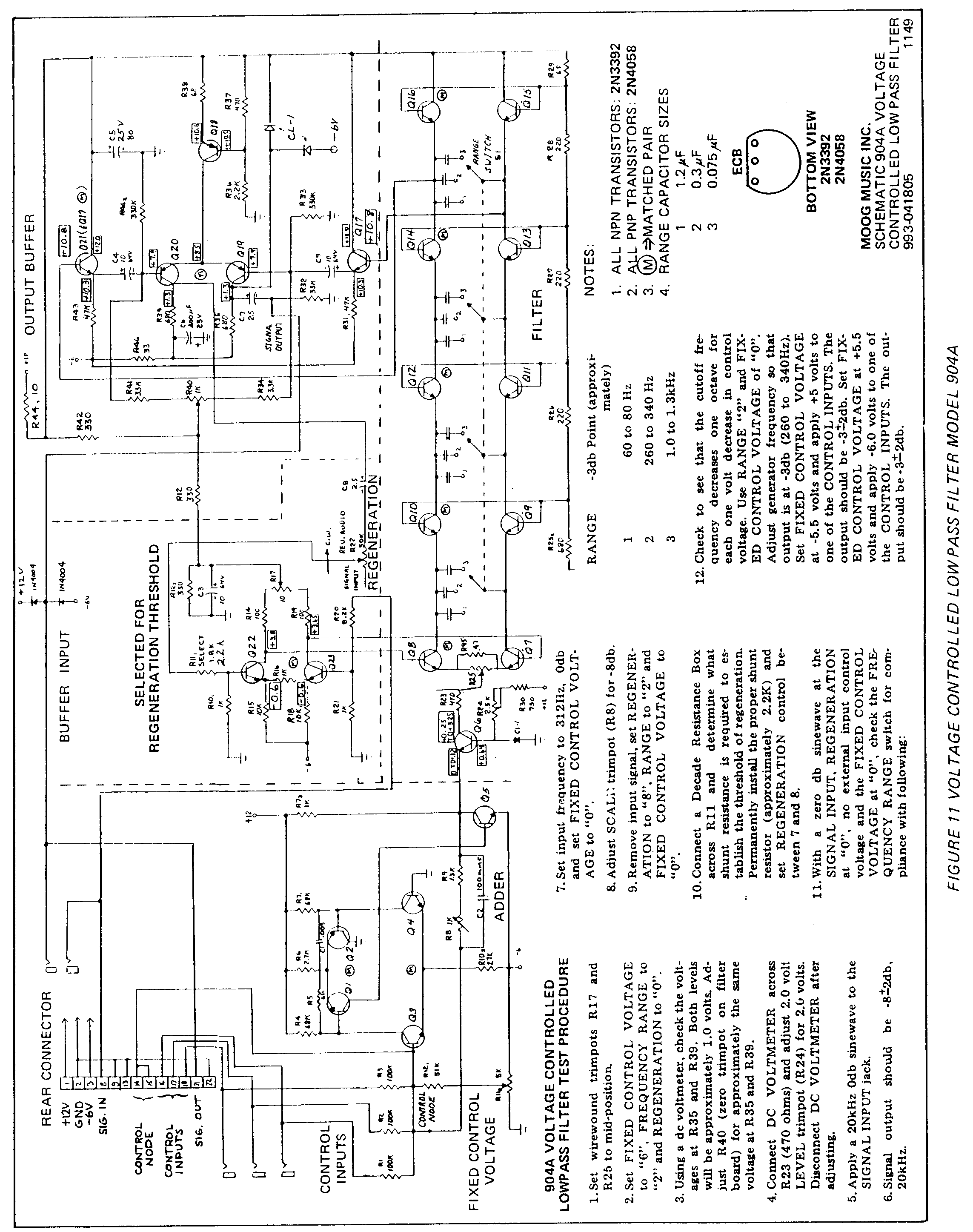

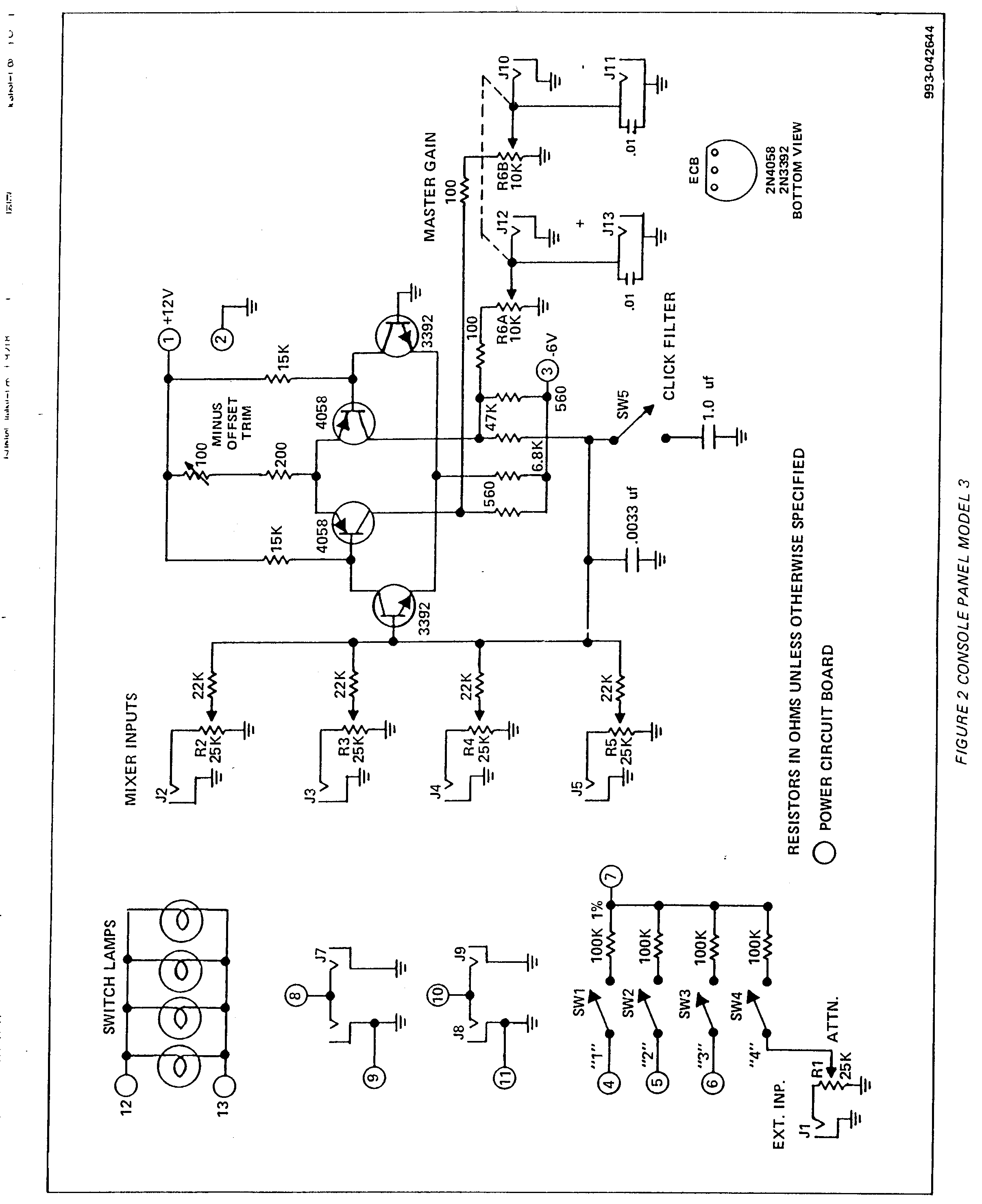

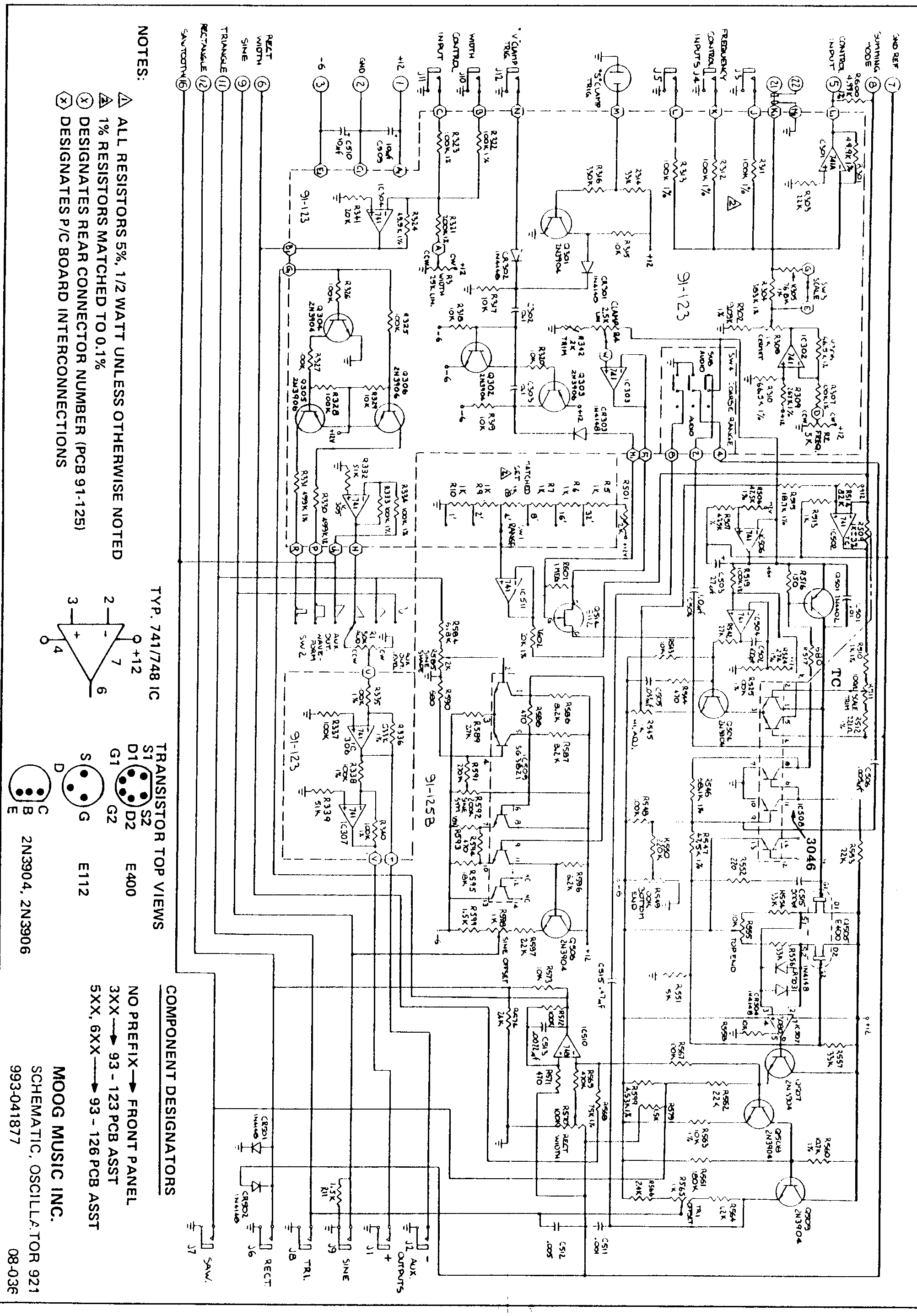

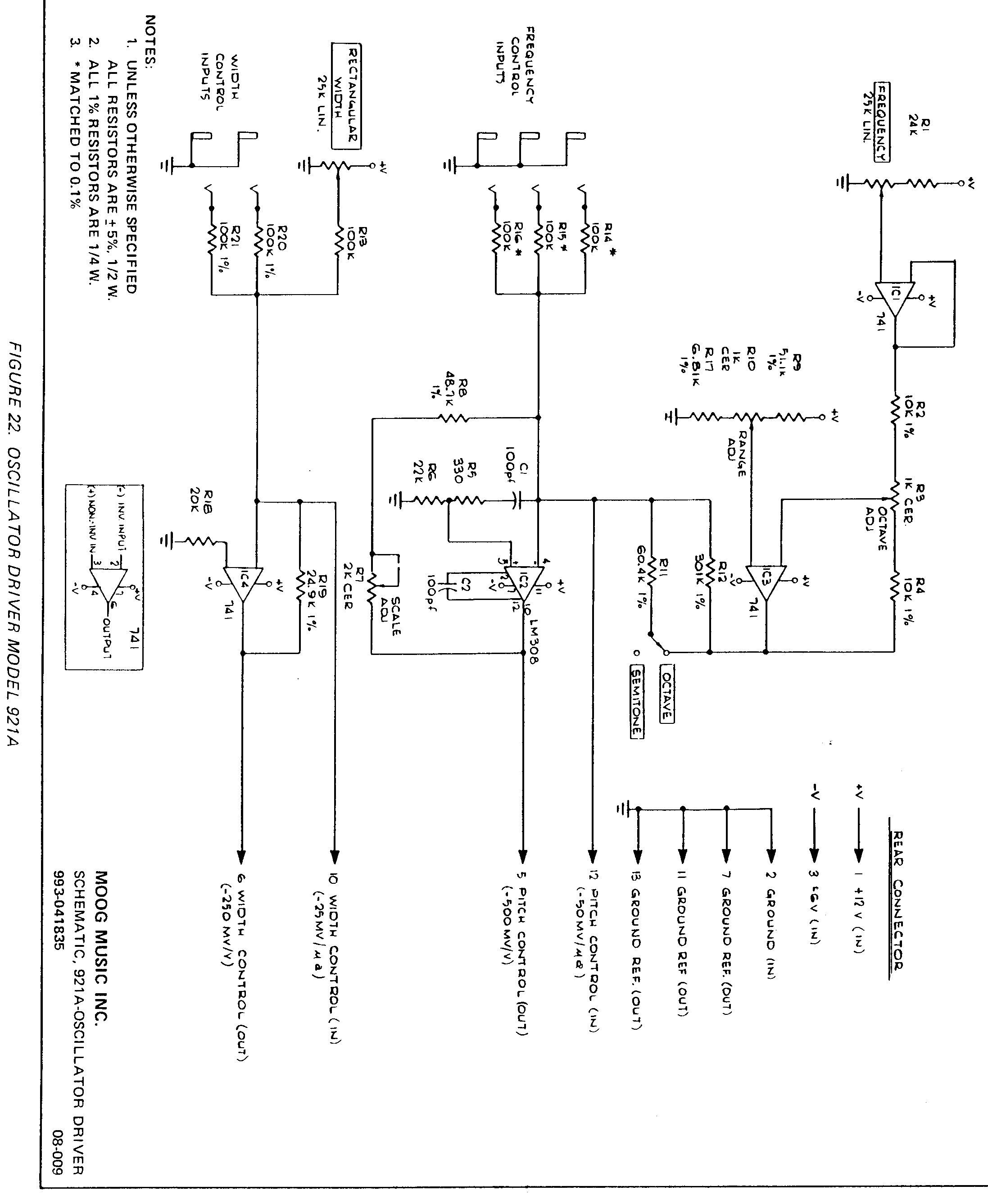

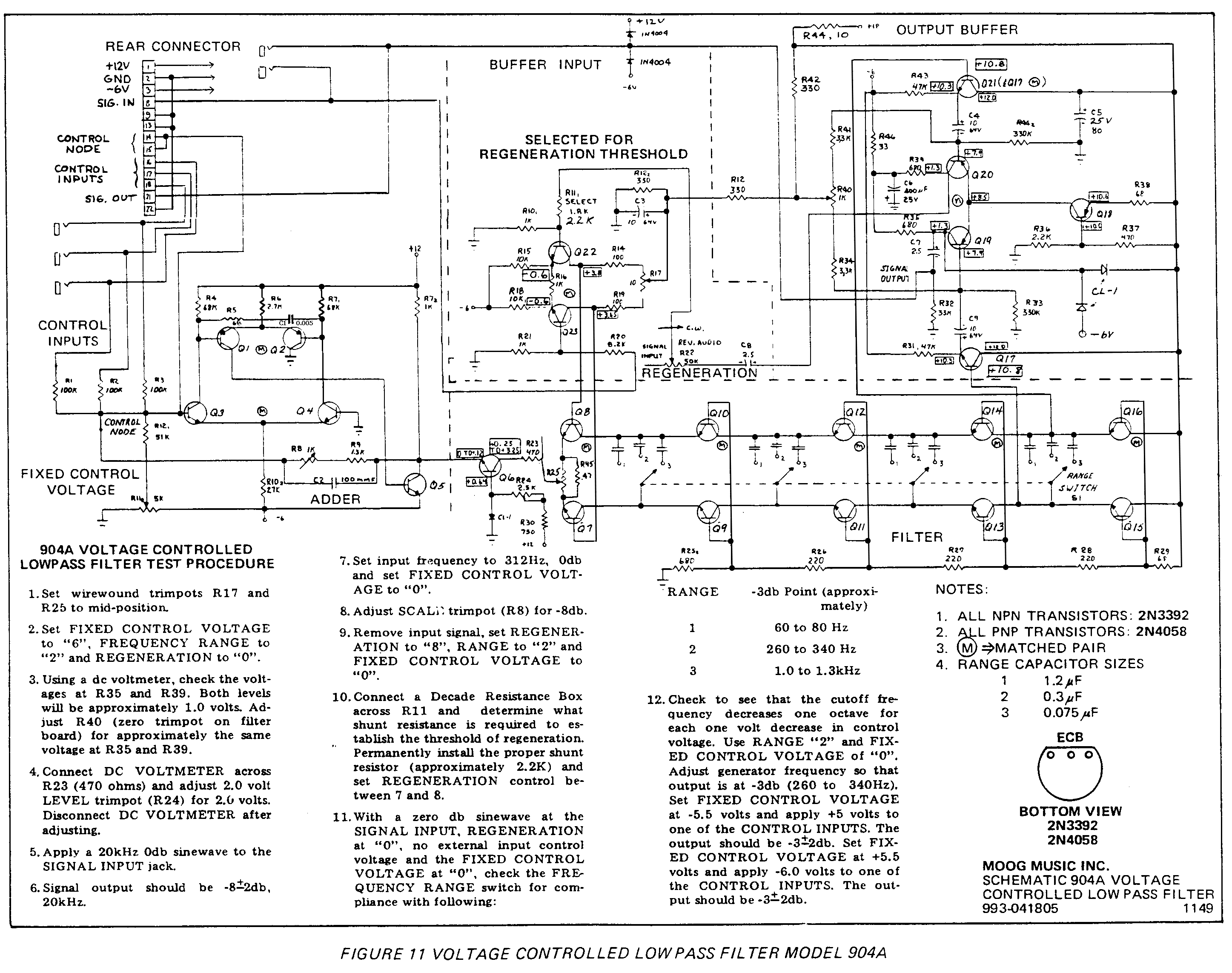

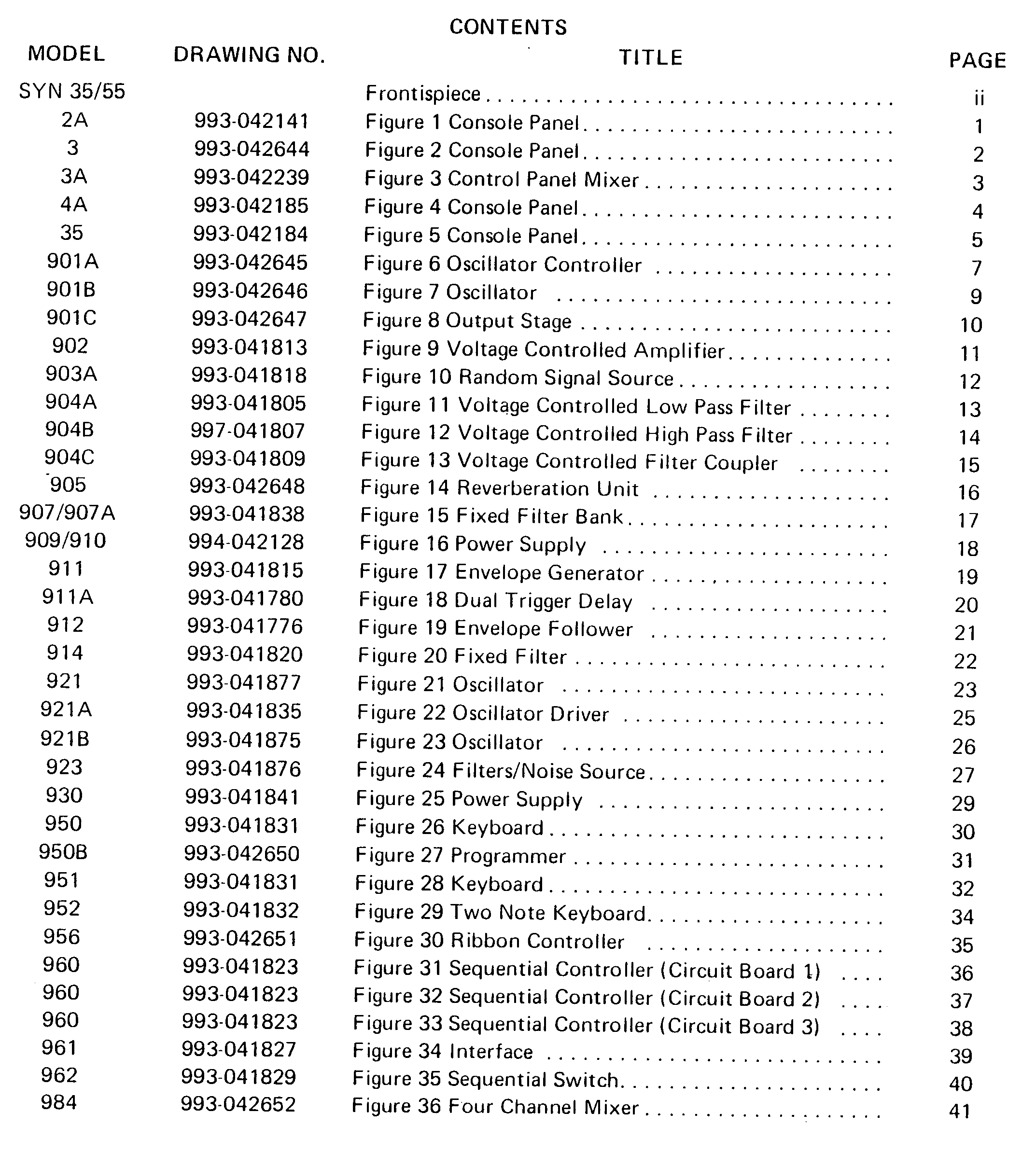

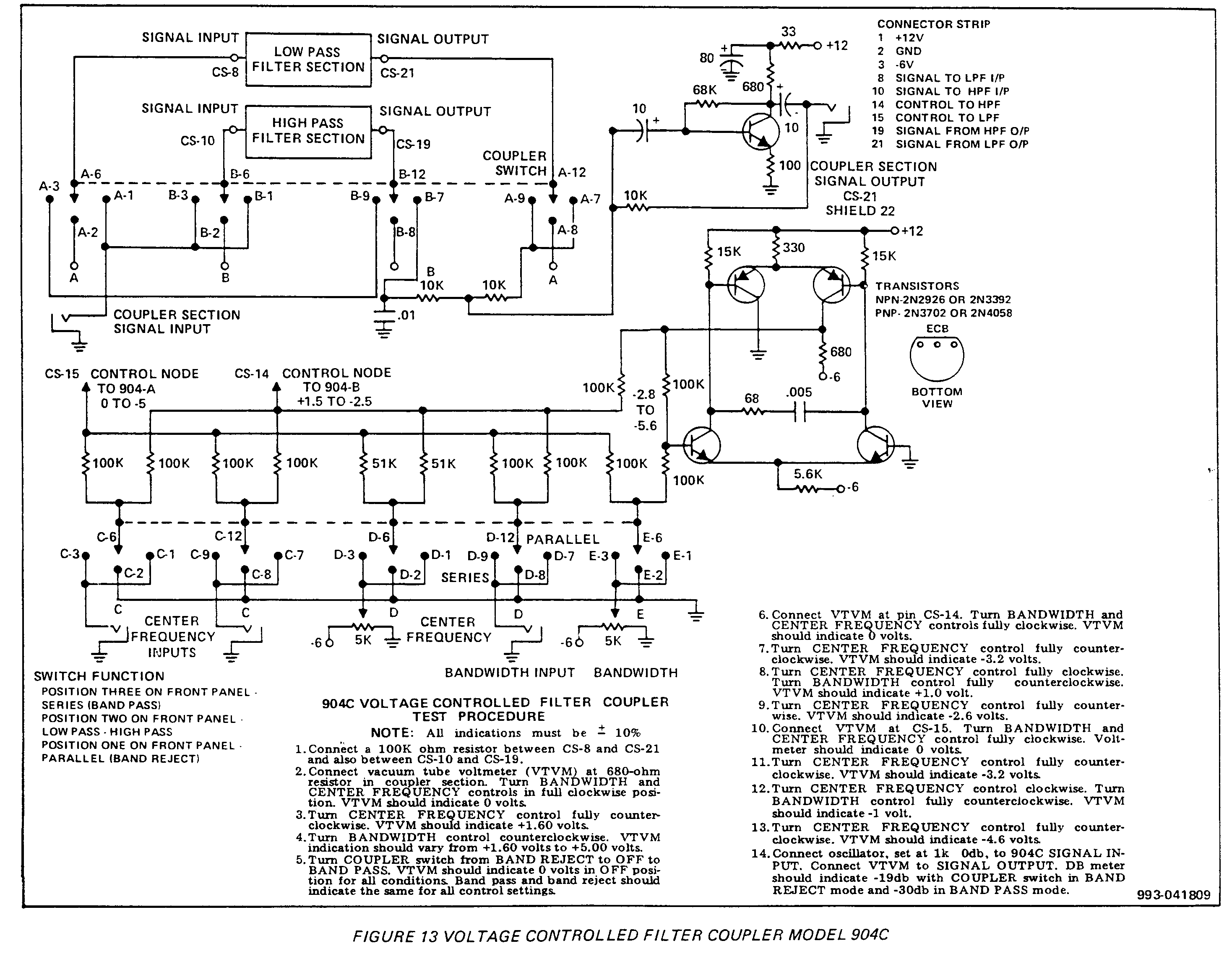

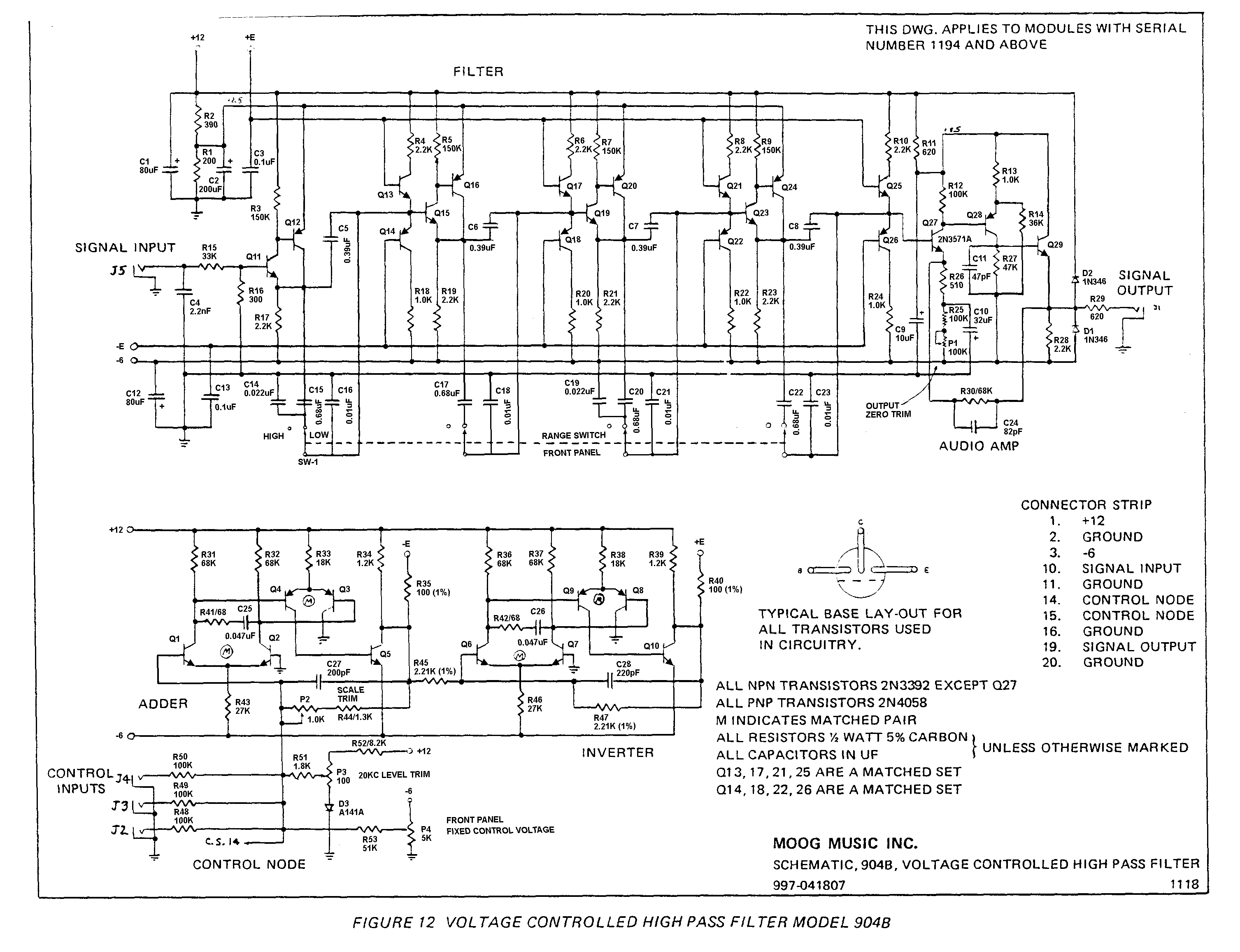

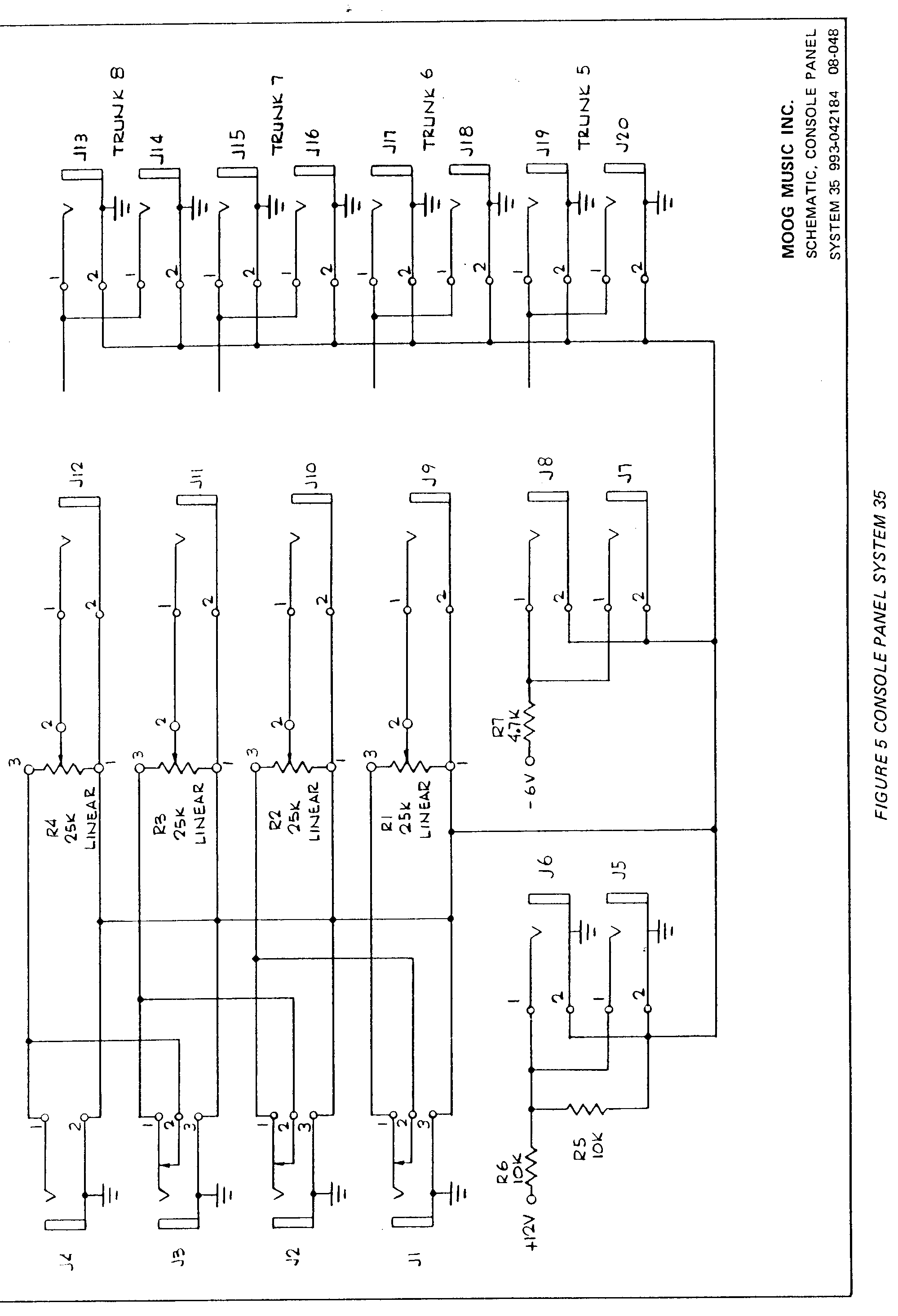

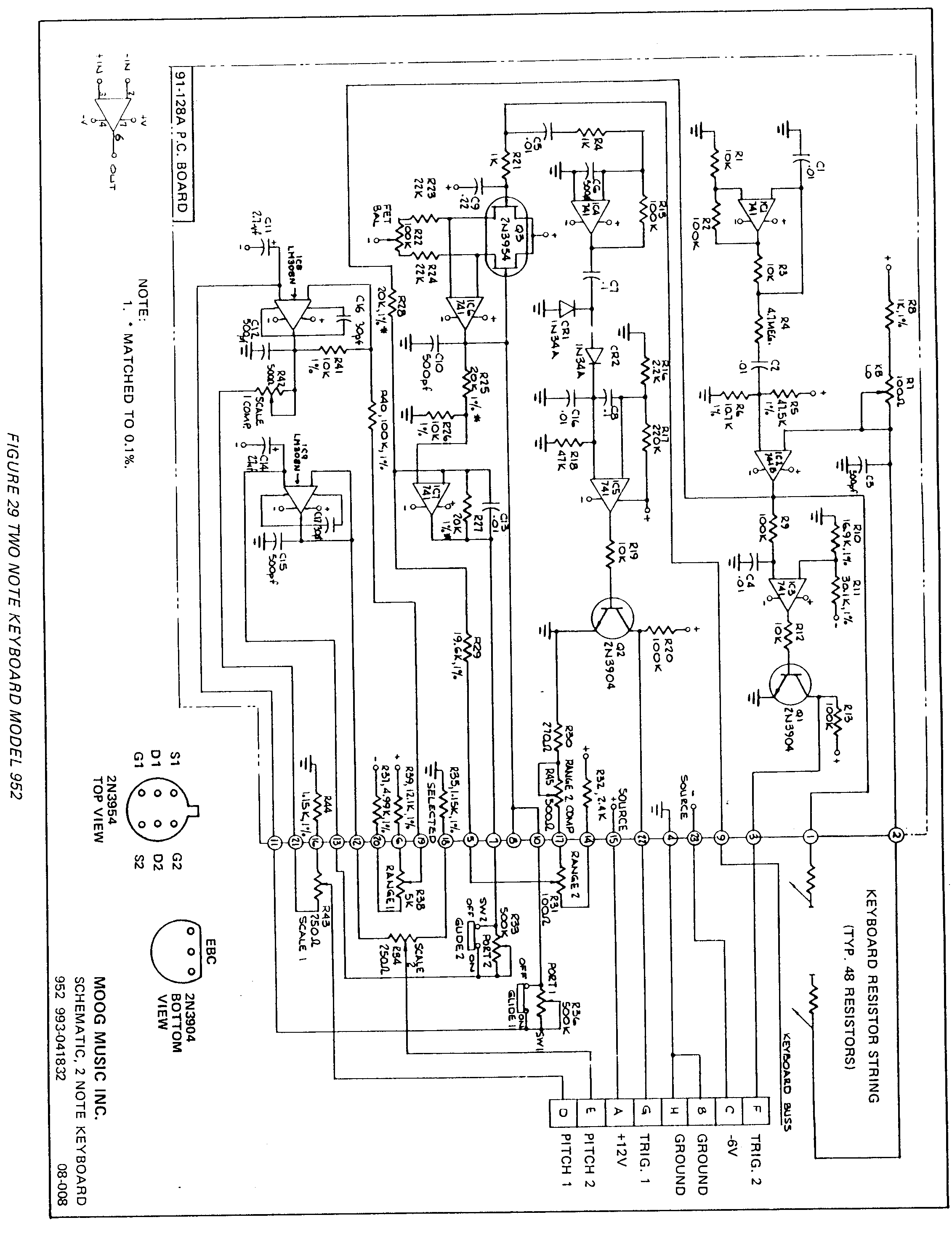

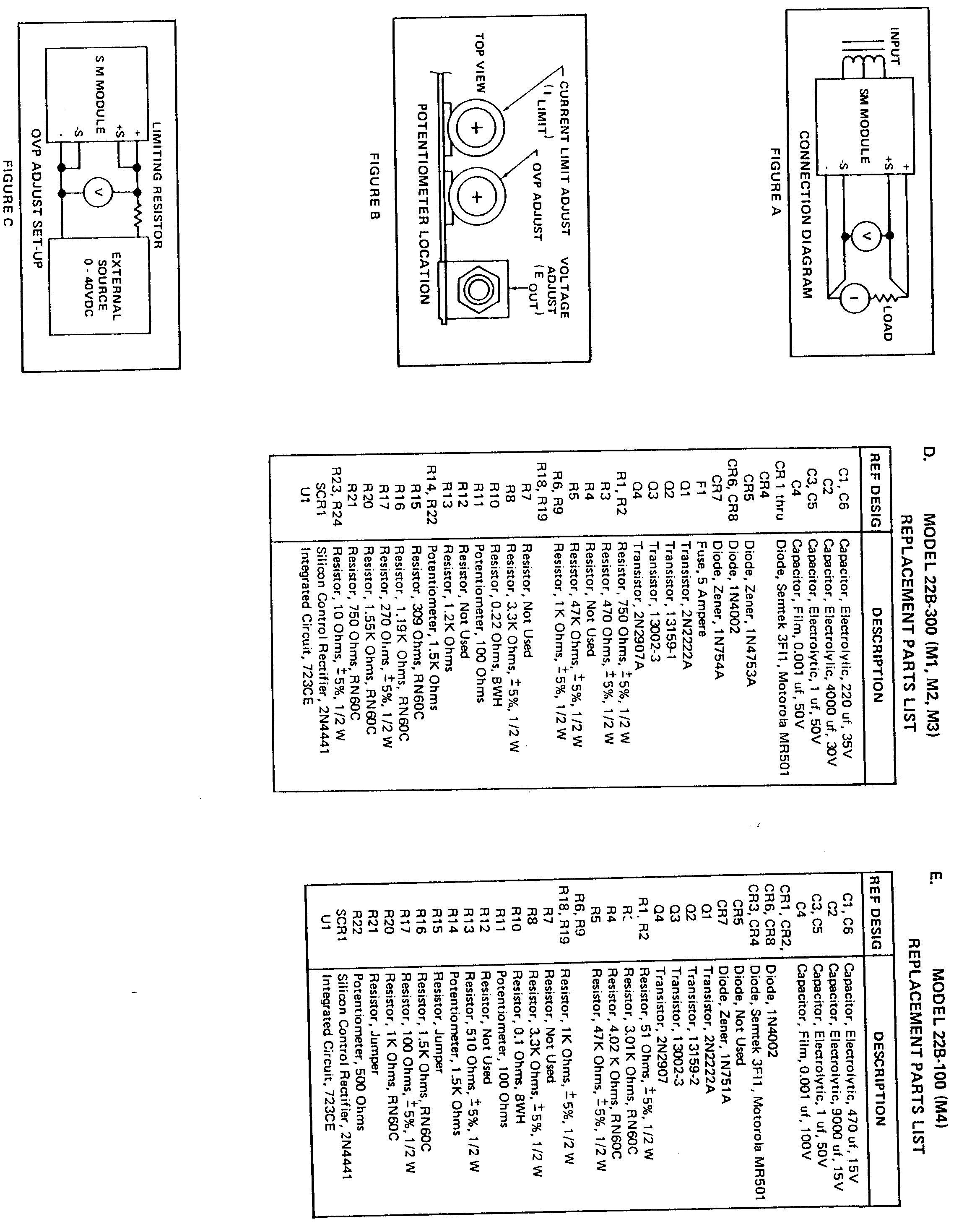

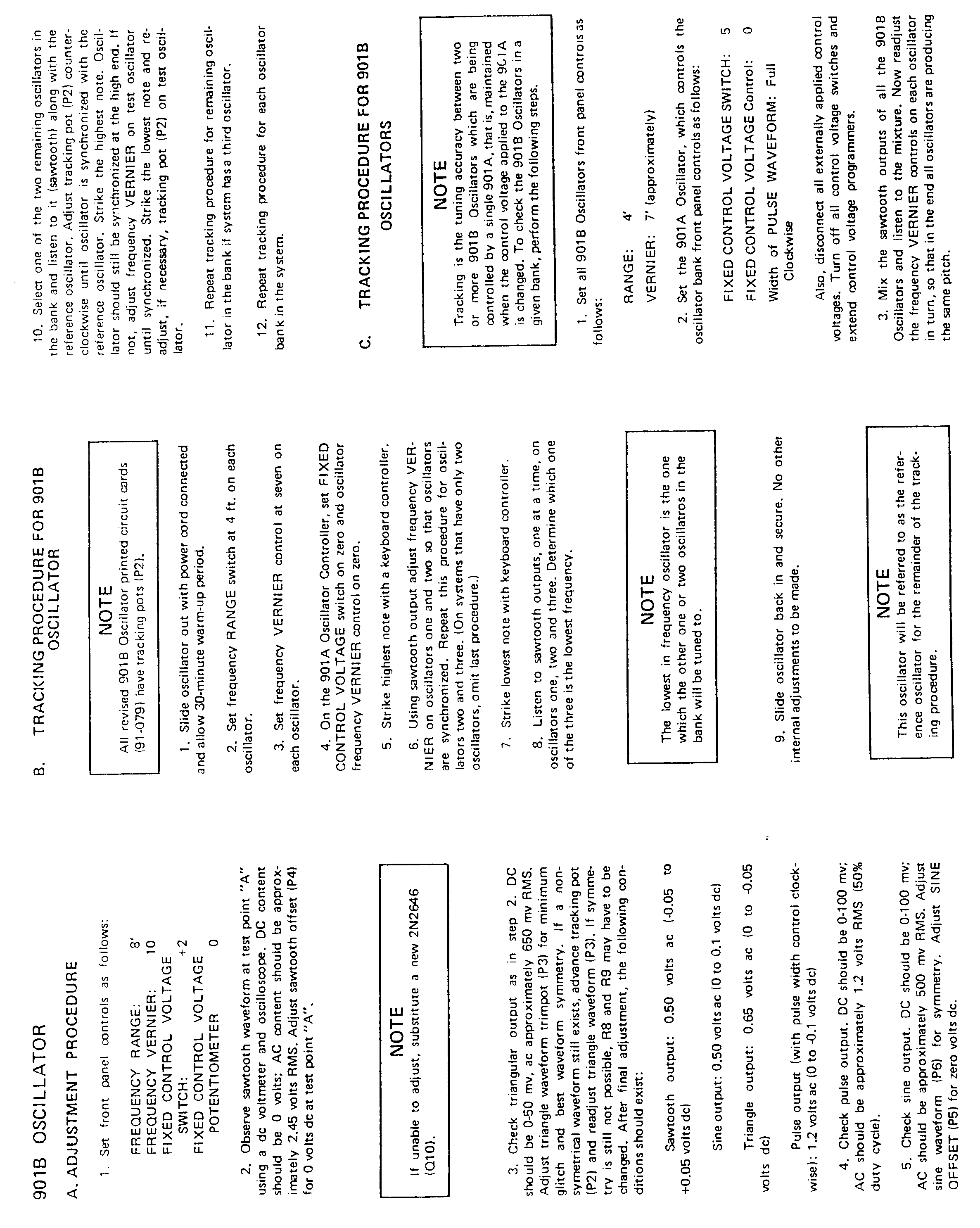

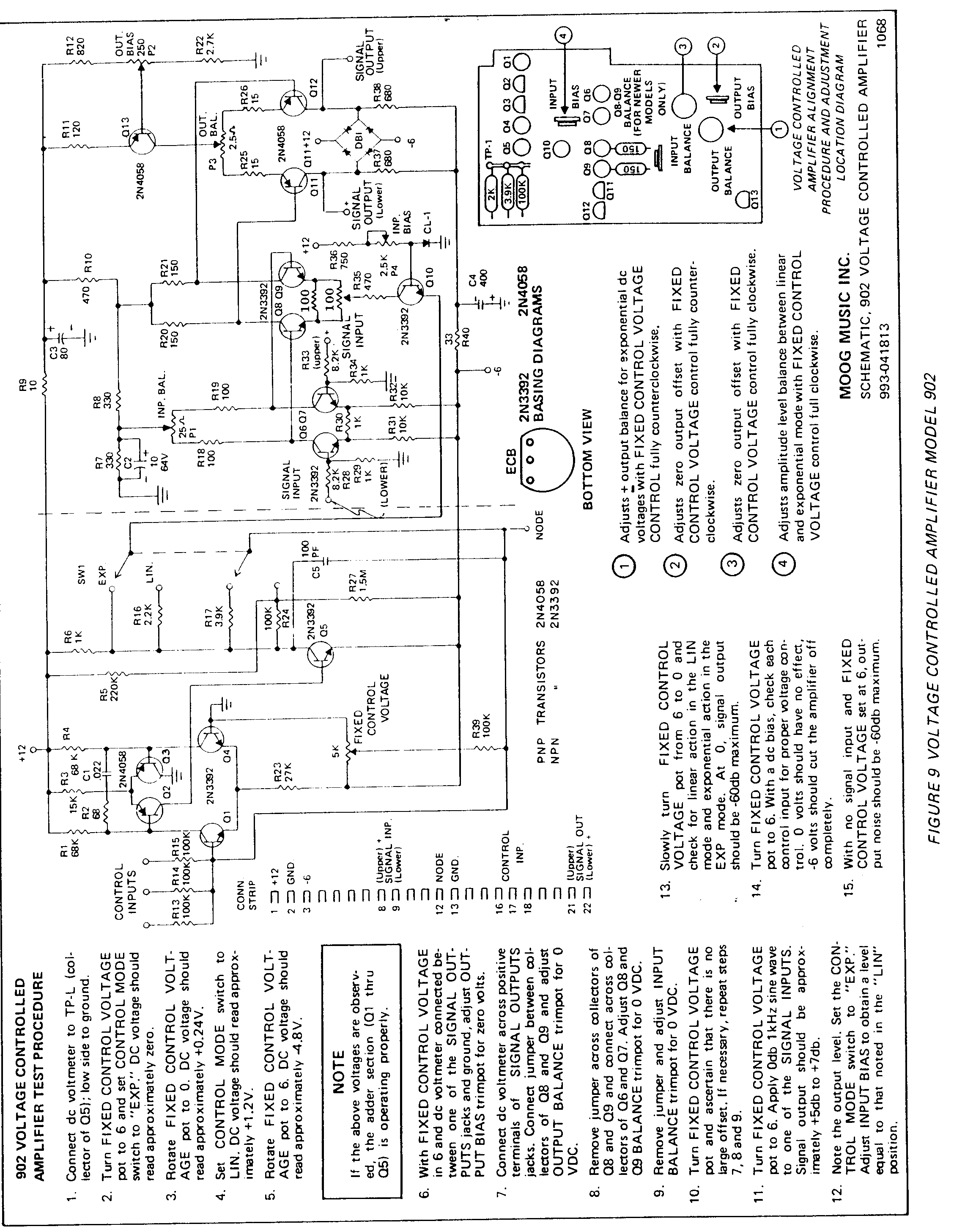

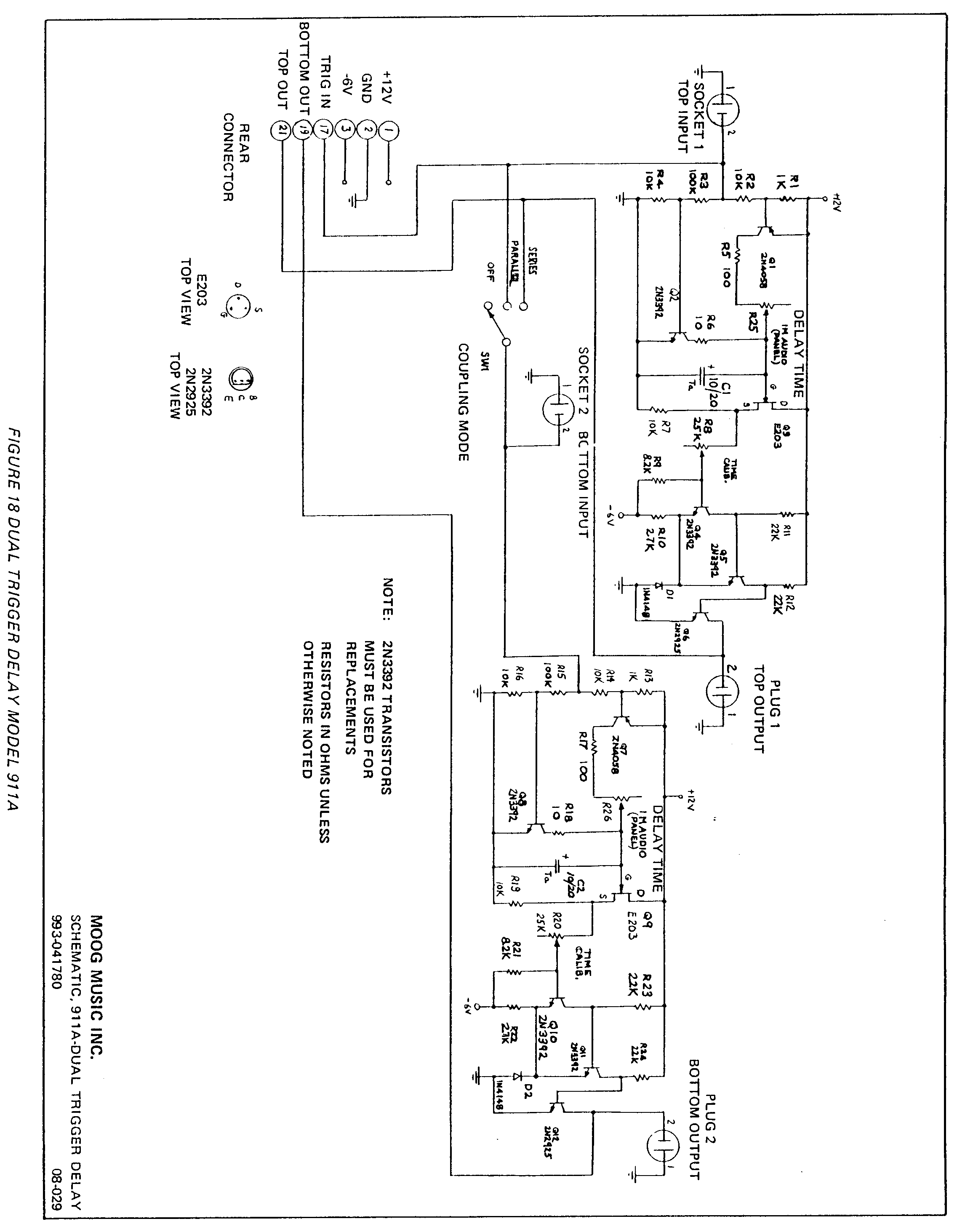

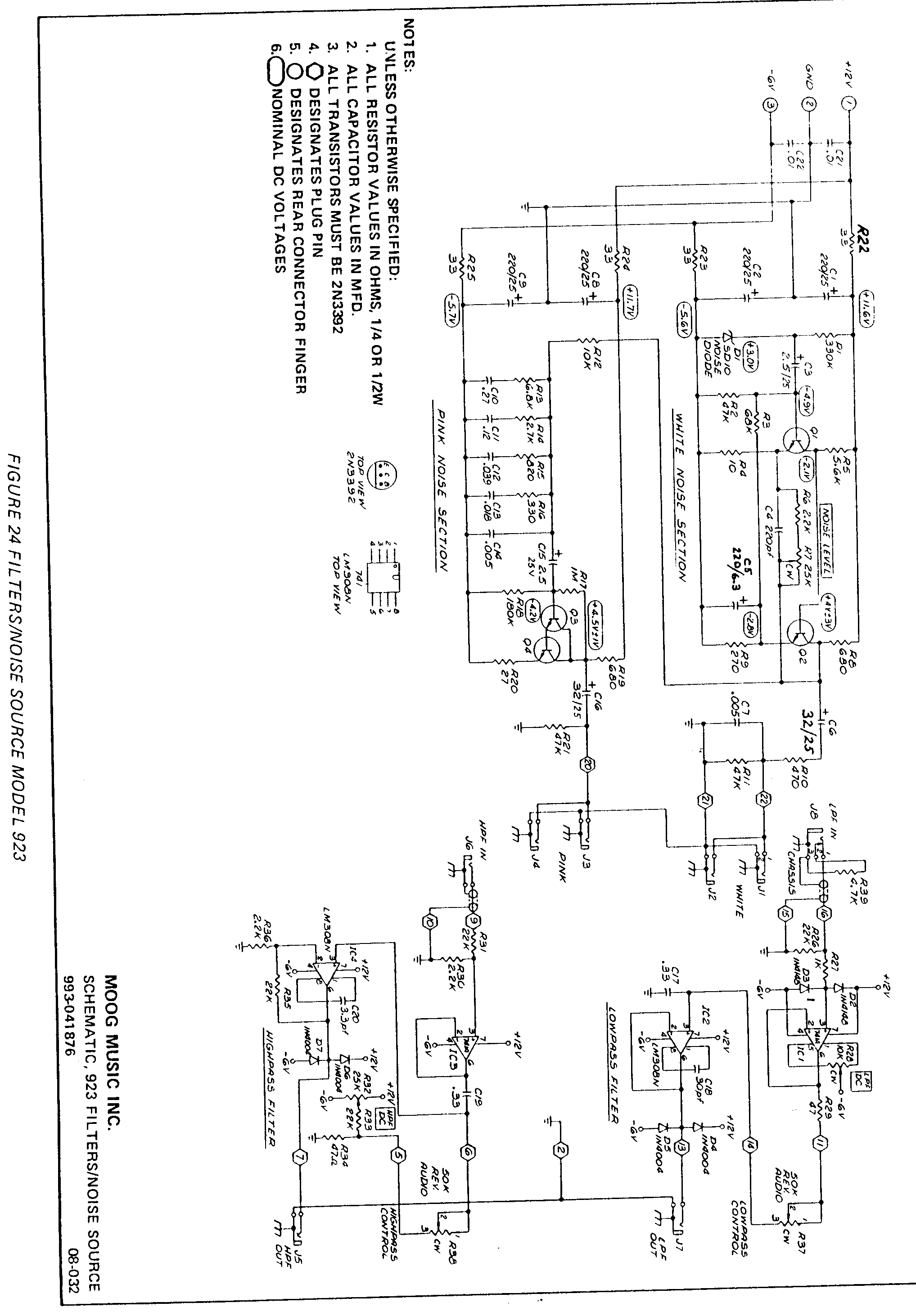

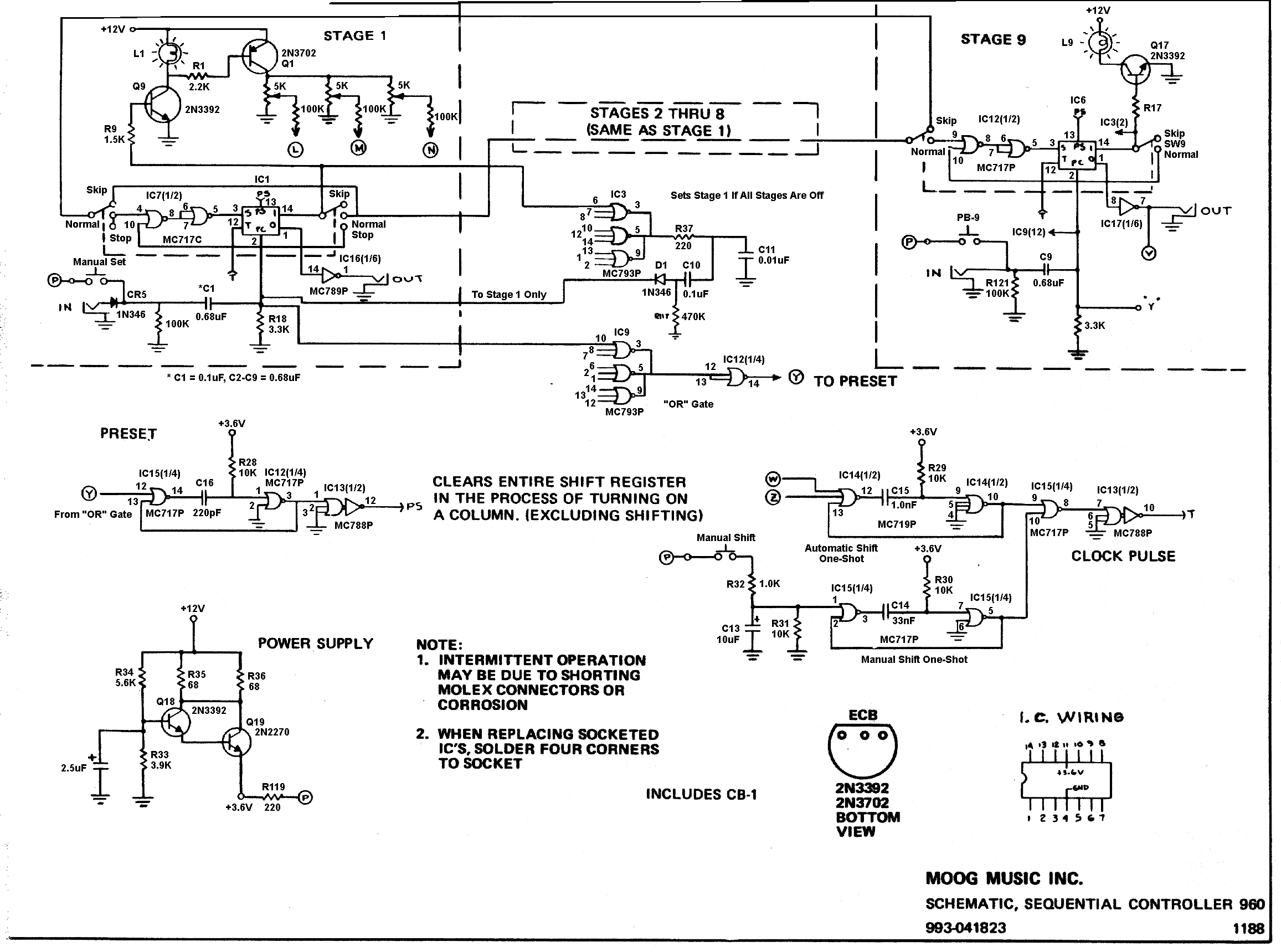

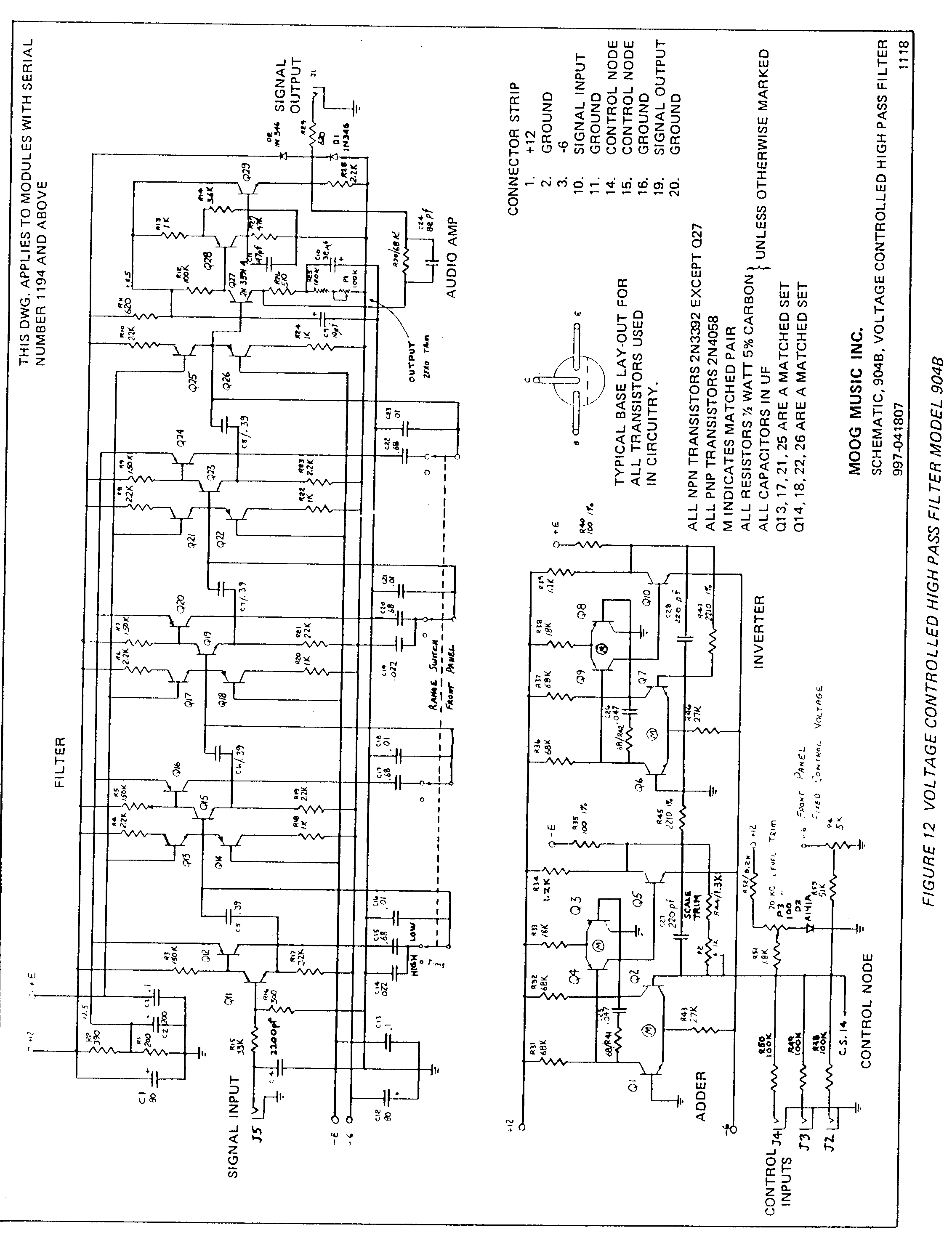

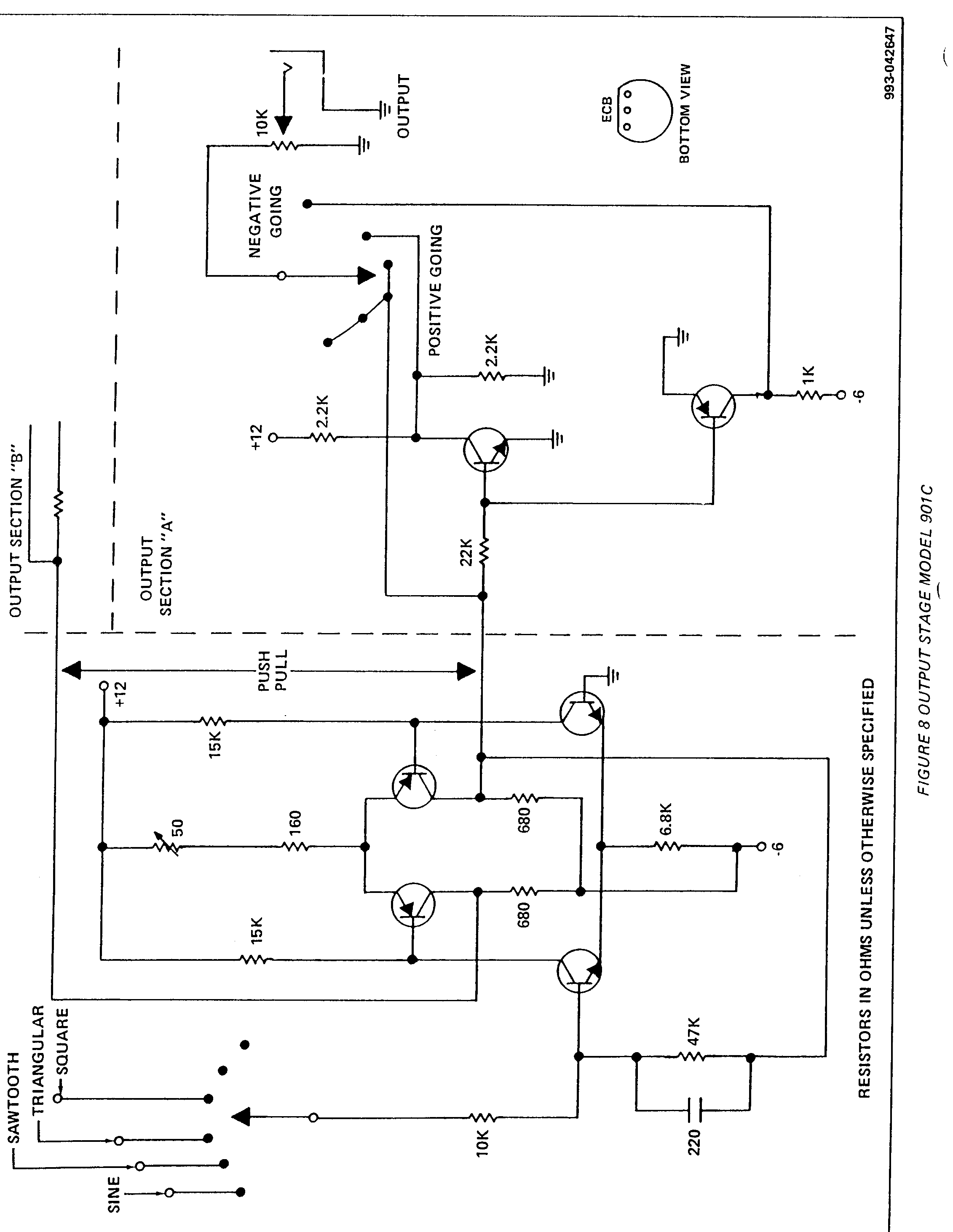

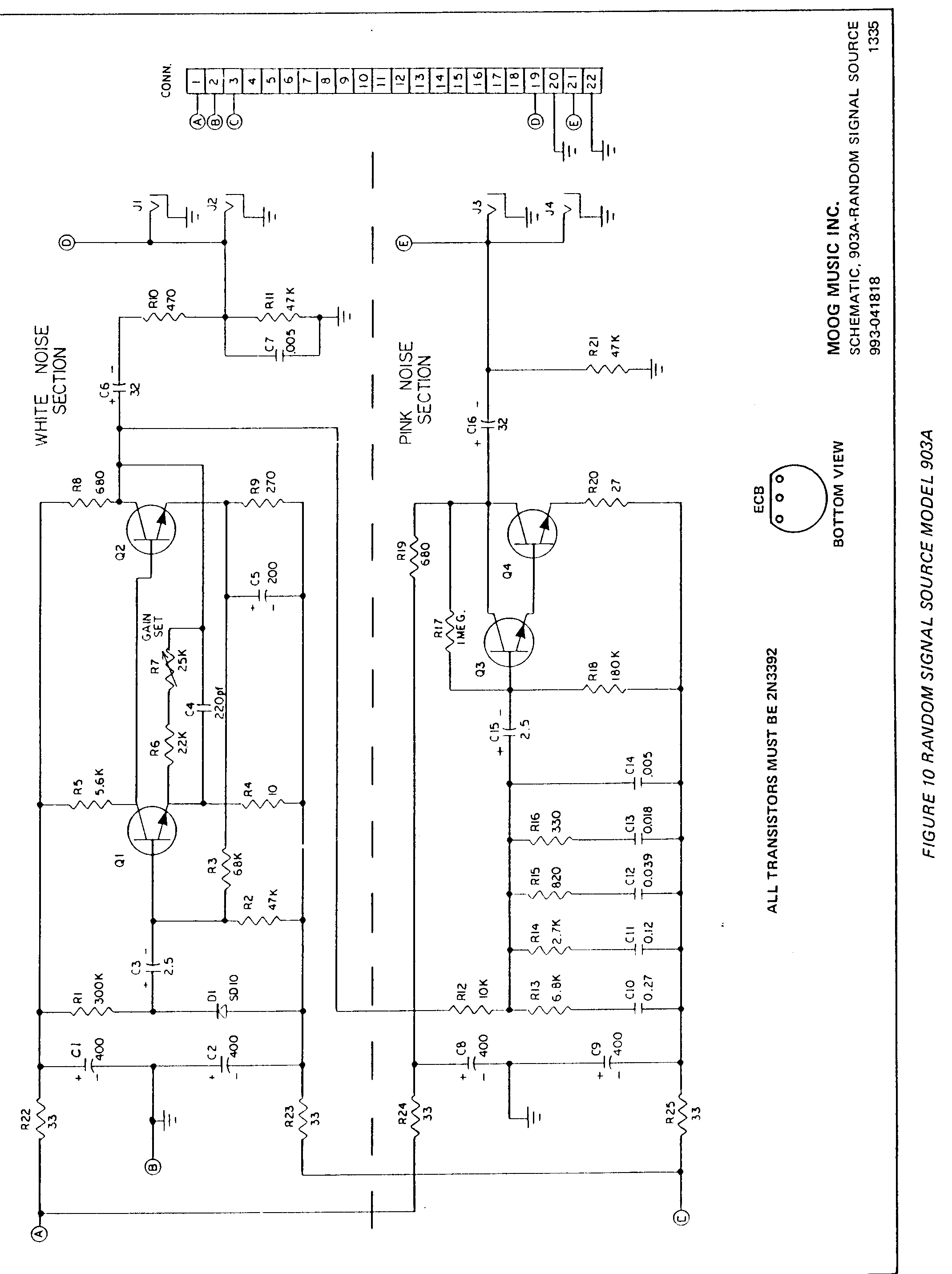

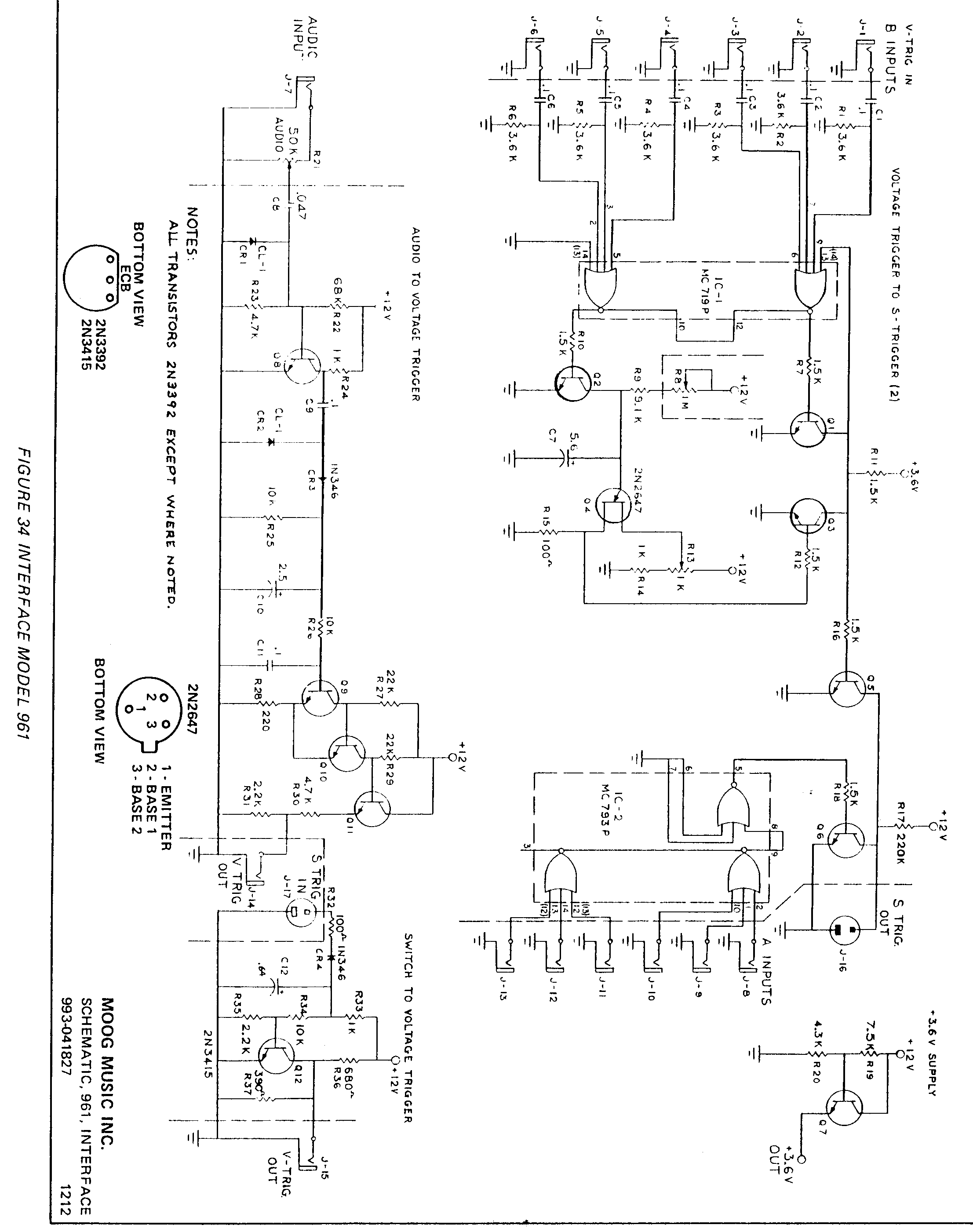

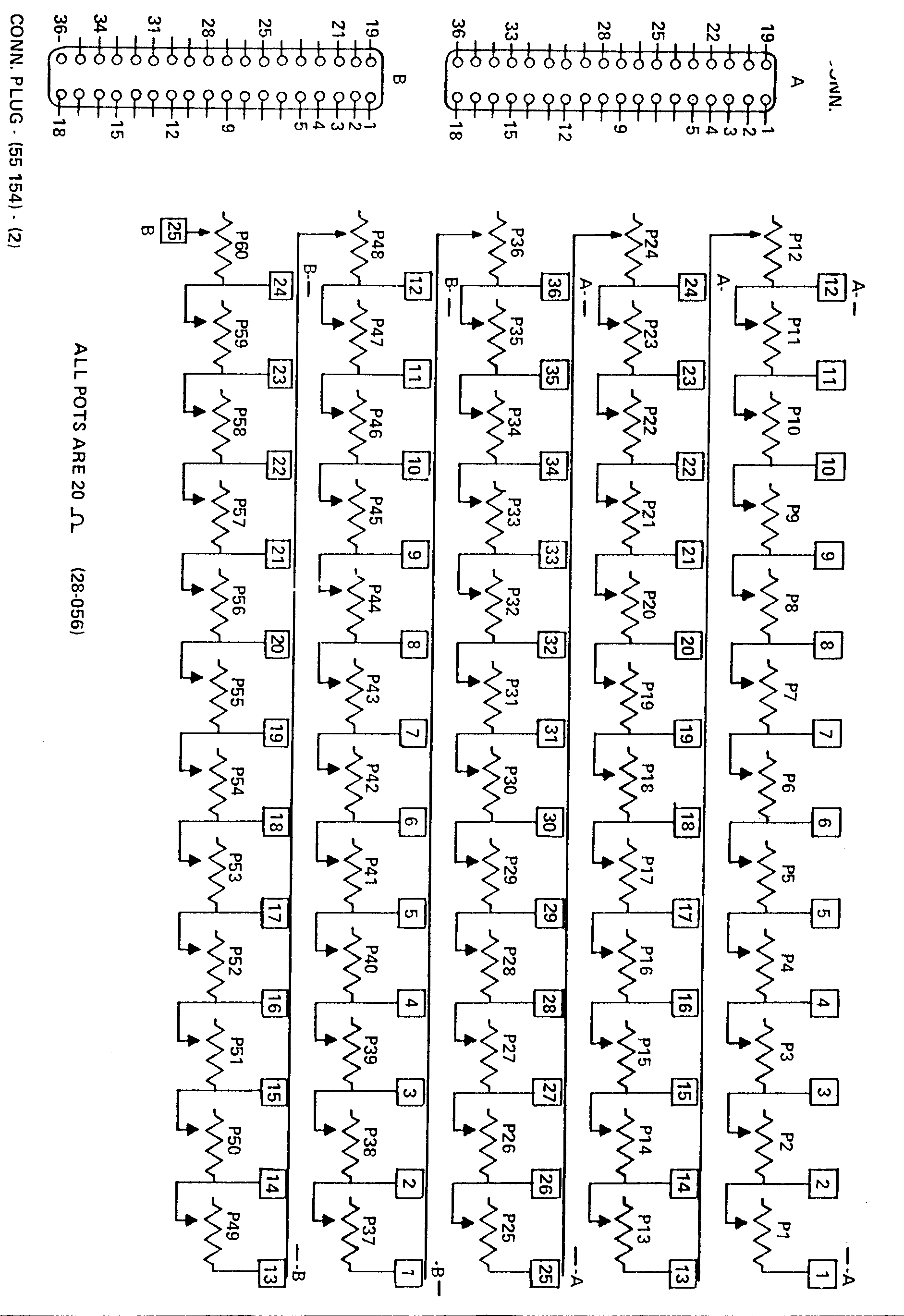

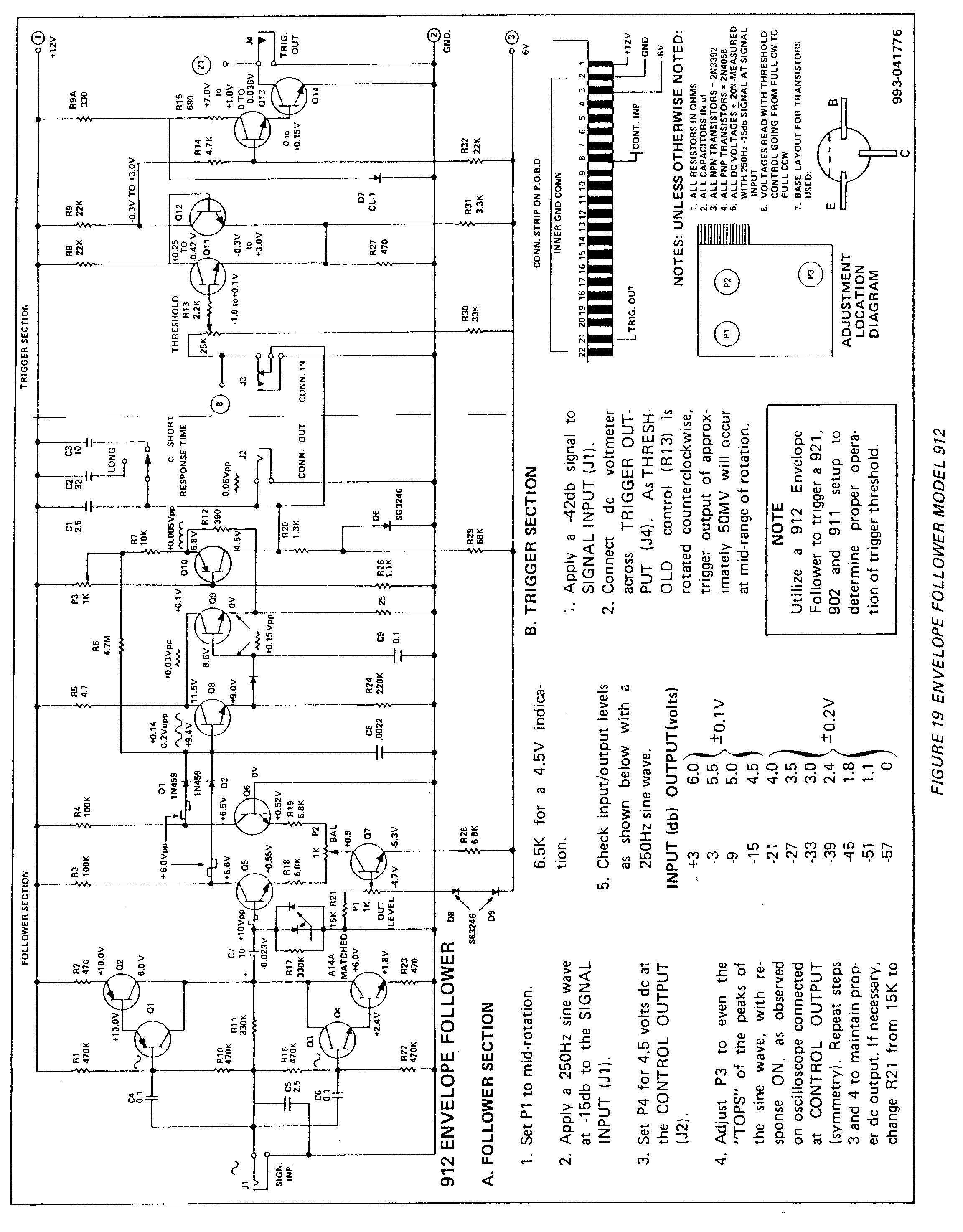

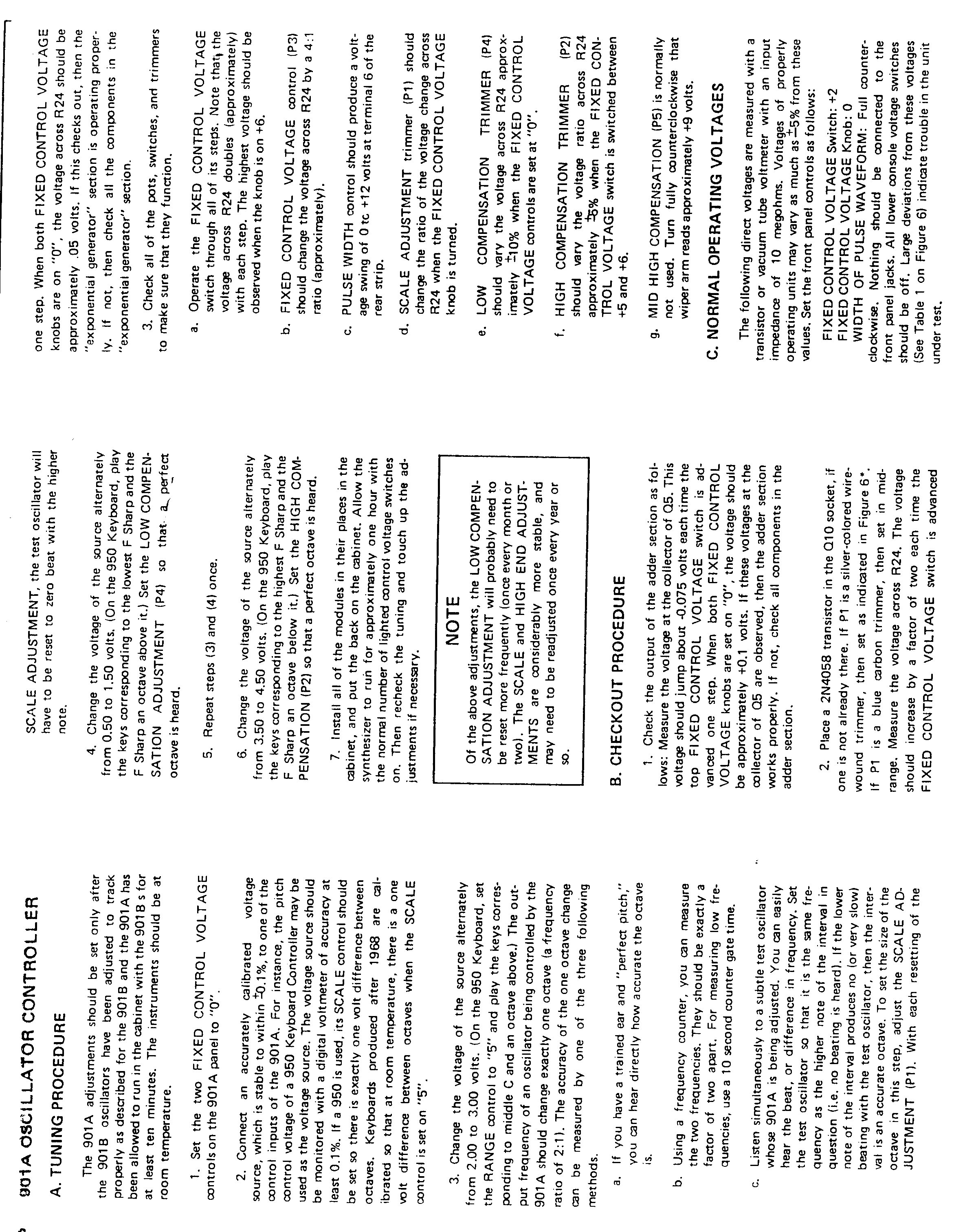

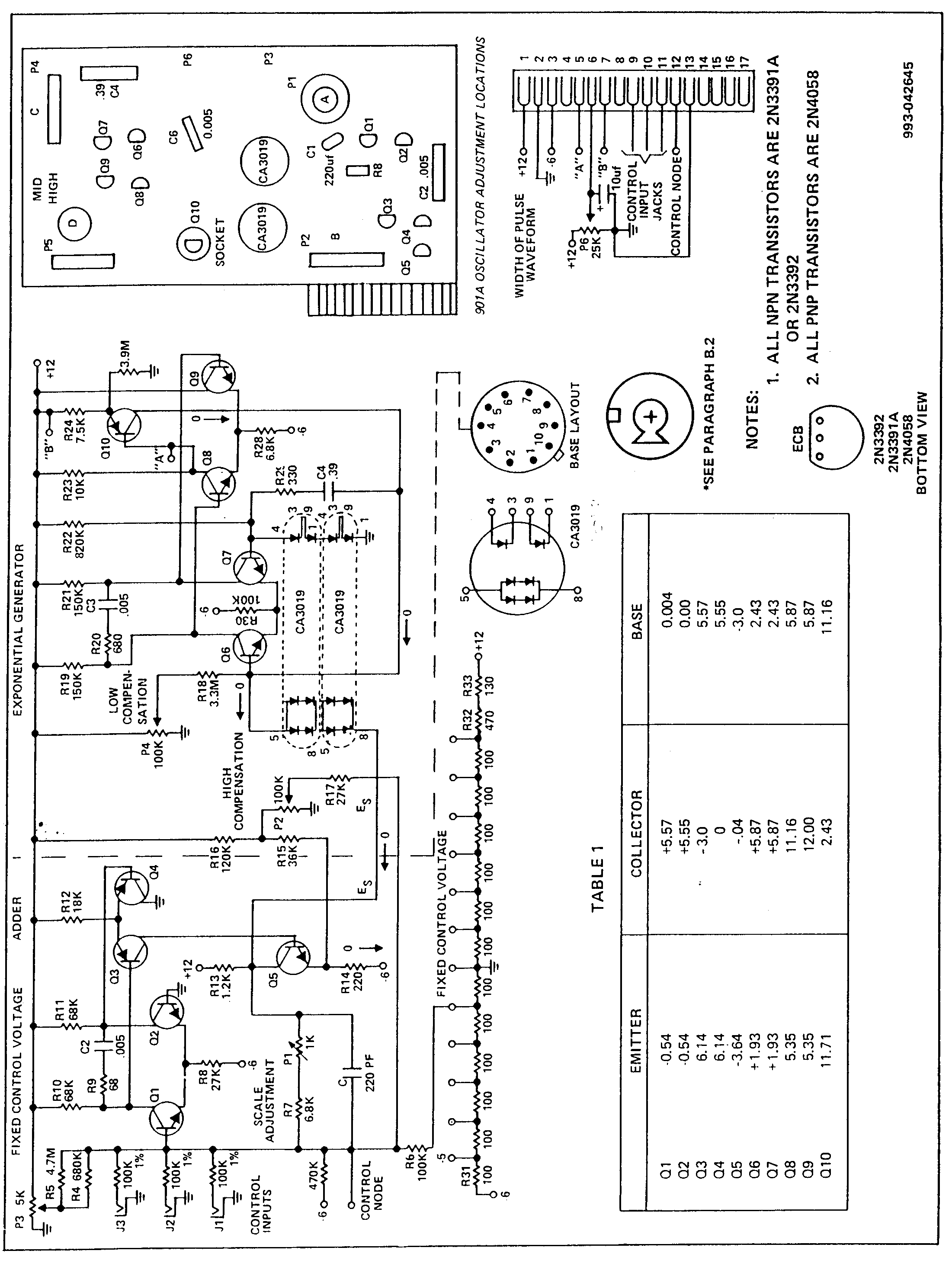

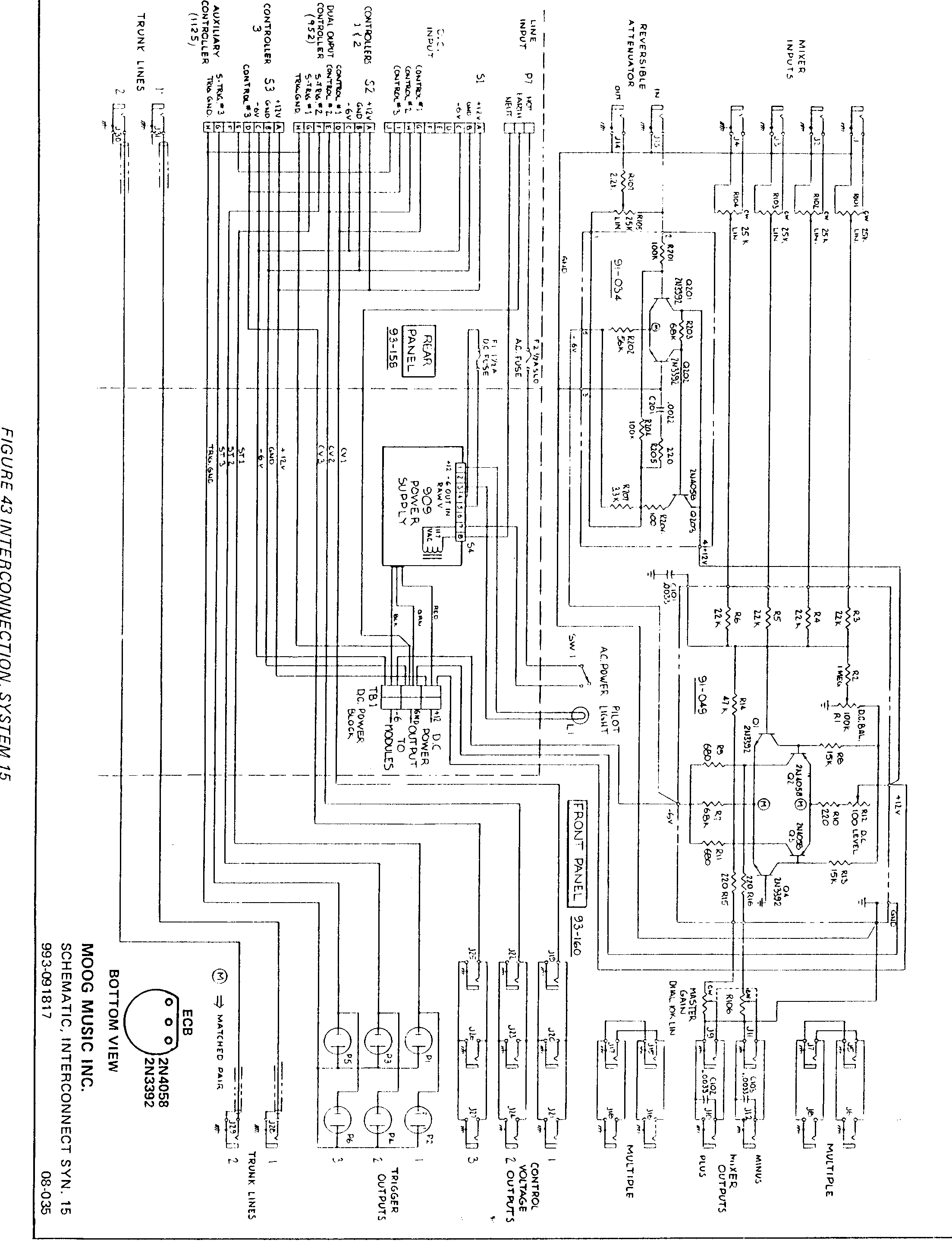

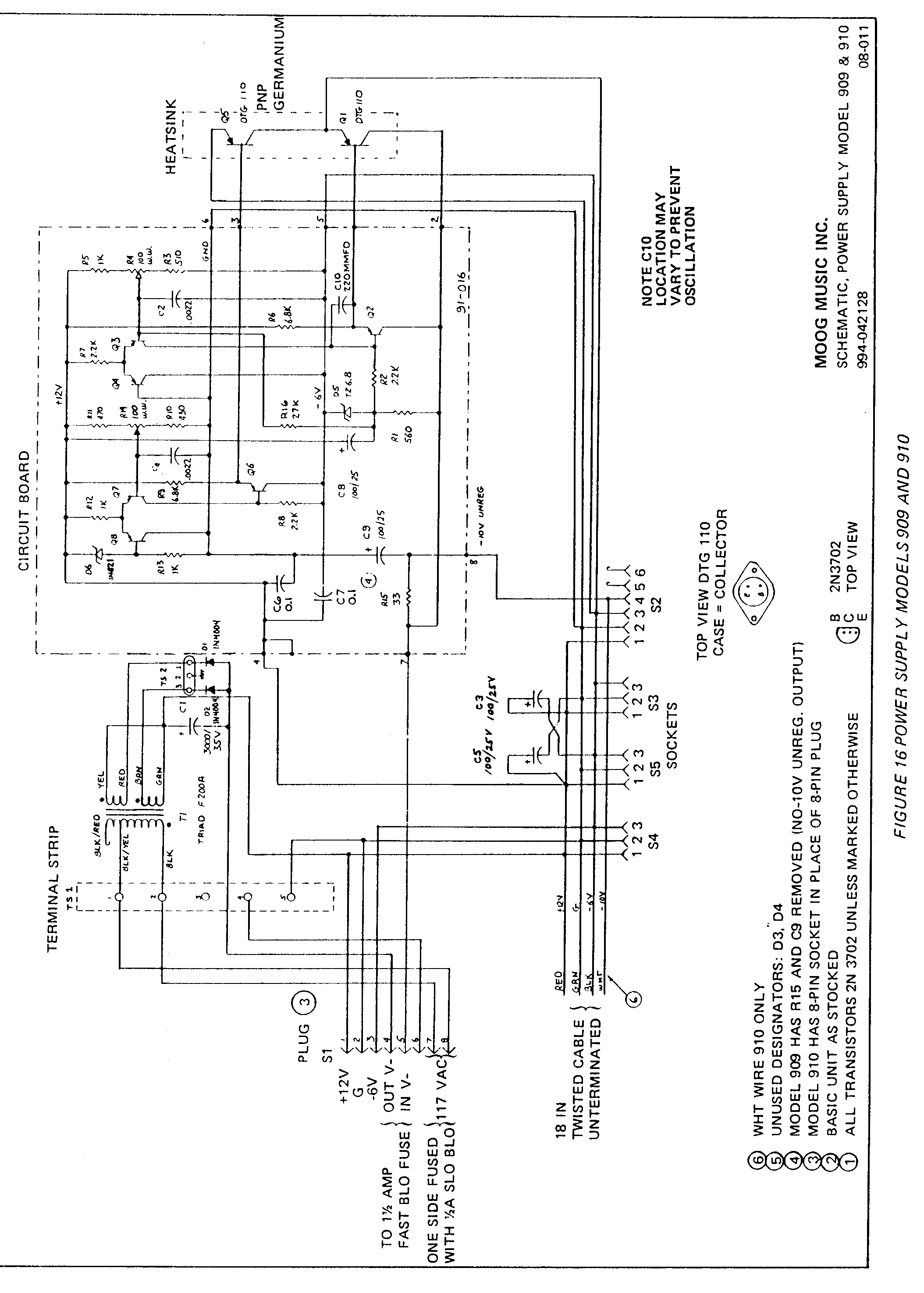

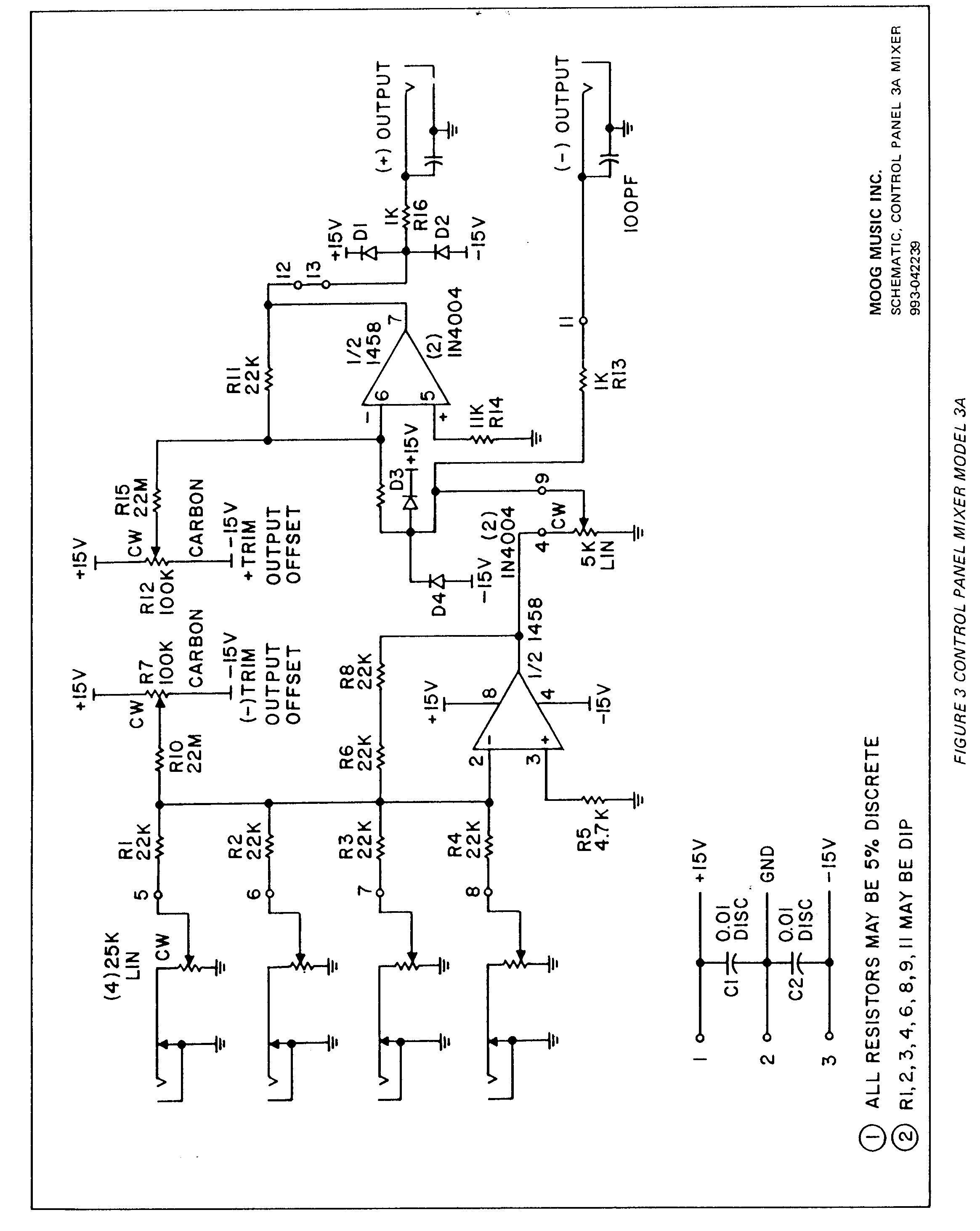

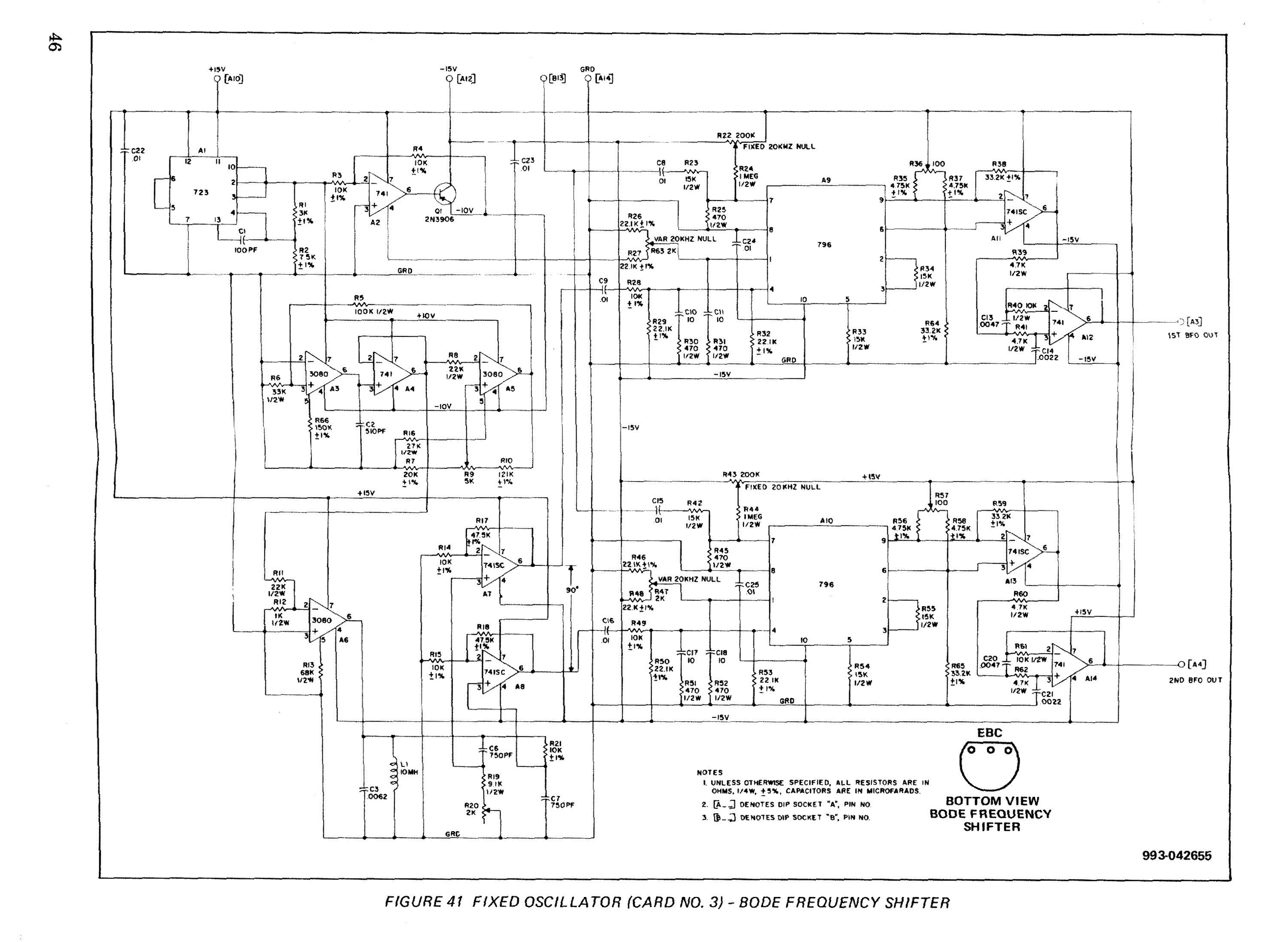

Moog Modular Service Manual
Multimoog DIY Modifications

VCF Modification

Contributor – Michael Caloroso

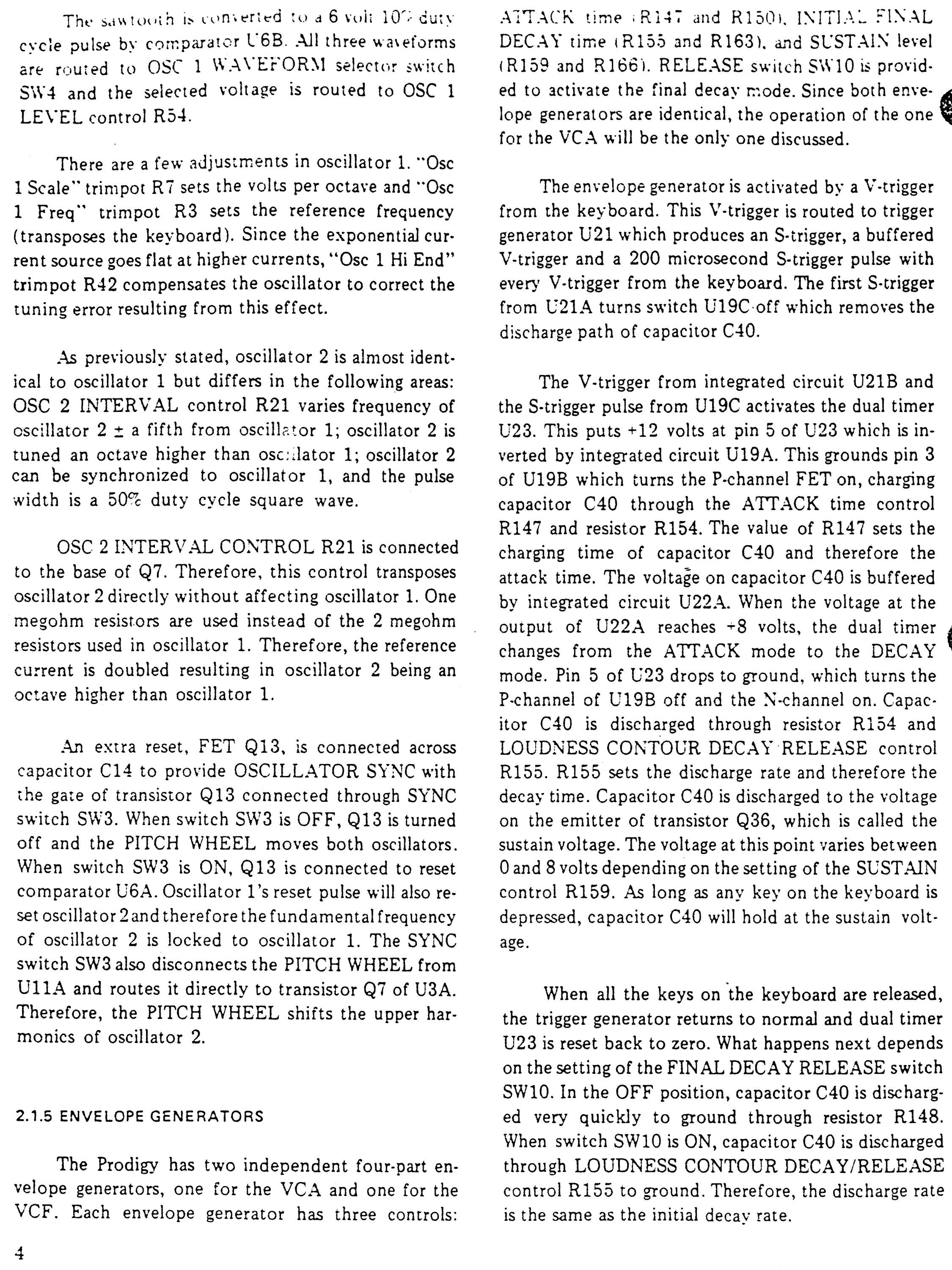

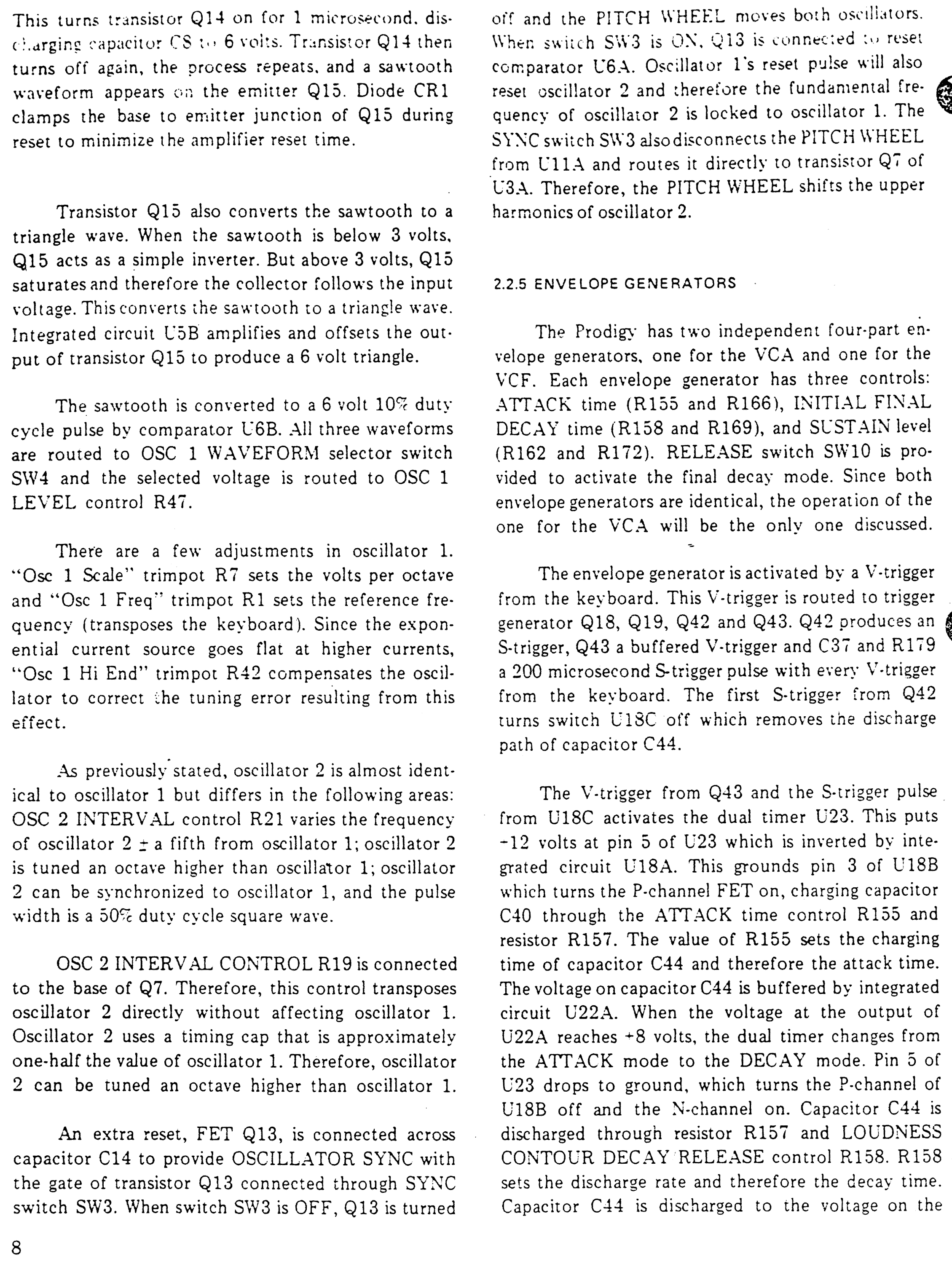

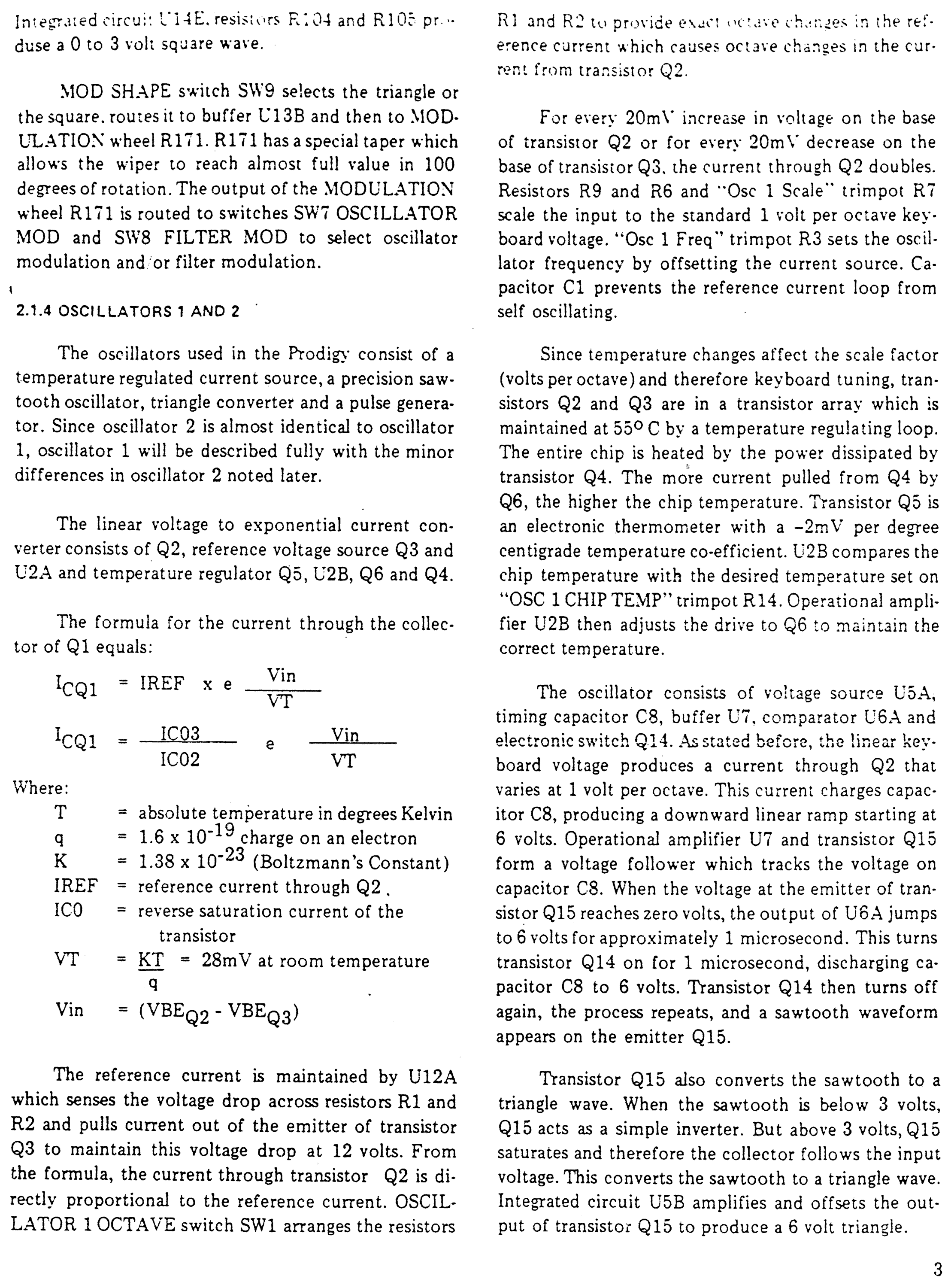

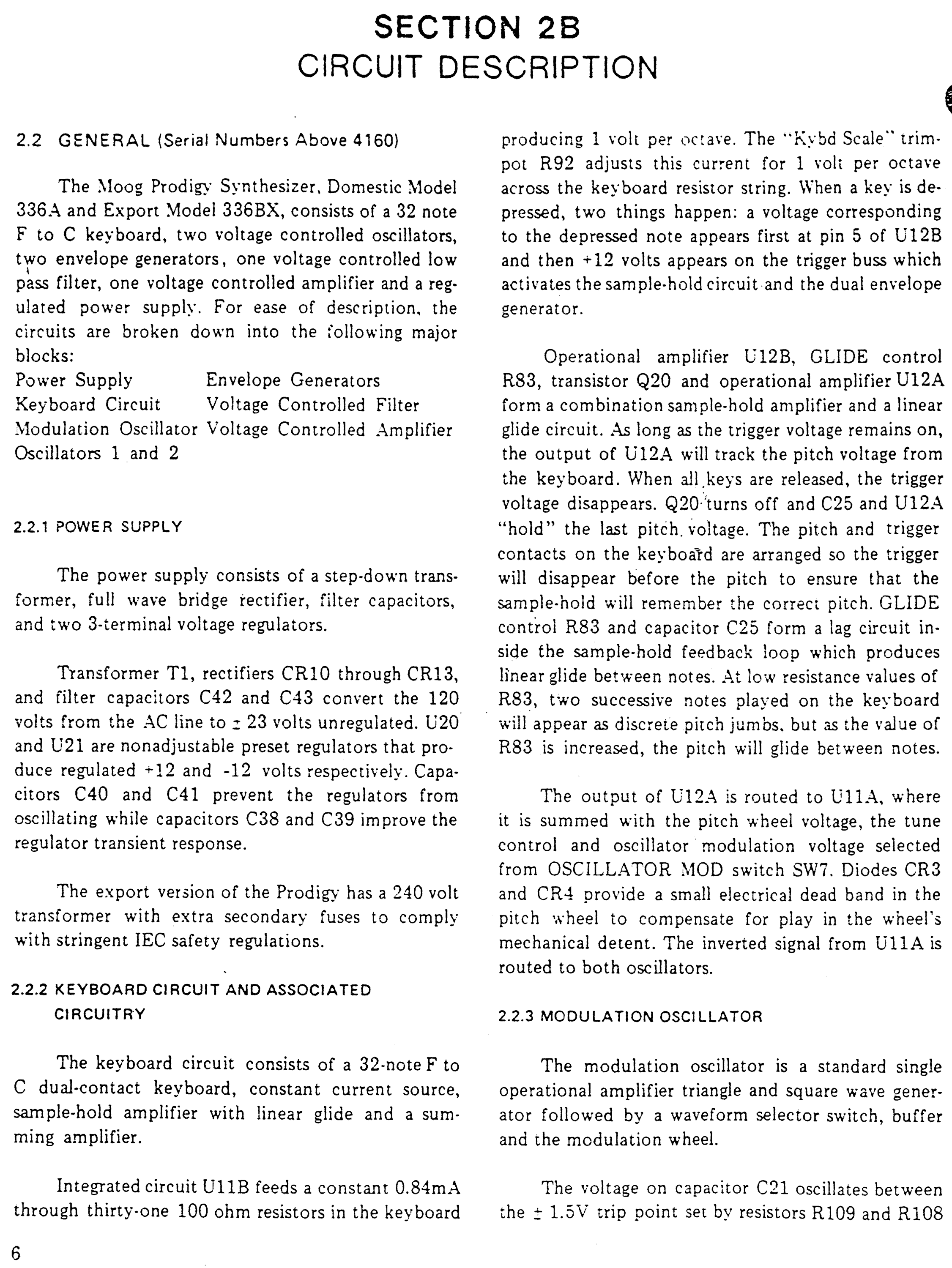

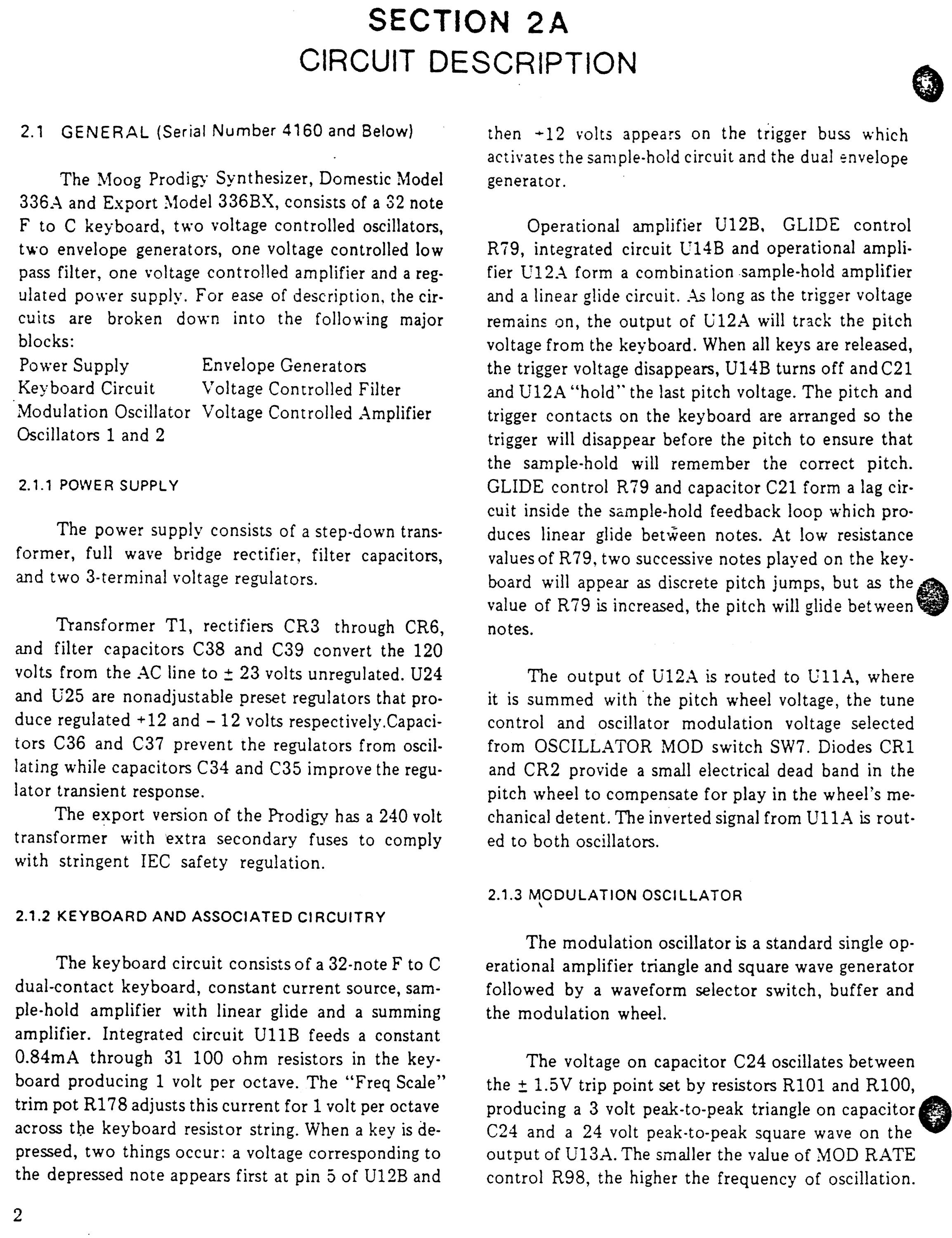

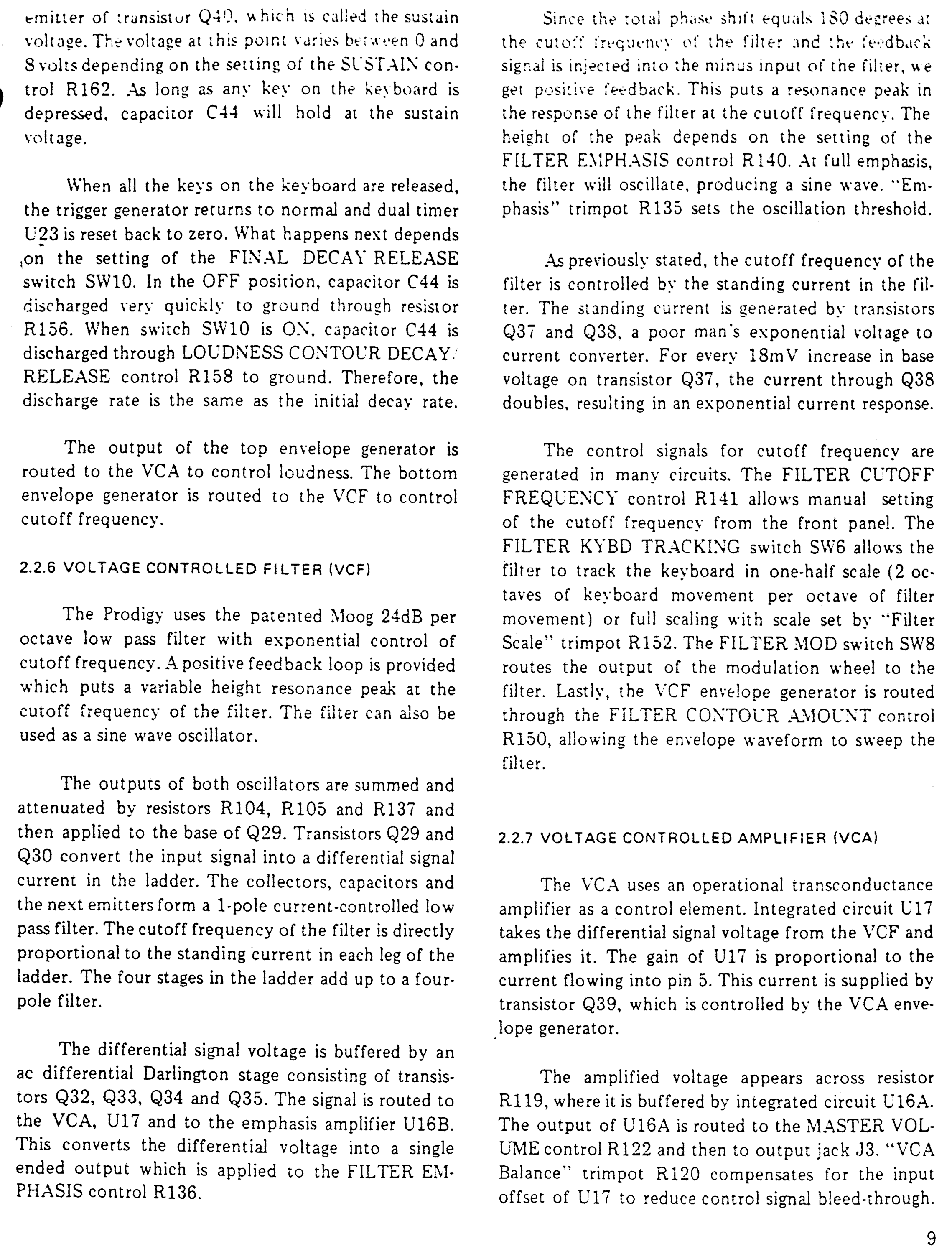

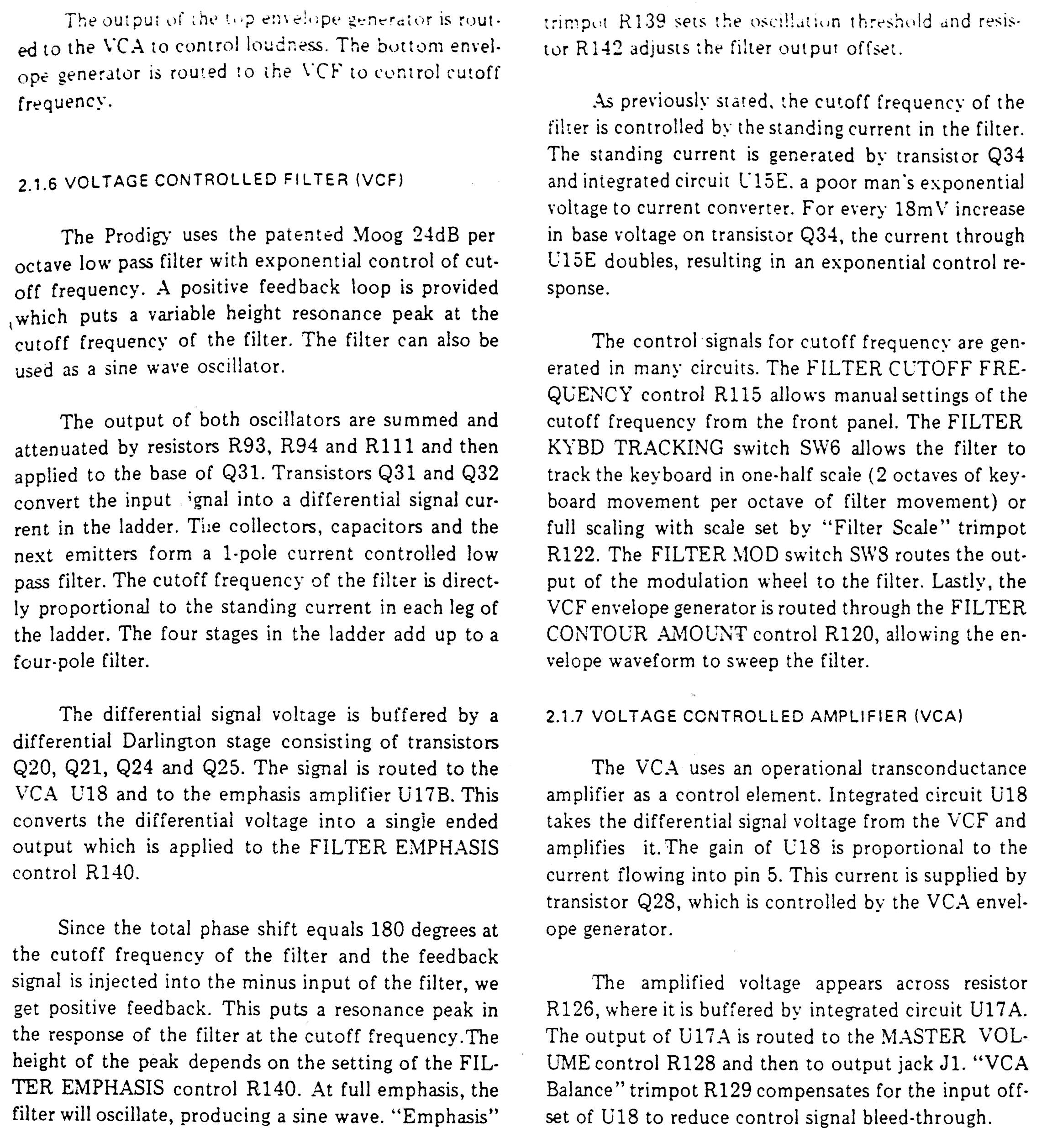

Moog Prodigy Service Manual

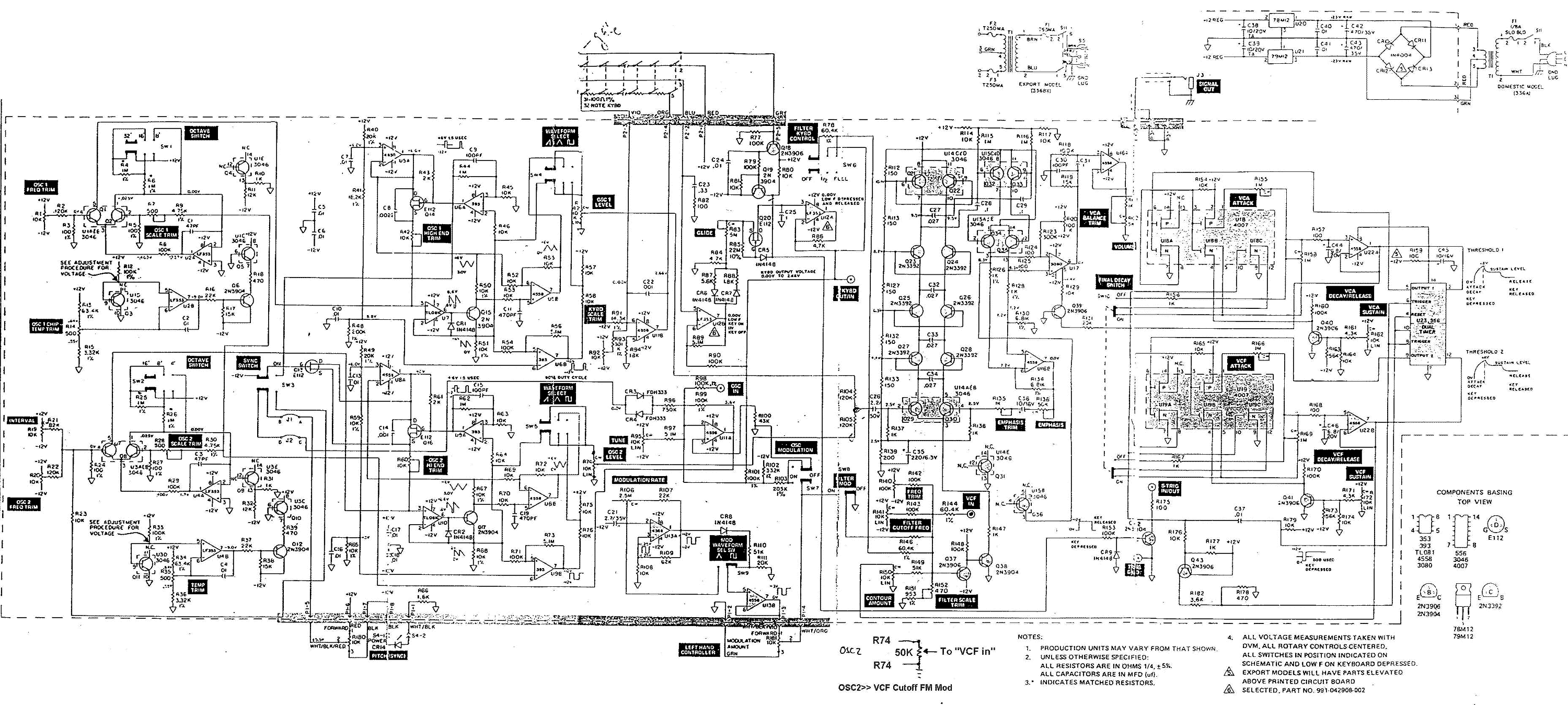

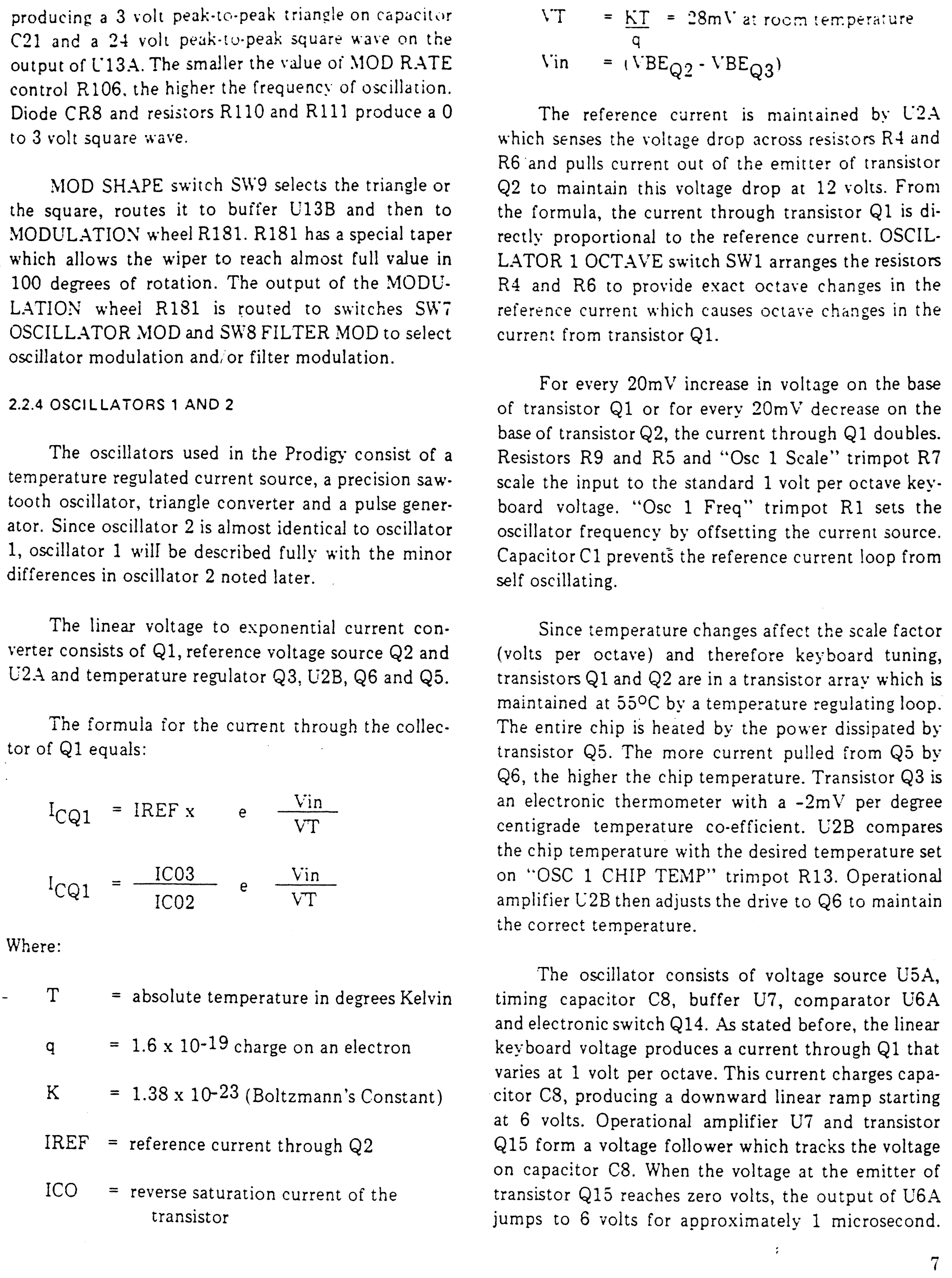

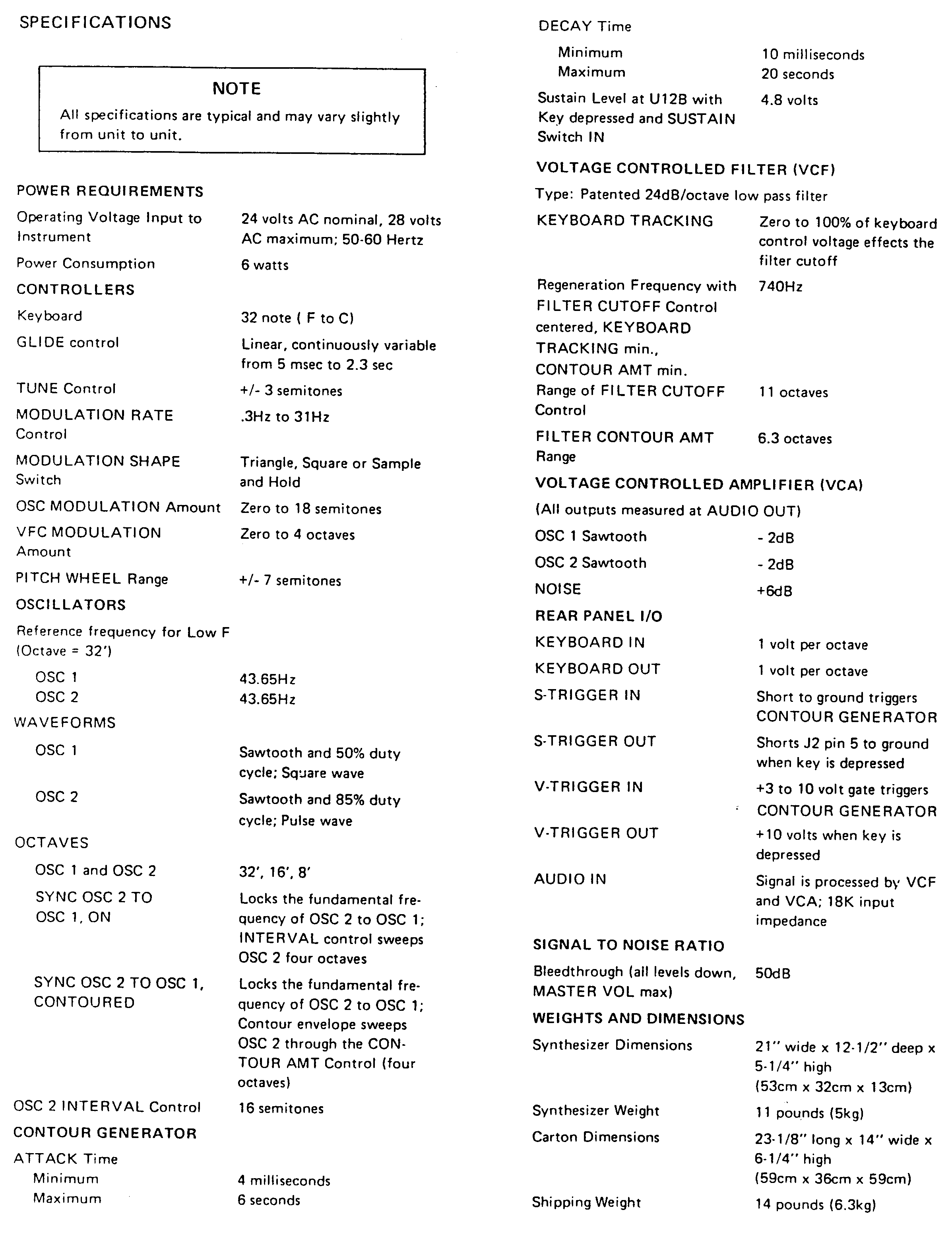

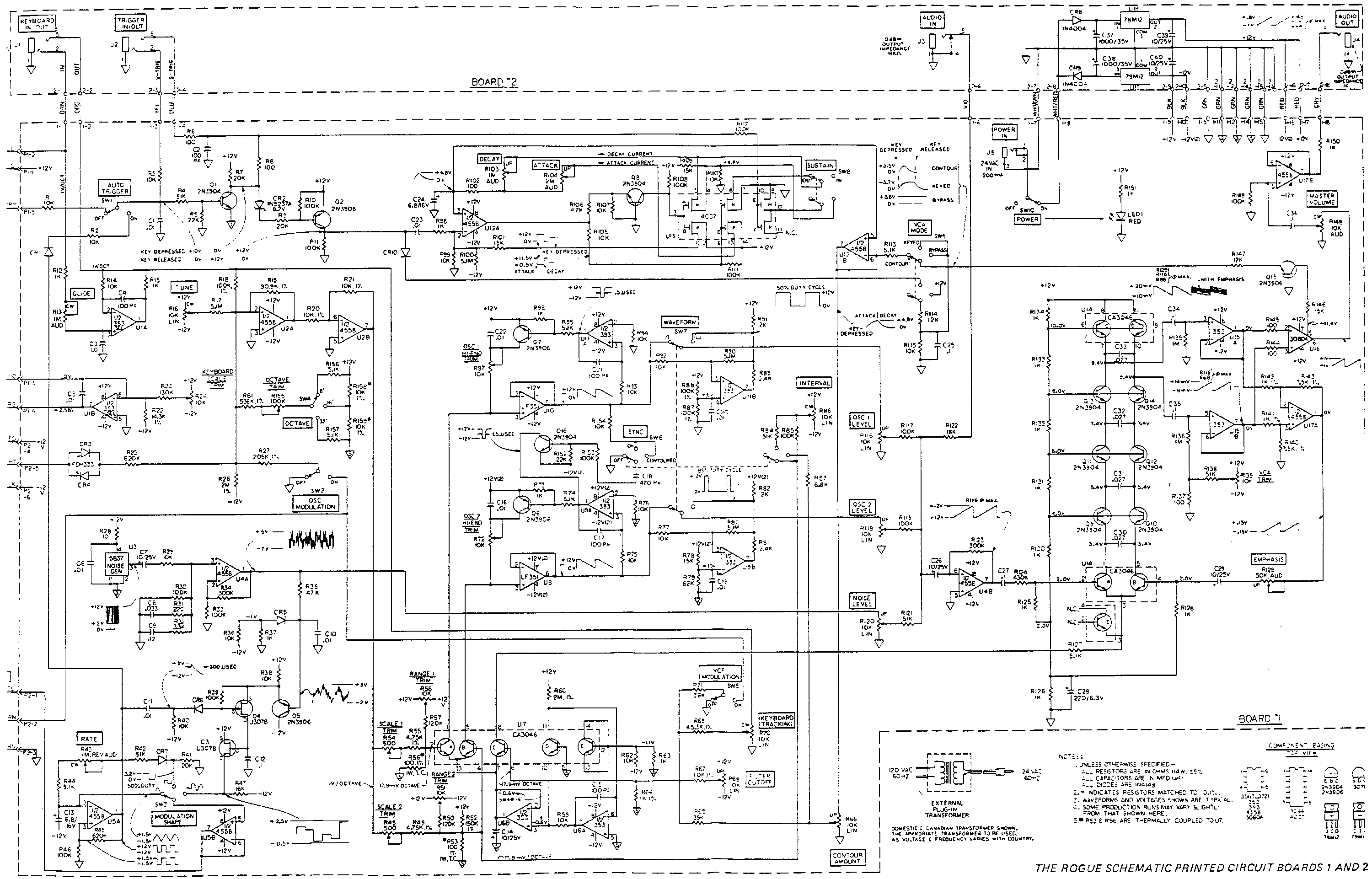

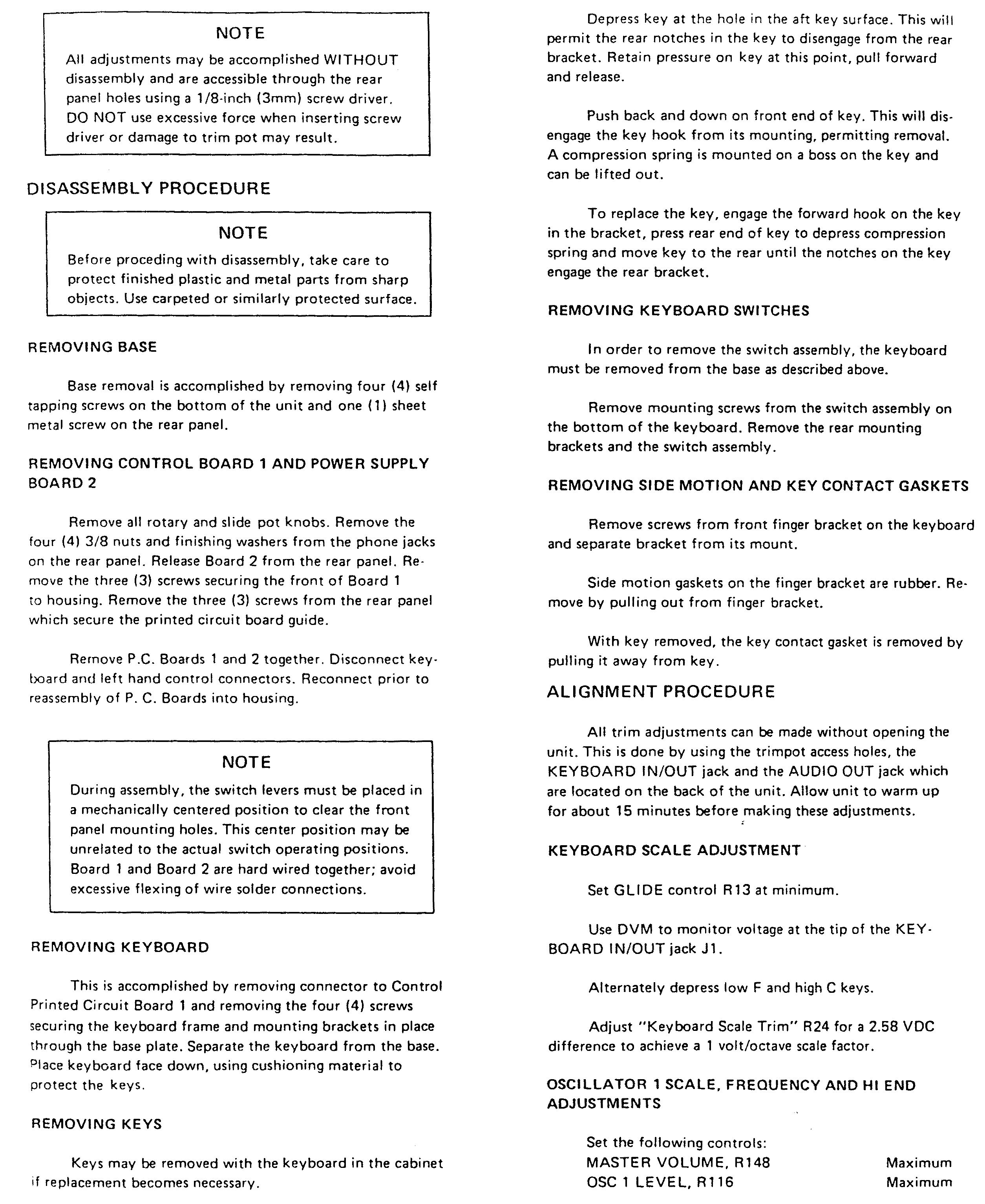

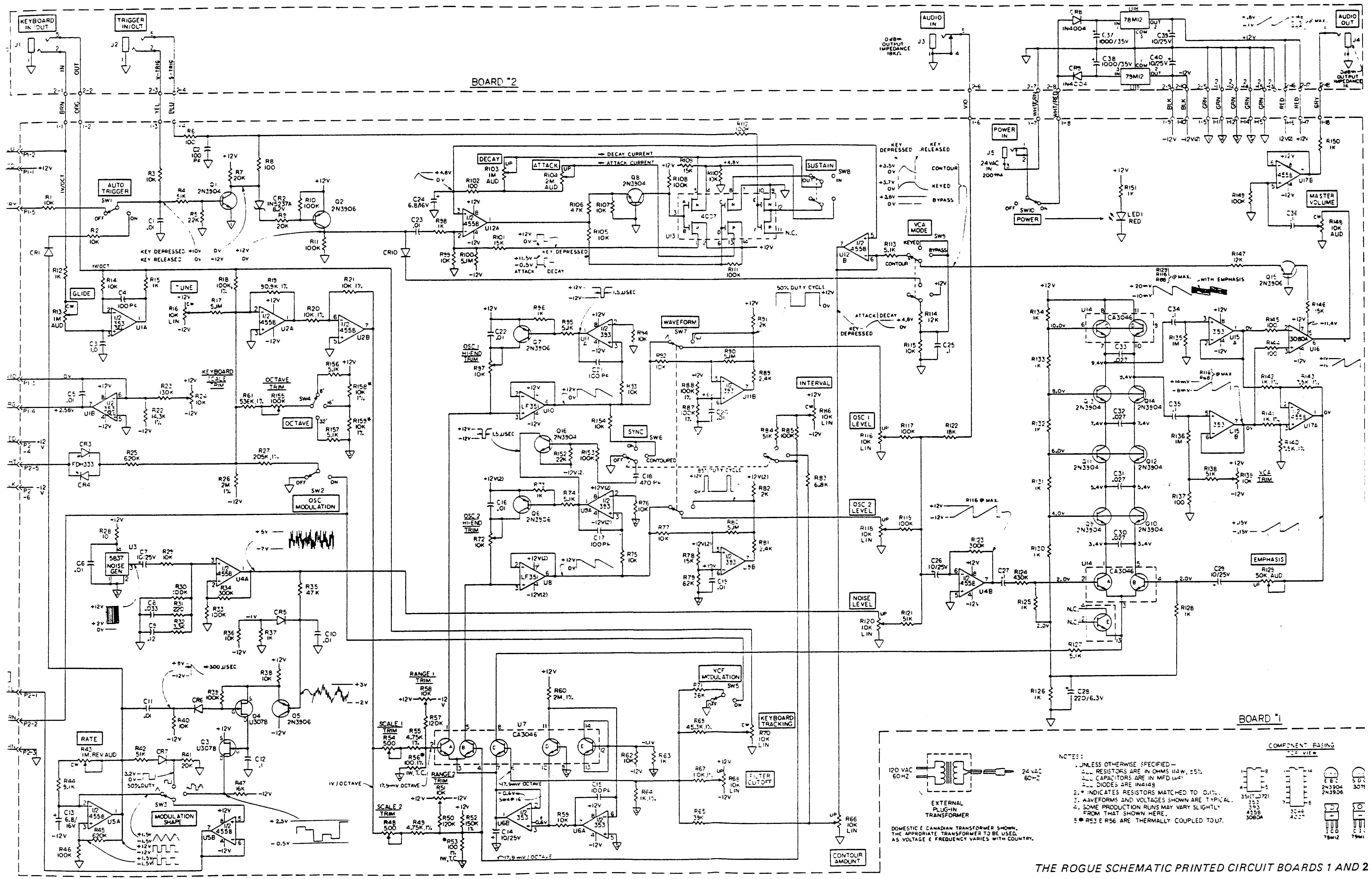

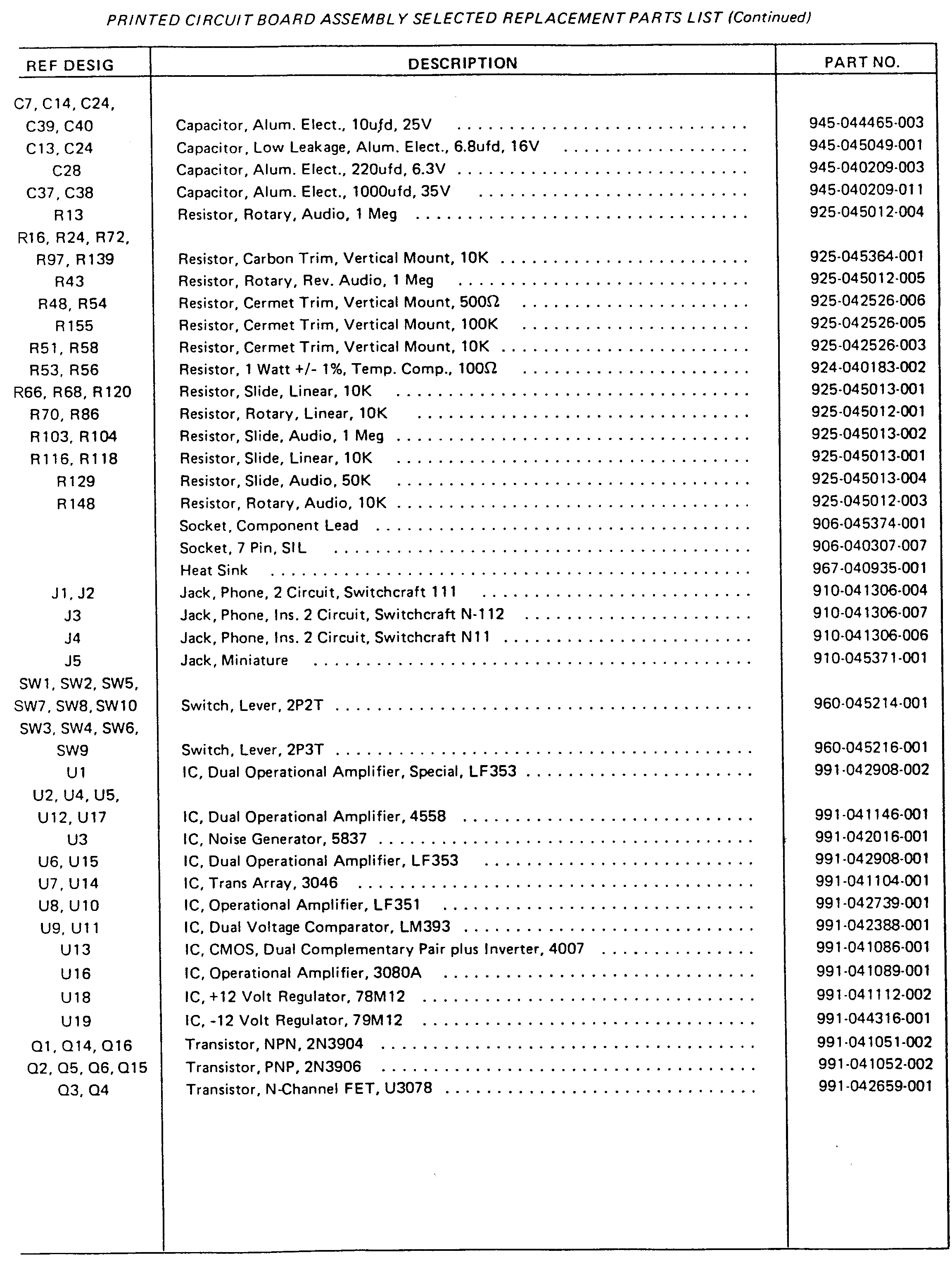

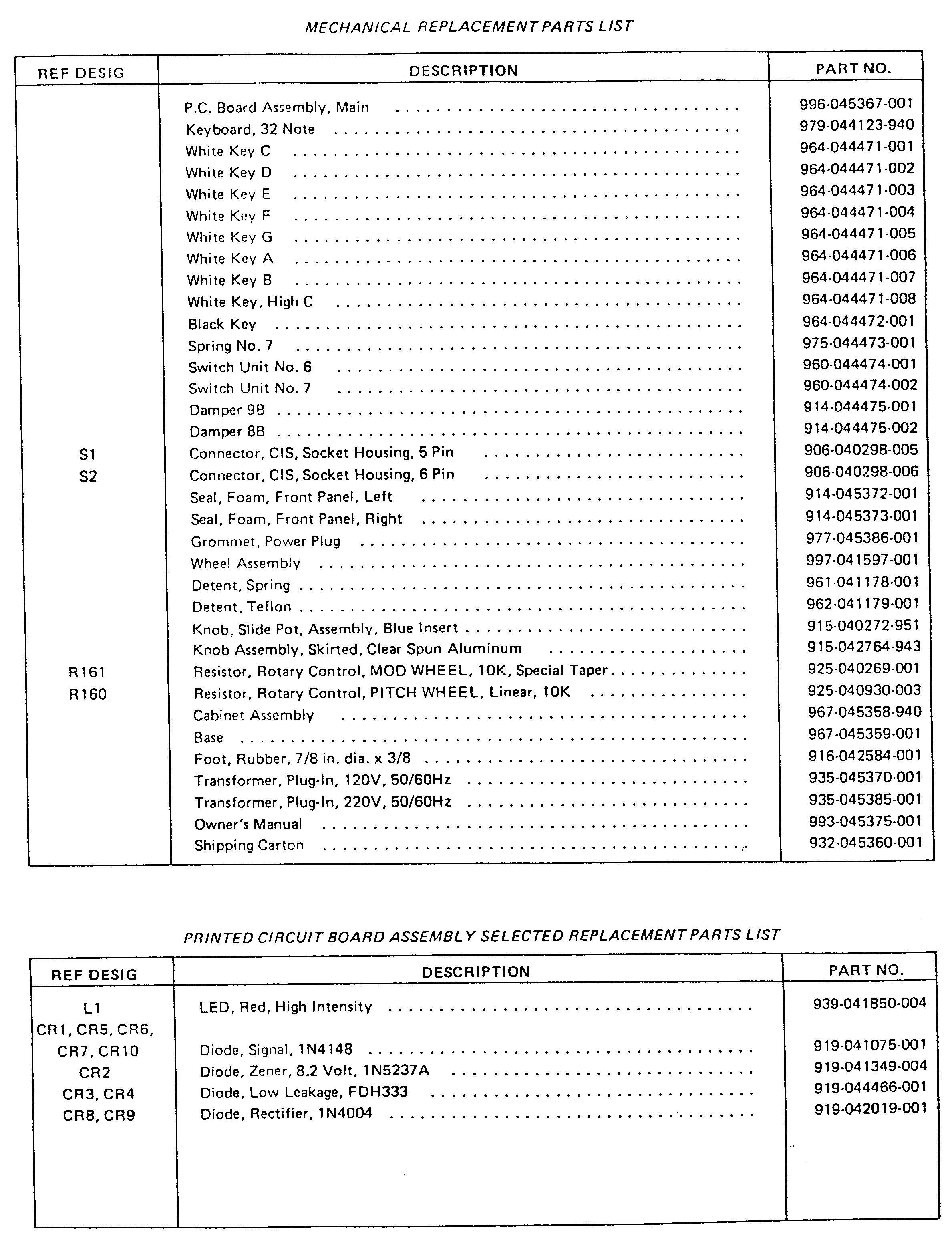

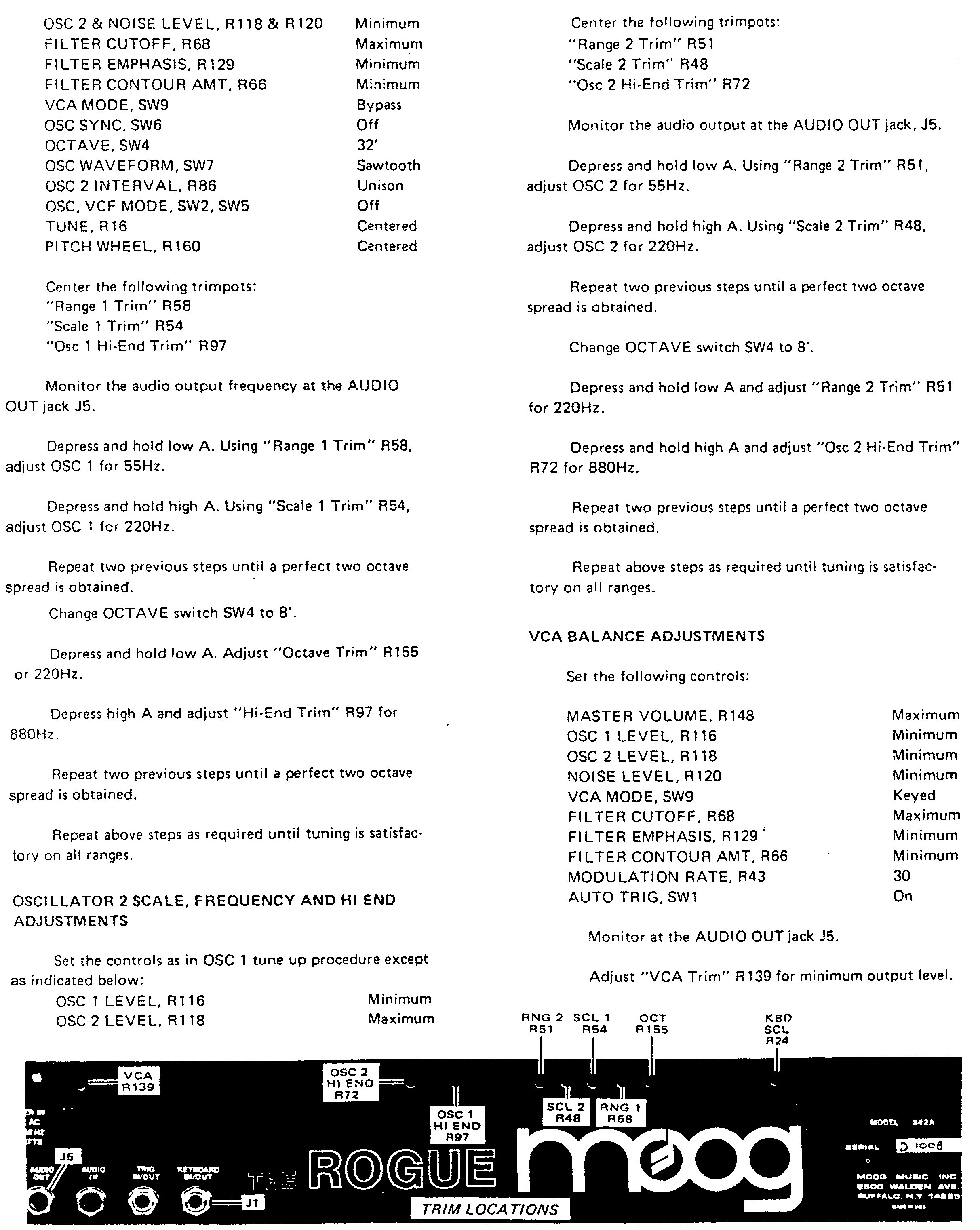

Moog Rogue Service Manual
Moog Source DIY Fixes

Octave power-up fix

Crazy Source fix

Contributors – Unknown

Sources – Analogue Heaven Archives

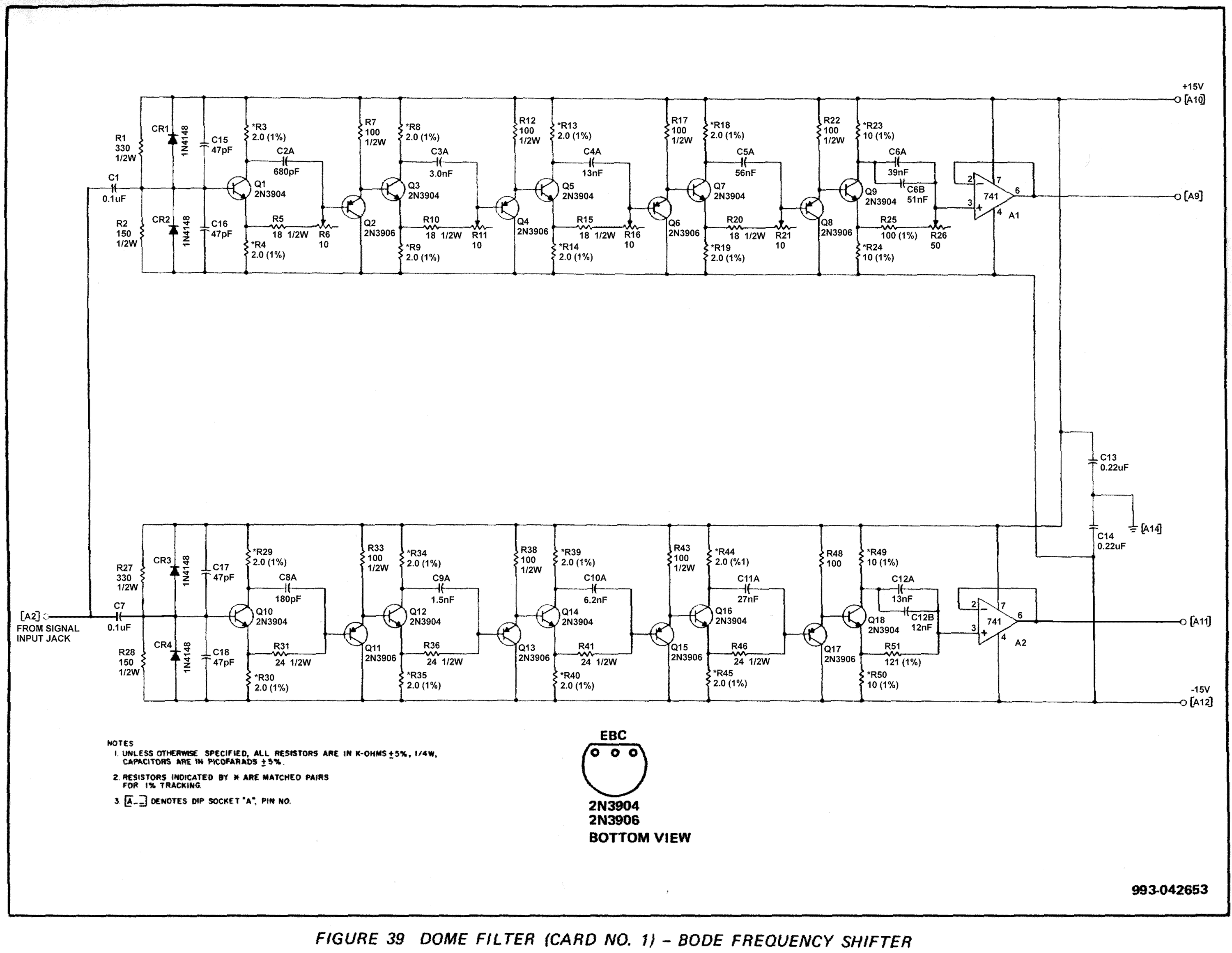

Moog Frequency Shifter schematics

Moog Stage Phaser schematics - Site updated (1/24/05)
