Teisco Manuals

This page contains user and service manuals to various Teisco products.

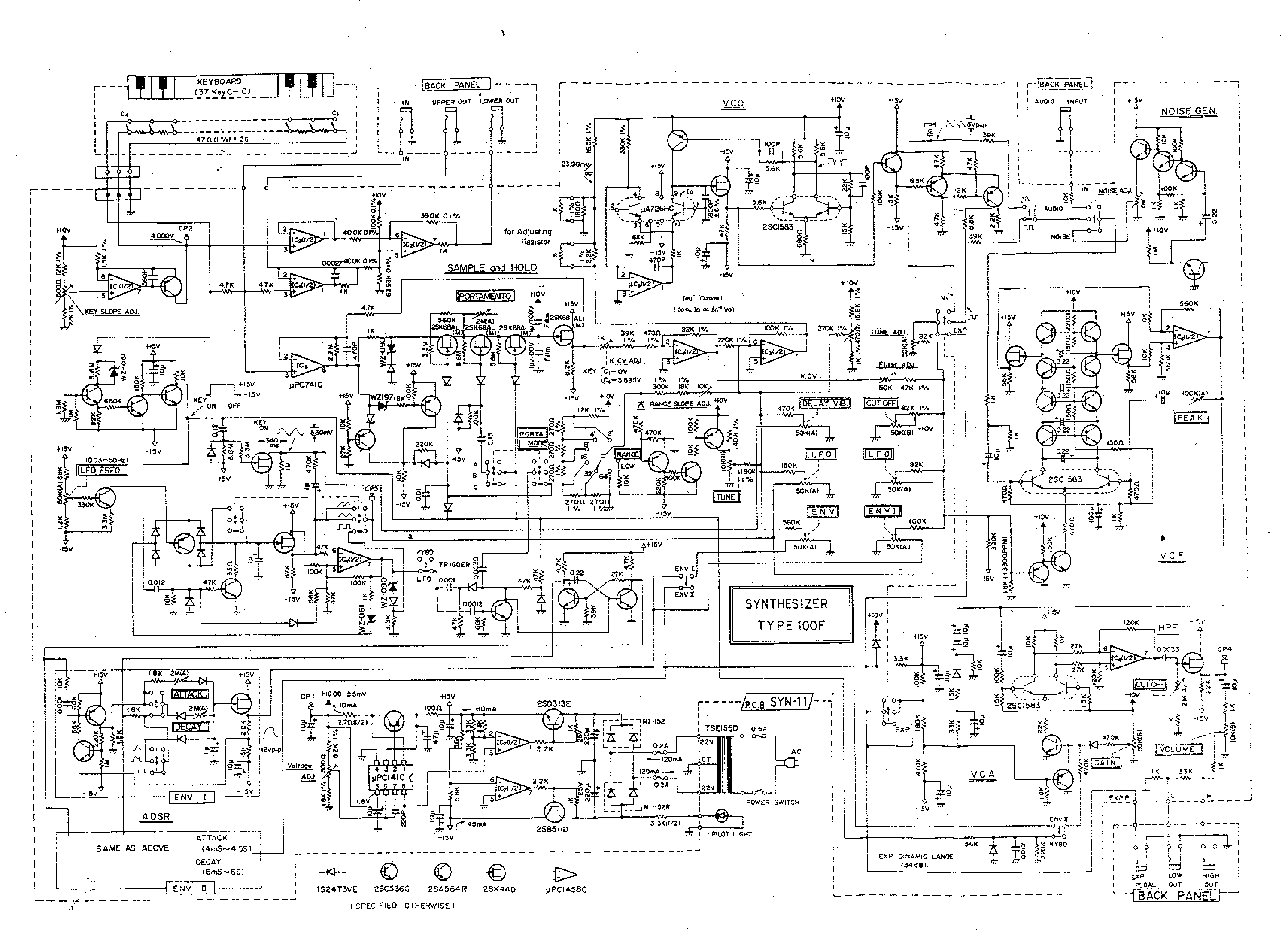

Teisco S-100F Schematic

Schematic

Contributor – Dragon Servicing

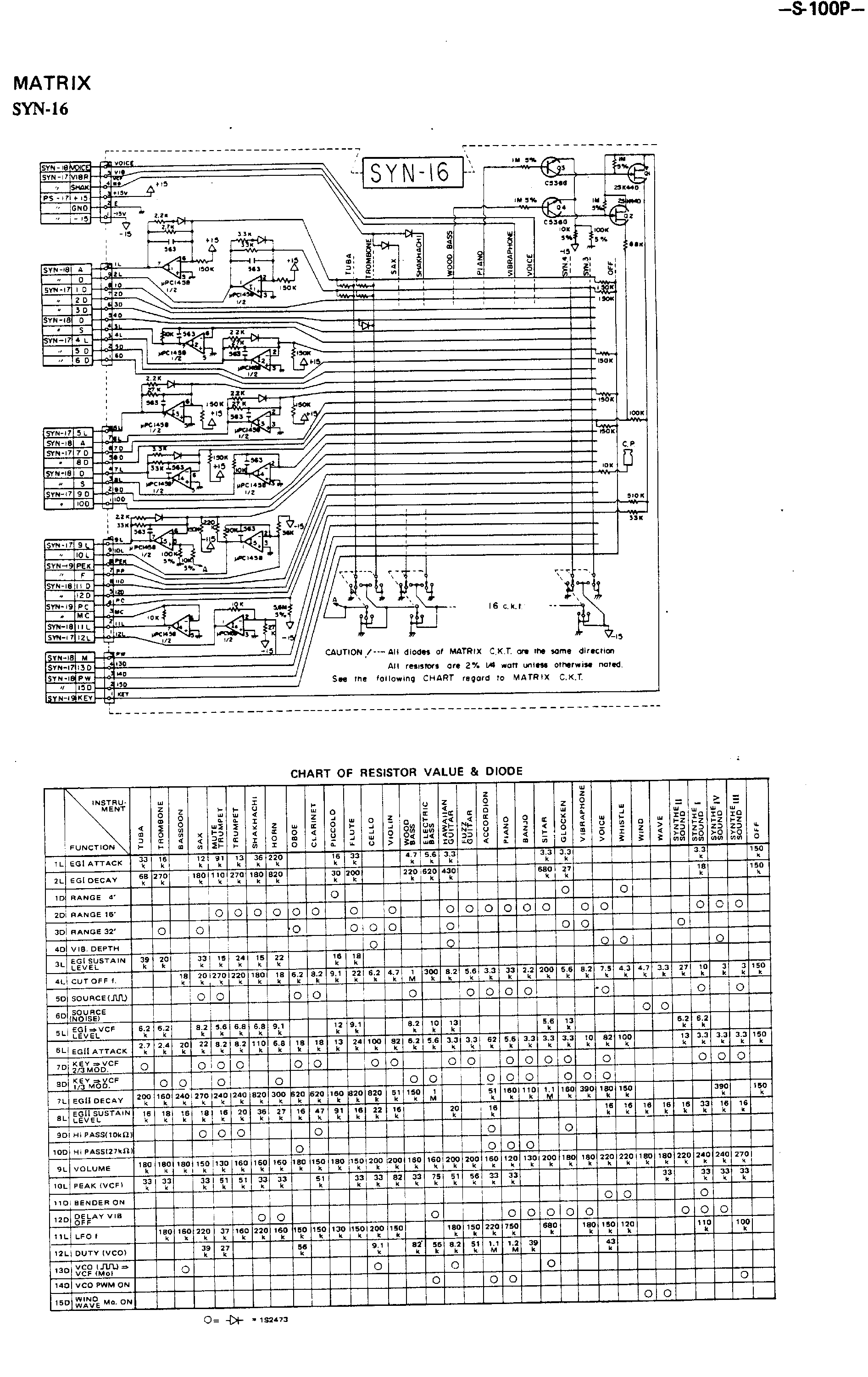

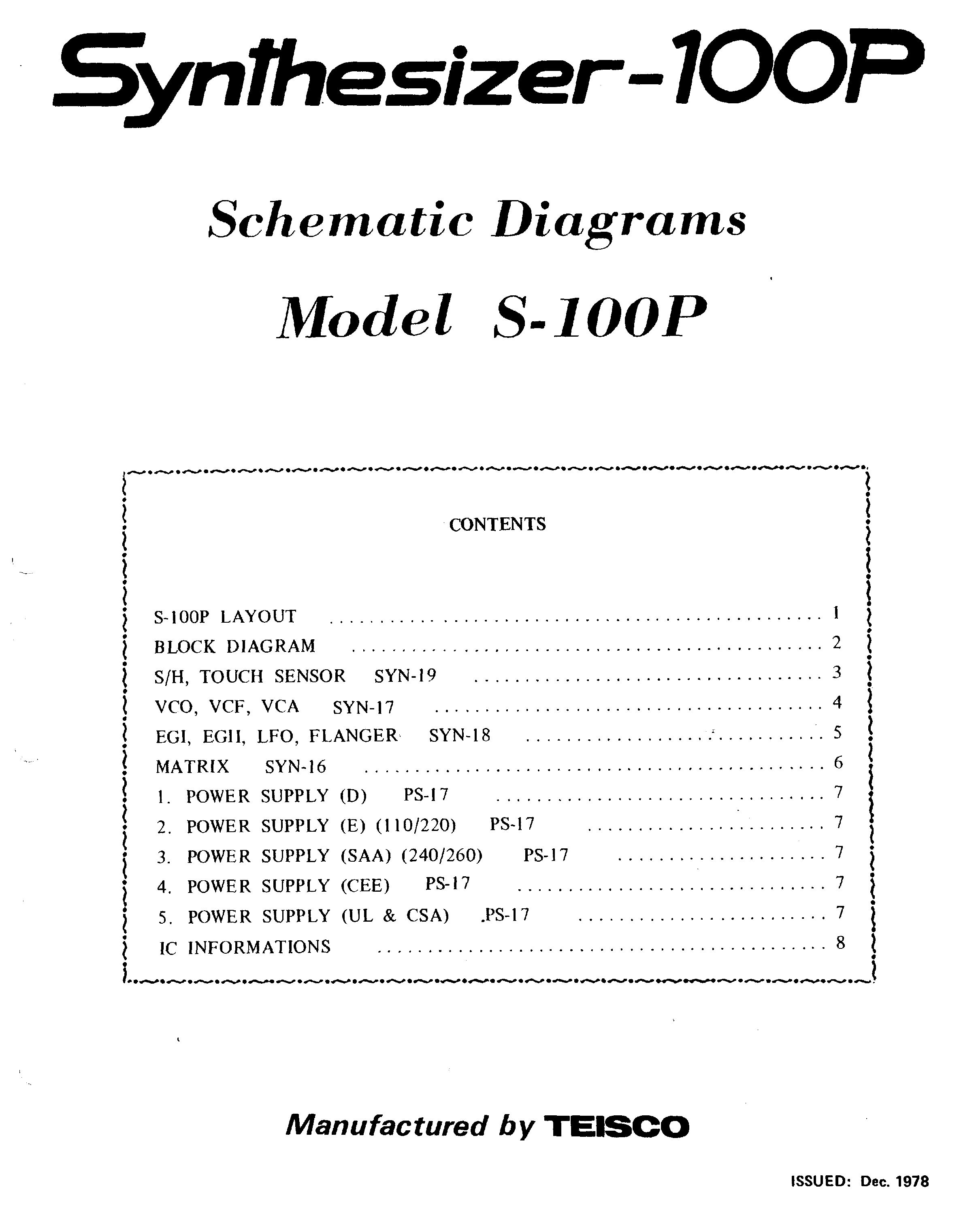

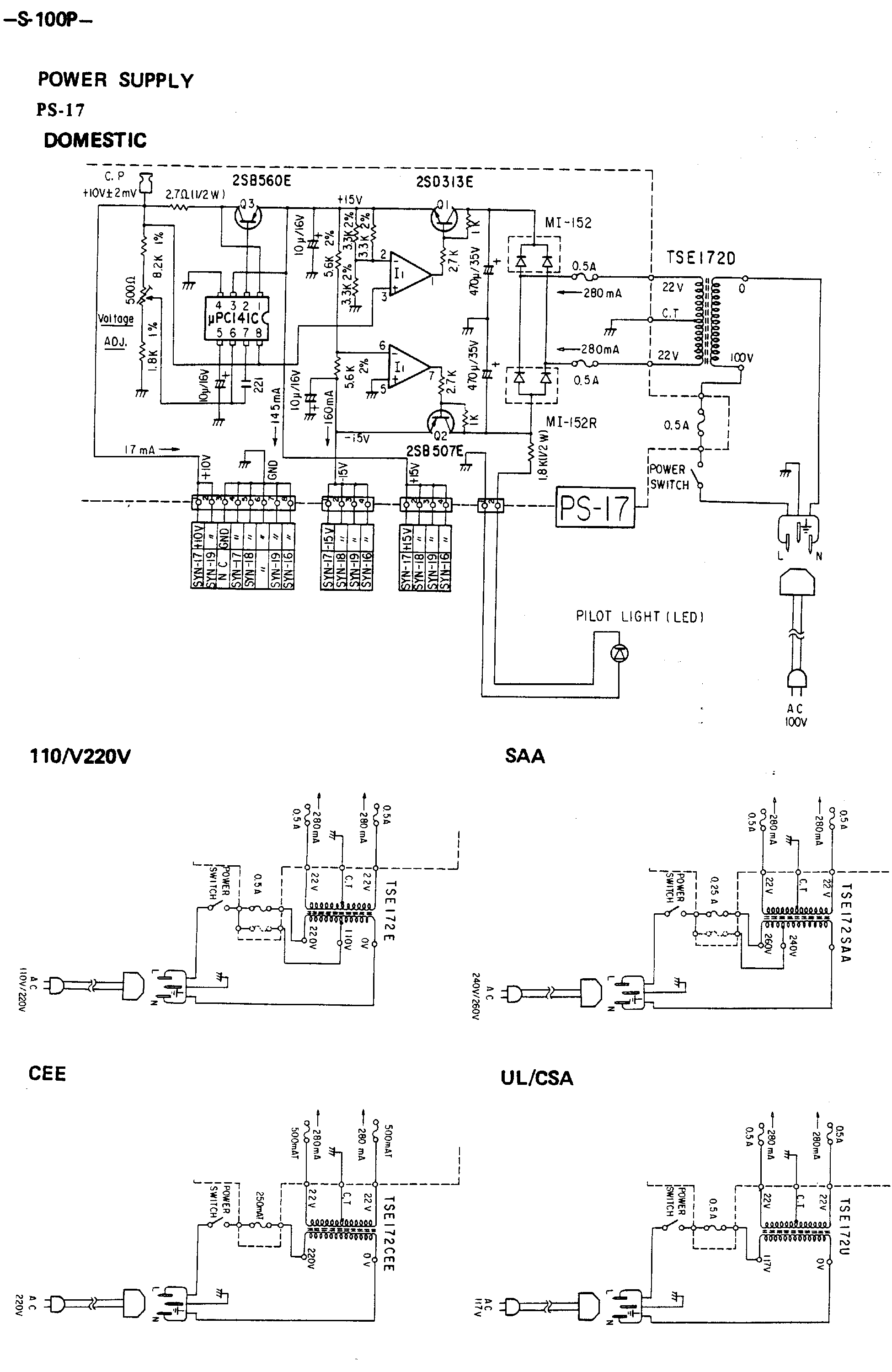

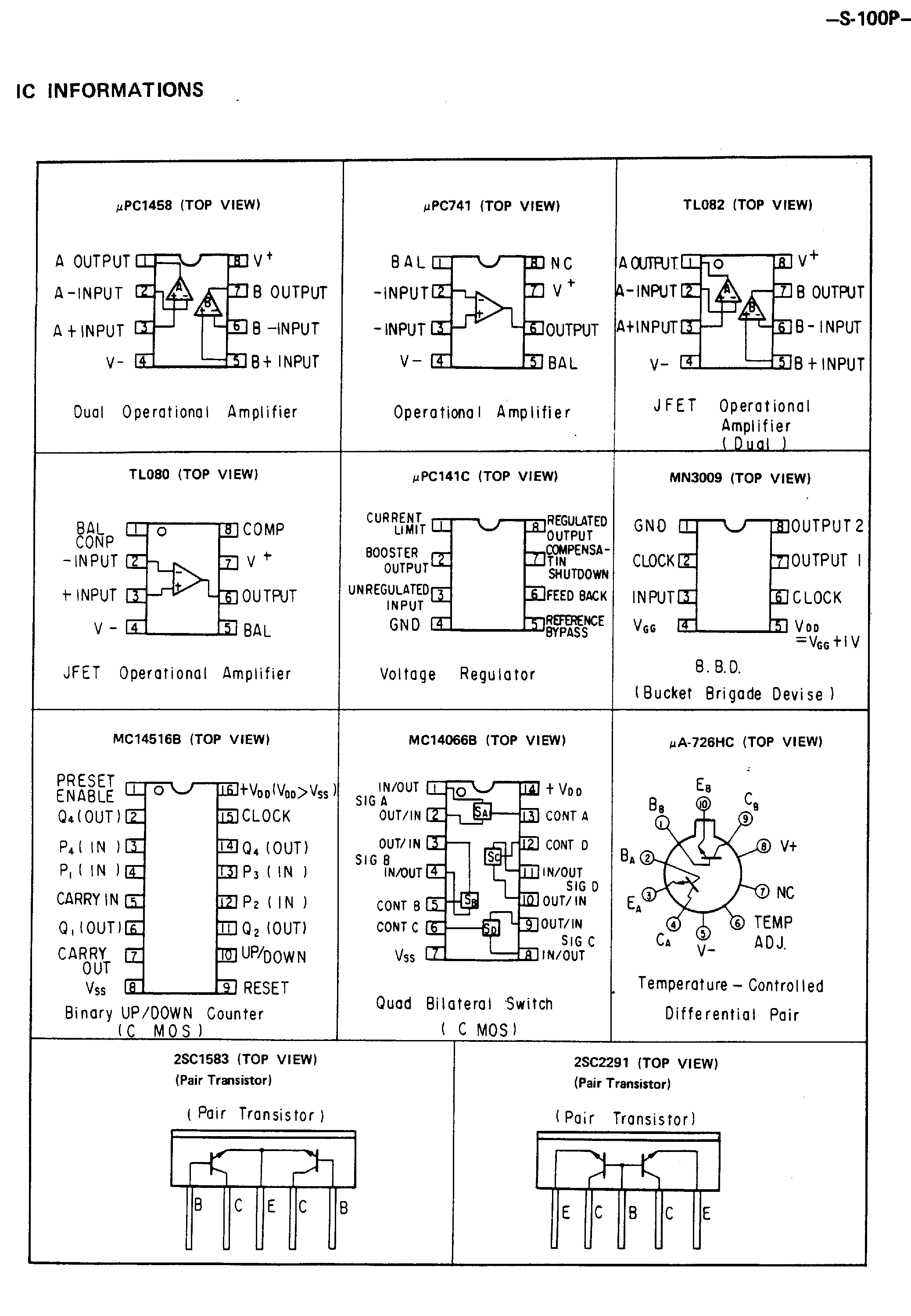

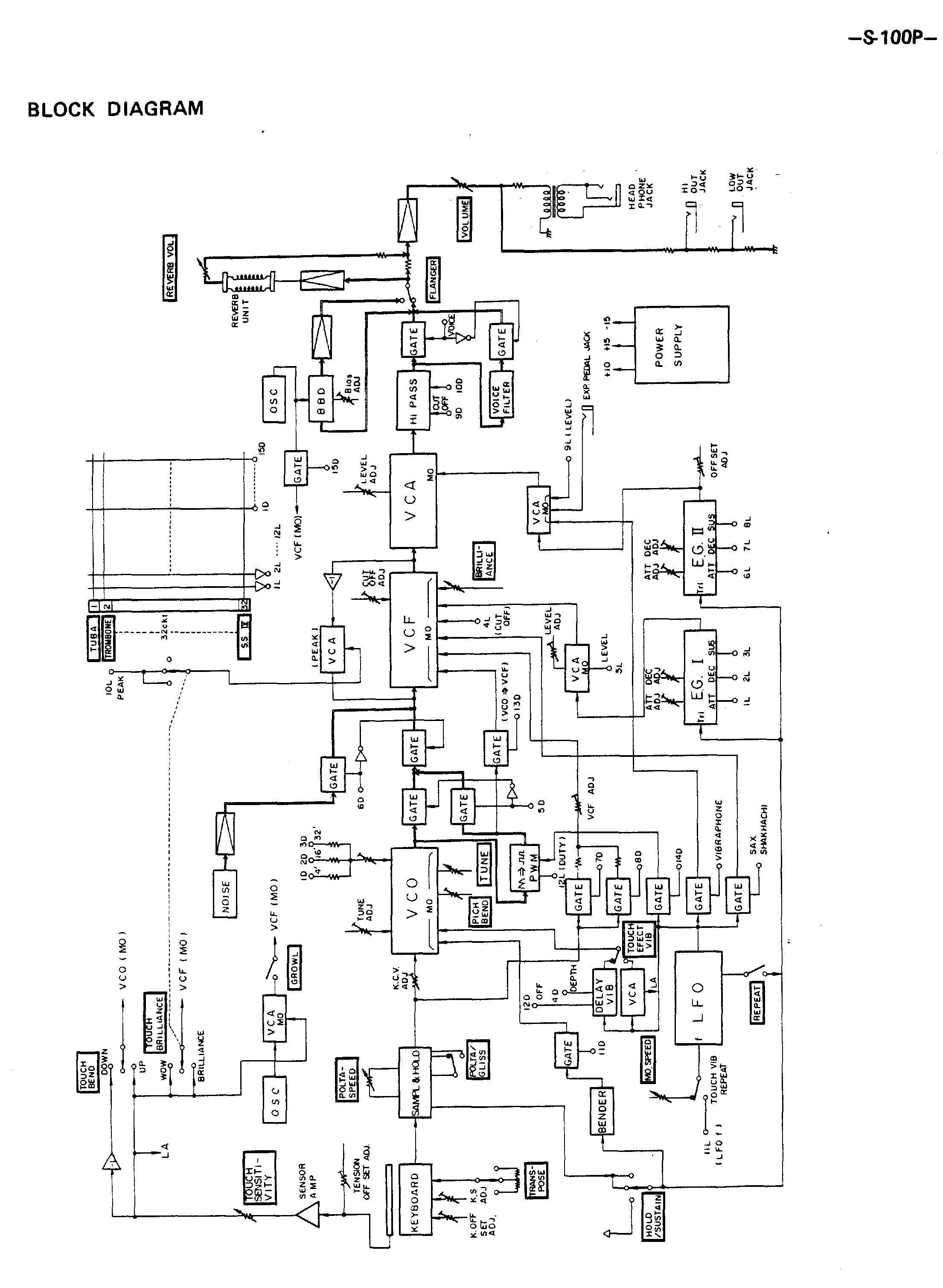

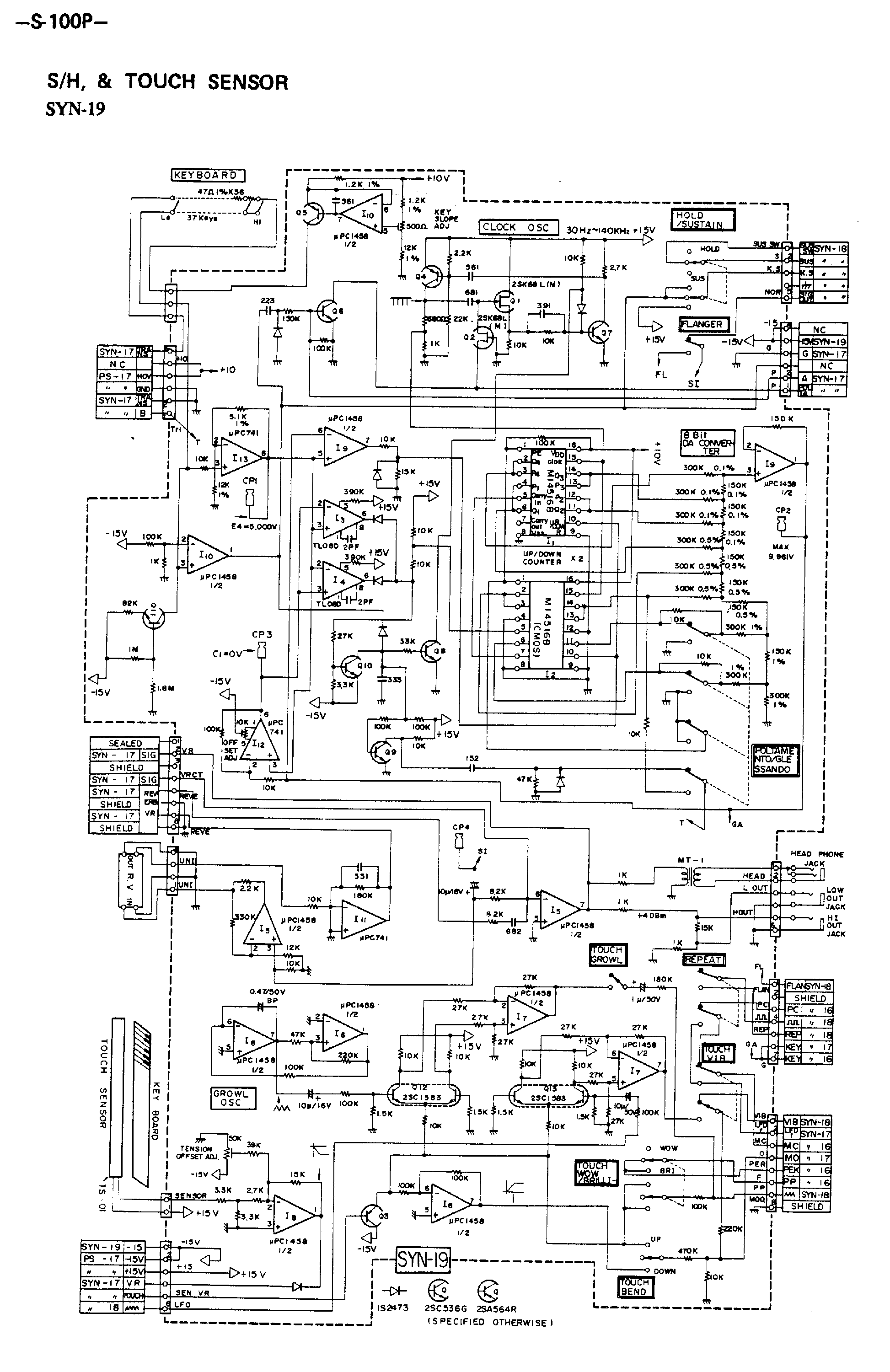

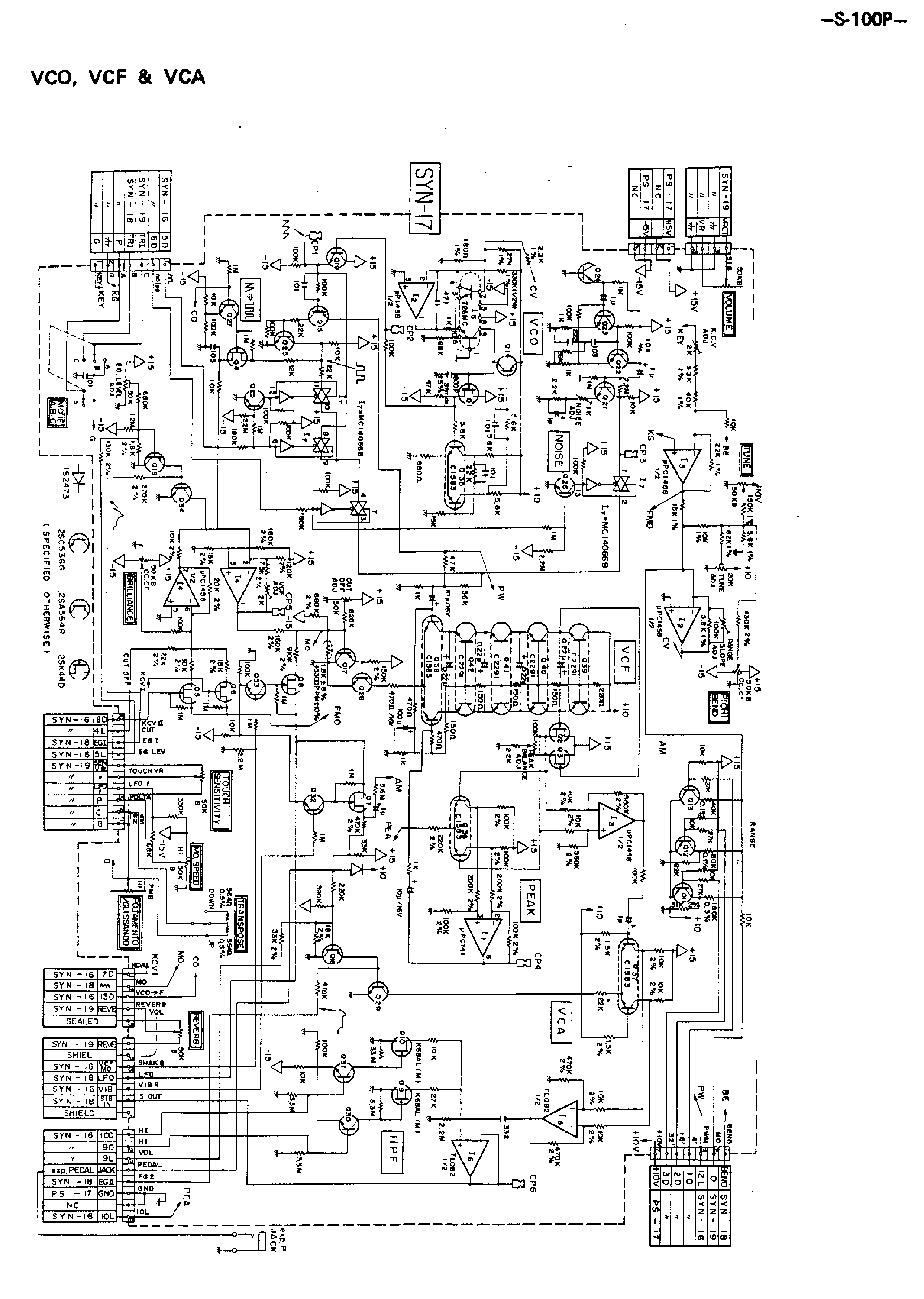

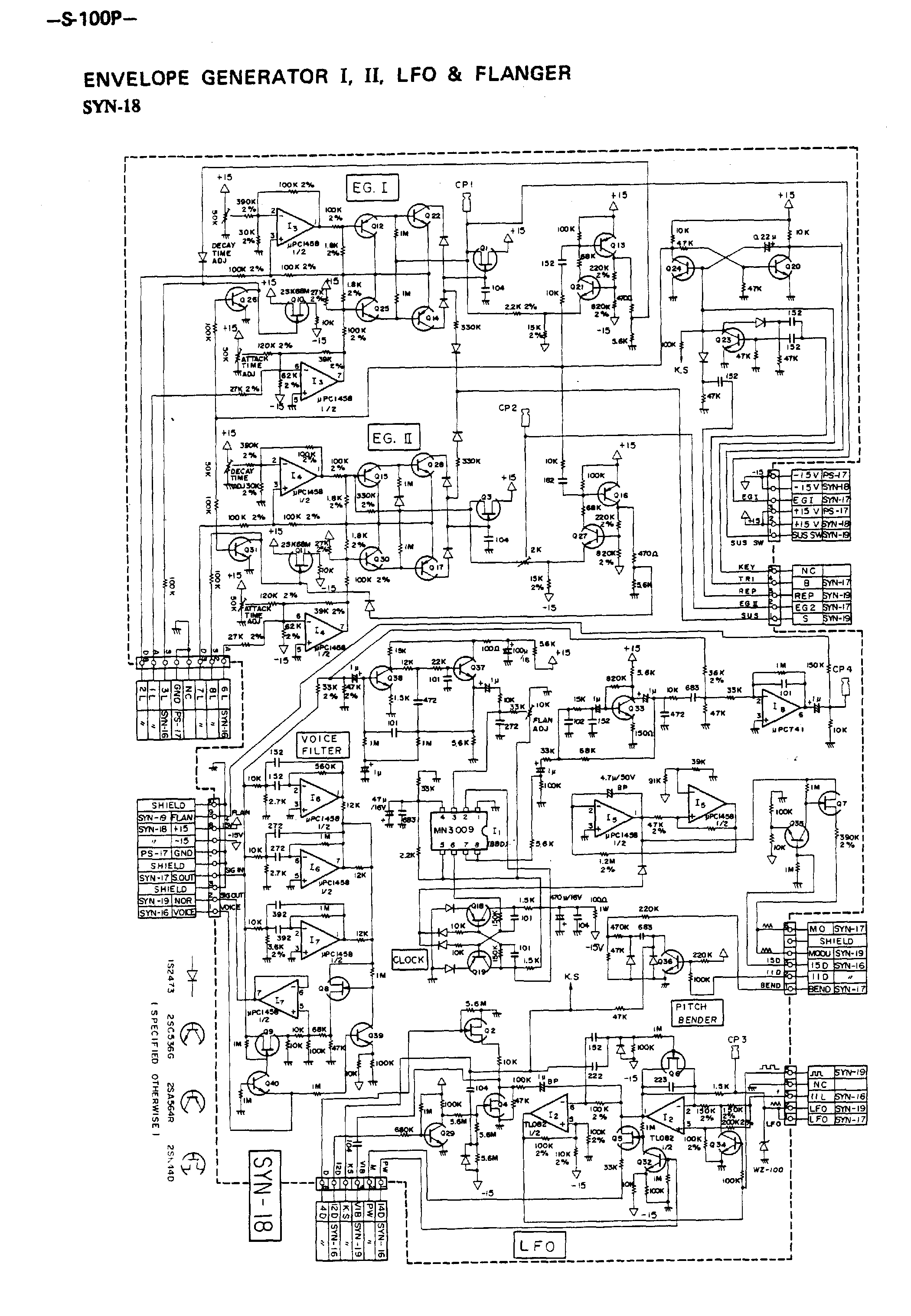

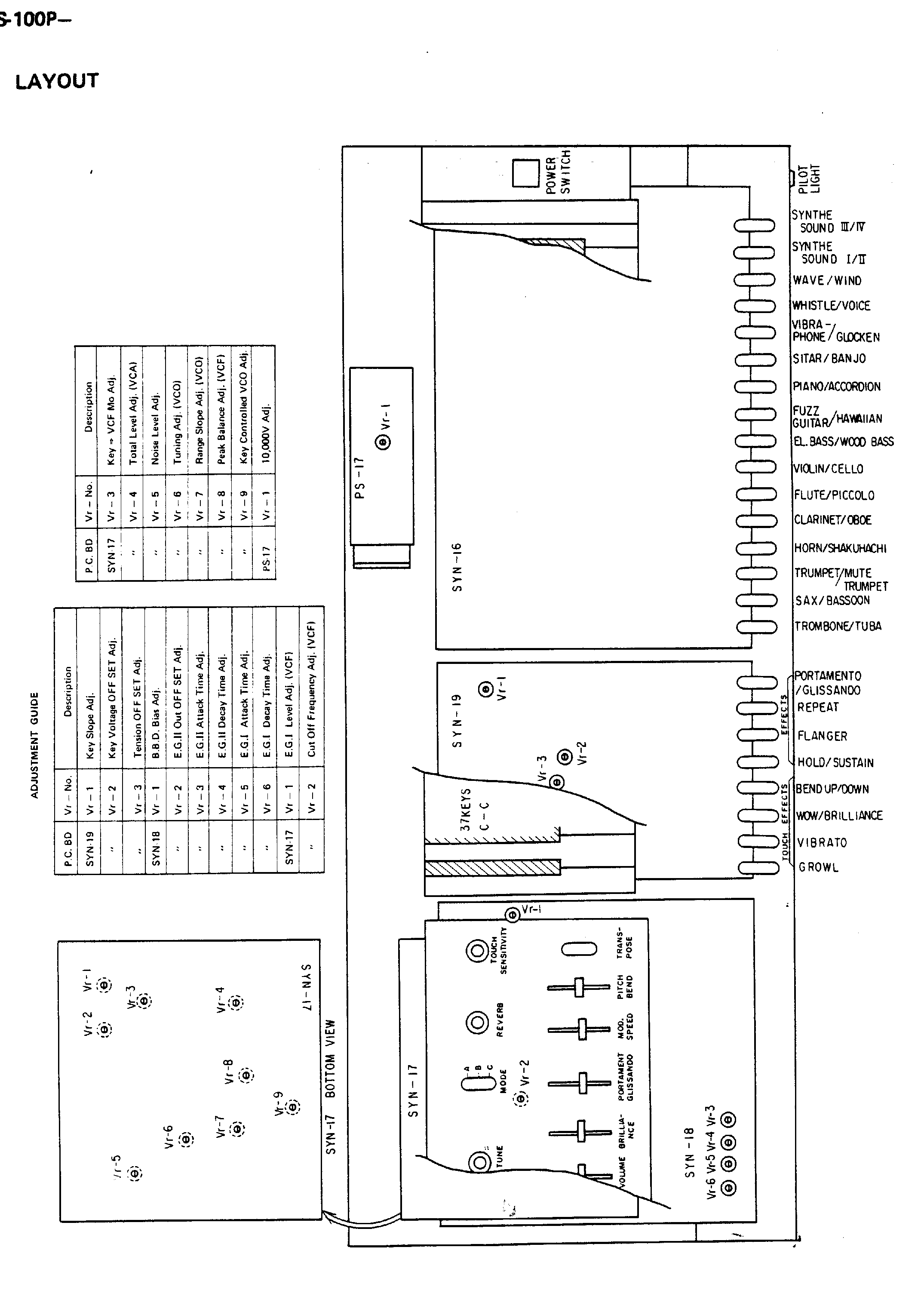

Teisco S-100P Service Manual
Page 1 Page 6
Page 2 Page 7
Page 3 Page 8
Page 4 Page 9
Page 5

Contributor – Unknown

Sander Meyer's Teisco Page

Thanks go out to the following people for their contributions to this page:

  • Dragon Servicing
